Part Number # 107B0200AP
SKU # 2391369
Image Disclaimers Message
107B0200AP

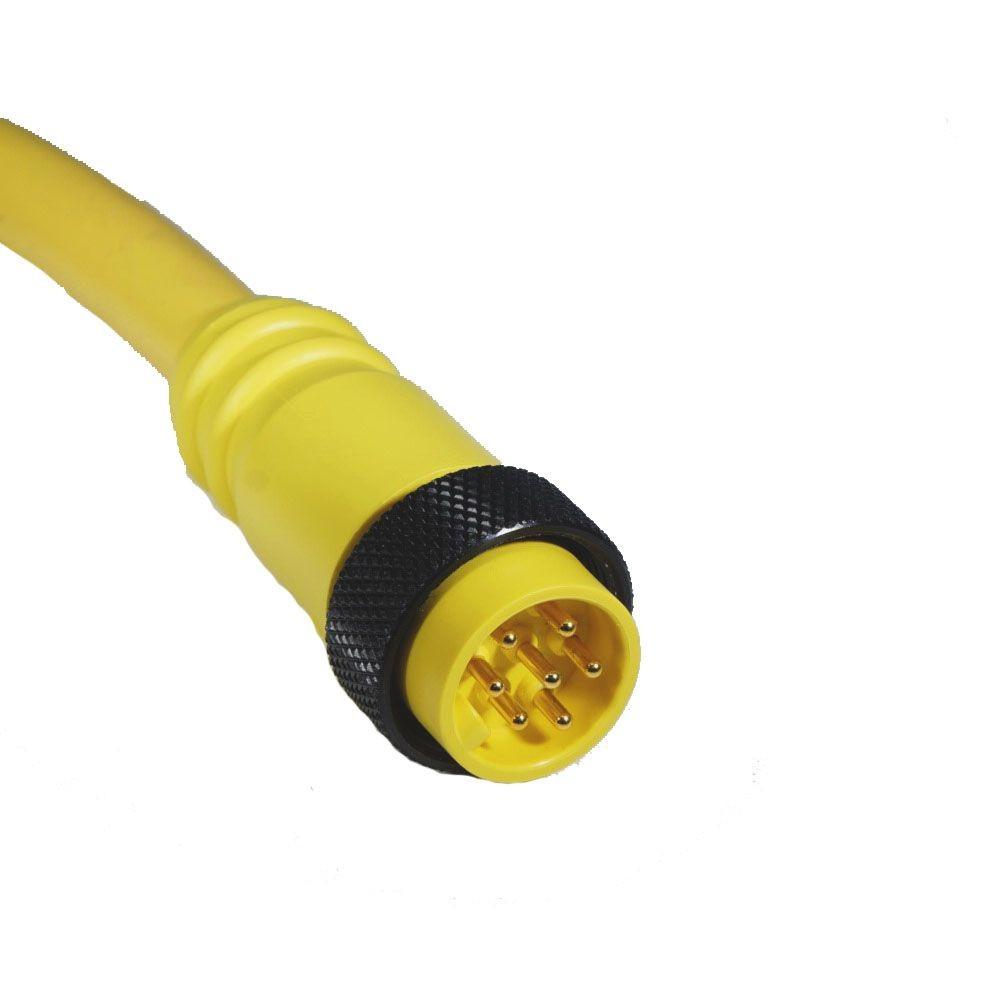

Remke 107B0200AP Mini-Link Tuff-Link Plug Assembly
Part Number # 107B0200AP
SKU # 2391369
$190.39 / Each
Typical price:$266.54 / Each
Remke 107B0200AP Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 107B0200AP |
| SKU #: | 2391369 |
| Amperage Rating: | 8 A |
| Cable Material: | PVC |
| Connector Type: | Straight Male |
| IEC Rating: | IP68 |
| NEMA Rating: | NEMA 6P |
| Number of Poles: | 7 |
| Wire Pin Colors: | Black/Blue/Green/Orange/Red/White/White-Black Tracer |
| Cable length: | 20 ft |
| Cable type: | Stranded/STOW |
| Country of origin: | US |
| Manufacturer Name: | NSi Industries |
| UNSPSC: | 32151904 |
| UPC: | 00785411030135 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$190.39 / Each
Typical price:$266.54 / Each
Quantity:
- Remke Mini-Link Tuff-Link Plug Assembly, Straight Male Connector, Stranded/STOW Cable, 20 ft Cable Length, PVC Cable, 7 Poles, 600 V AC/DC, 8 A, Wire Pin Colors: Black/Blue/Green/Orange/Red/White/White-Black Tracer, IP68 IEC Rating, NEMA 6P
107B0200AP Application
Sensors on Conveyors, Automated Assembly Equipment, Packaging Equipment, Robotics Equipment, Bus Systems and Transportation Equipment Applications107B0200AP Item Features
- Nickel coated then gold plated contacts for enhanced corrosion resistance and conductivity
- Pins and contacts crimped on to wires assuring secure terminations
- Precision machined contacts for highly accurate tolerances
- Integral strain relief and plated coupling nuts
- PVC which is best for general assembly applications
- These connectors are ideally suited for applications where flexibility and resistance to stress, abuse or harsh environments is important
107B0200AP Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|UL Listed|CSA Approved|SAE/IEC SpecifiedSKU #2391369Part Number #107B0200APUNSPSC32151904UPC00785411030135
