Part Number # 304C0164H
SKU # 2276417
304C0164H
Remke 304C0164H Micro-Link Tuff-Link Plug Assembly
Part Number # 304C0164H
SKU # 2276417
Remke 304C0164H Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 304C0164H |
| SKU #: | 2276417 |
| Connector Size: | M12 |
| Keyway: | Single Key |
| NEMA Rating: | NEMA 6P |
| Type: | Braided |
| Wire Pin Colors: | Black/Blue/Brown/White |
| Cable length: | 16.4, 16.4 ft |
| Cable type: | Stranded/Braided |
| UNSPSC: | 32151904 |
| UPC: | 00785411804170 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Remke 304C0164H Micro-Link Tuff-Link Plug Assembly
Brand: Remke
Part Number: 304C0164H
Remke Micro-Link Tuff-Link Plug Assembly, Braided, Female Connector, M12 Connector, PVC, Stranded/Braided Cable, 16.4 ft Cable Length, PVC Cable, 4 Poles, Single Key Keyway, 250 VAC/300 VDC, 4 A, 90 deg, Wire Pin Colors: Black/Blue/Brown/White, IP67 IEC Rating, NEMA 6P
Additional Description: RMKE-304C0164H SINGLE KEY (M12) MICRO-LINK PLUG ASSEMBLY, PVC BRAIDED, FEMALE 90 DEG, 4 POLE, 16.4', 22 AWG ASSEMBLY, PVC BRAIDED, FEMALE 90, 4 POLE, 16.4', 22 AWG FEMALE PLUG ASSEMBLIES: 90 DEGREE PLUG BRAIDED
Catalog Description: Single Key (M12) Micro-Link Plug Assembly, PVC Braided, Female 90 deg, 4 pole, 16.4', 22 AWG
304C0164H Application
Automotive Assembly, Sensors on Conveyors, Pick and Place Robots, Packaging Machinery, Automated Machinery and Materials Handling Equipment Applications304C0164H Item Features
- Machined contacts (instead of stamped contacts) for highly accurate tolerances
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- High impact-resistant contact carriers for longer product life
- Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
- Fast and easy replacement of 12 to 18 mm sensors, switches and control components
- Shielded and splitter styles
- PVC which is best for general assembly applications
- US and European sensor connection compatibility
- Fast and easy replacement of 12 to 18 mm
304C0164H Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|CSA File No. E165657SKU #2276417Part Number #304C0164HUNSPSC32151904UPC00785411804170

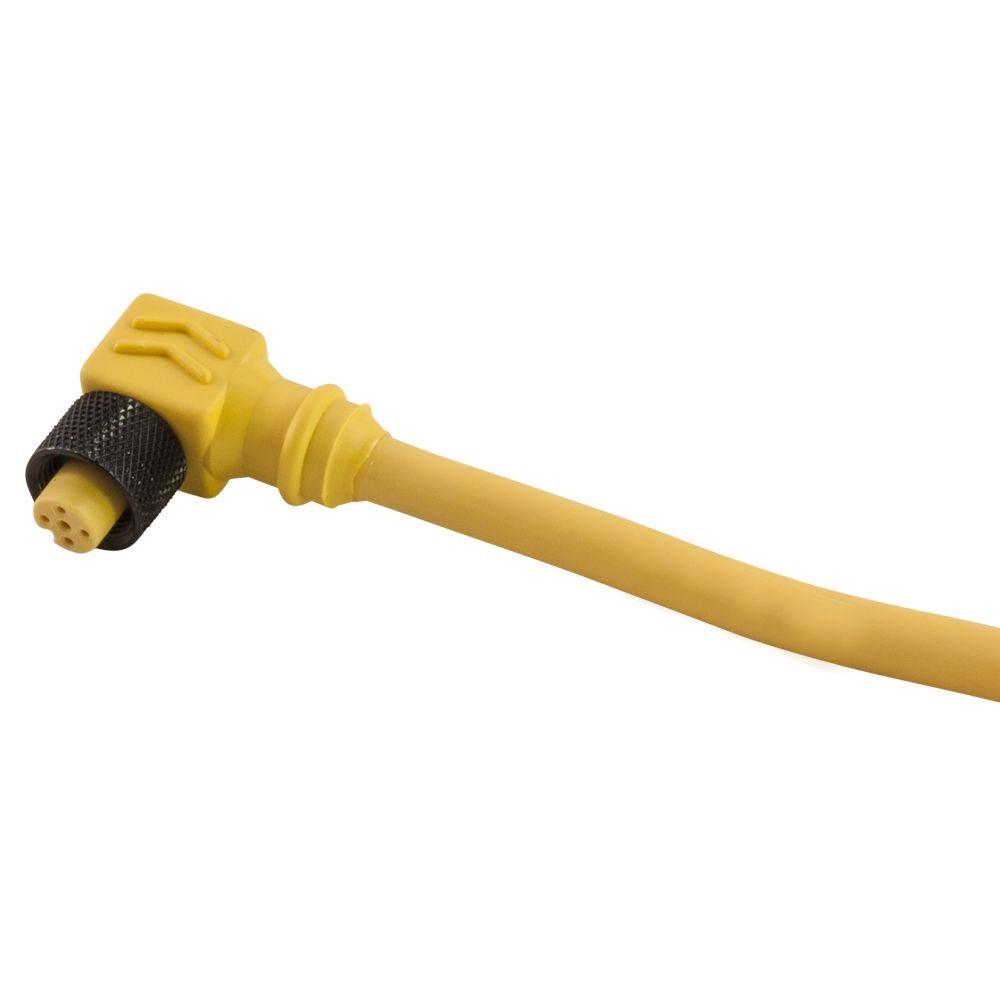

Image provided may only be a representation of final product and may include optional equipment
