Part Number # 304FFW7
SKU # 2287401
Image provided may only be a representation of
final product and may include optional equipment
304FFW7

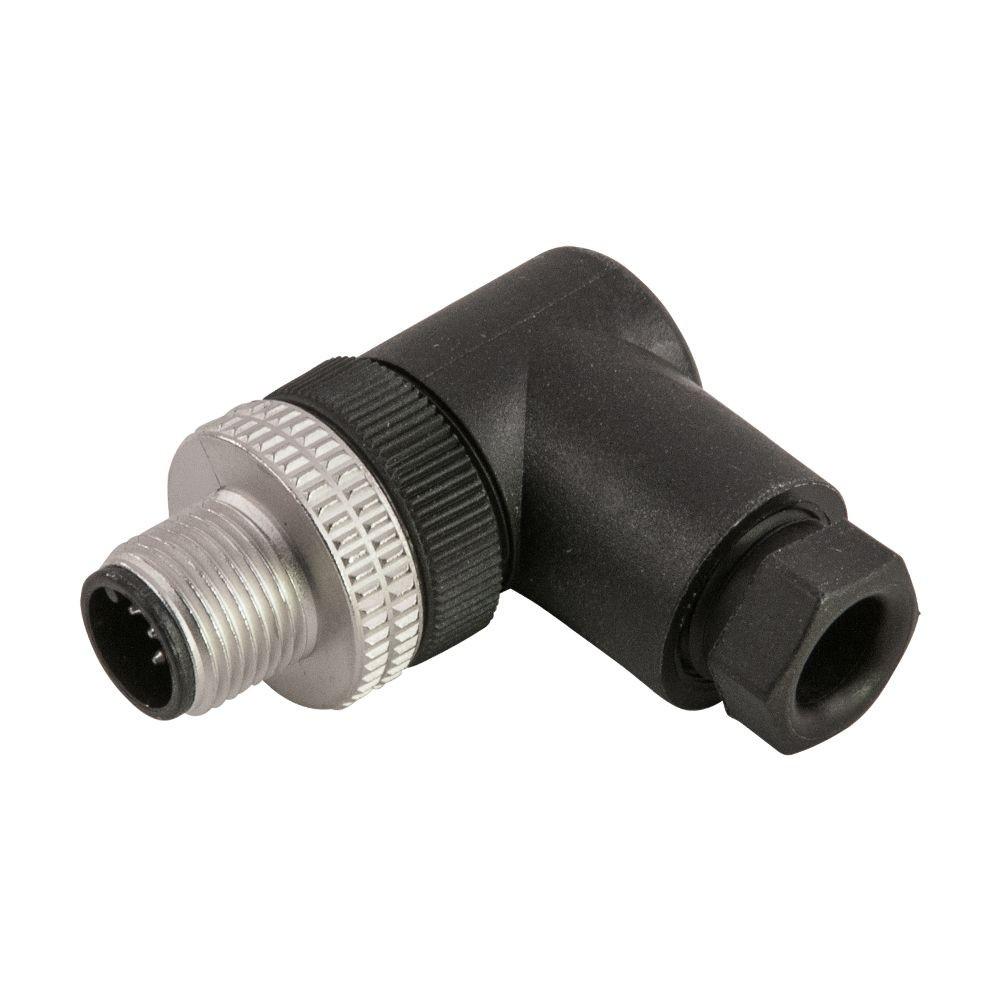

Remke 304FFW7 Micro-Link Tuff-Link Field Attachable Connector
Part Number # 304FFW7
SKU # 2287401
Remke 304FFW7 Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 304FFW7 |
| SKU #: | 2287401 |
| Amperage Rating: | 4, 4 A |
| Cable Size: | 22, 22 AWG |
| Environmental Conditions: | -13 to 194 deg F Operating Temperature |
| O-Ring Material: | Nitrile Rubber |
| Shell Material: | Nylon |
| Thread Size: | M8x0.05 |
| Type: | 90 deg 4-Pole Male Single Key |
| Country of origin: | CN, DE |
| Length: | 1.61, 1.61 in |
| Manufacturer Name: | NSi Industries |
| UNSPSC: | 32151909 |
| UPC: | 00785411804385 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Remke 304FFW7 Micro-Link Tuff-Link Field Attachable Connector
Brand: Remke
Part Number: 304FFW7
Remke Micro-Link Tuff-Link Field Attachable Connector, 90 deg 4-Pole Male Single Key, 125 VAC/150 VDC, 4 A, 22 AWG Cable, 1.61 in Length, Nitrile Rubber O-Ring, Nylon Insert, Nylon Overmold, Nickel Plated Brass Coupling Nut, Nylon Shell, M8x0.05, Environmental Conditions: -13 to 194 deg F Operating Temperature
Additional Description: RMKE-304FFW7 SINGLE KEY (M12) MICRO-LINK FIELD ATTACHABLE CONNECTOR, 4 POLE, MALE 90 DEG, PG7 ENTRY 90, PG7 ENTRY DEGREE
Catalog Description: Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male 90 deg, PG7 entry
304FFW7 Application
Automated Assembly Equipment, Automated Machinery, Limit Switches, Hydraulic and Pneumatic Valves, Materials Handling Equipment, Packaging Machinery, Photoelectric Switches, Pick and Place Robots, Proximity Sensors, Sensors on Conveyors and Solenoids Applications304FFW7 Item Features
- These field wireable connectors convert hardwired sensors into quick-disconnect types and provide positive, compact cable terminations in harsh environments
- Ideal for creating custom length cordsets in the field
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- Easy methods of cable termination and identification
- These connectors are ideal for creating custom length cordsets in the field
304FFW7 Standards
RoHS CompliantSKU #2287401Part Number #304FFW7UNSPSC32151909UPC00785411804385
