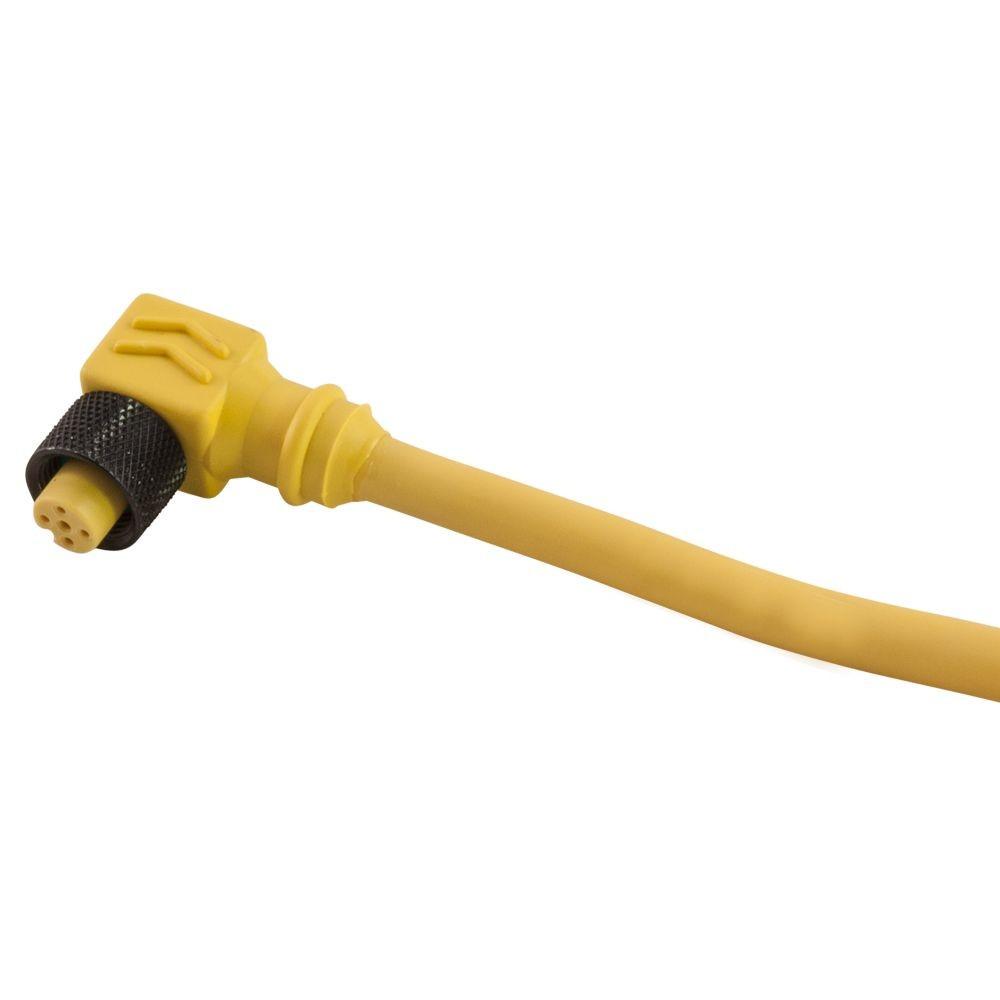

Remke 305C0164J Micro-Link Tuff-Link Plug Assembly
Part Number # 305C0164J
SKU # 2305909
Remke 305C0164J Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 305C0164J |
| SKU #: | 2305909 |
| Connector Size: | M12 |
| Keyway: | Single Key |
| NEMA Rating: | NEMA 6P |
| Type: | Non-Braided |
| Wire Pin Colors: | Black/Blue/Brown/Gray/White |
| Cable length: | 16.4, 16.4 ft |
| Cable type: | Stranded |
| UNSPSC: | 32151904 |
| UPC: | 00785411804699 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Remke 305C0164J Micro-Link Tuff-Link Plug Assembly
Brand: Remke
Part Number: 305C0164J
Remke Micro-Link Tuff-Link Plug Assembly, Non-Braided, Female Connector, M12 Connector, PVC, Stranded Cable, 16.4 ft Cable Length, PVC Cable, 5 Poles, Single Key Keyway, 250 VAC/300 VDC, 4 A, 90 deg, Wire Pin Colors: Black/Blue/Brown/Gray/White, IP67 IEC Rating, NEMA 6P
Additional Description: RMKE-305C0164J SINGLE KEY (M12) MICRO-LINK PLUG ASSEMBLY, PVC, FEMALE 90 DEG, 5 POLE, 16.4', 22 AWG ASSEMBLY, PVC, FEMALE 90, 5 POLE, 16.4', 22 AWG FEMALE PLUG ASSEMBLIES: 90 DEGREE PLUG NON-BRAIDED
Catalog Description: Single Key (M12) Micro-Link Plug Assembly, PVC, Female 90 deg, 5 pole, 16.4', 22 AWG
305C0164J Application
Automotive Assembly, Sensors on Conveyors, Pick and Place Robots, Packaging Machinery, Automated Machinery and Materials Handling Equipment Applications305C0164J Item Features
- Machined contacts (instead of stamped contacts) for highly accurate tolerances
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- High impact-resistant contact carriers for longer product life
- Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
- Fast and easy replacement of 12 to 18 mm sensors, switches and control components
- Shielded and splitter styles
- PVC which is best for general assembly applications
- US and European sensor connection compatibility
- Fast and easy replacement of 12 to 18 mm
305C0164J Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|CSA File No. E165657SKU #2305909Part Number #305C0164JUNSPSC32151904UPC00785411804699
