403C0060K

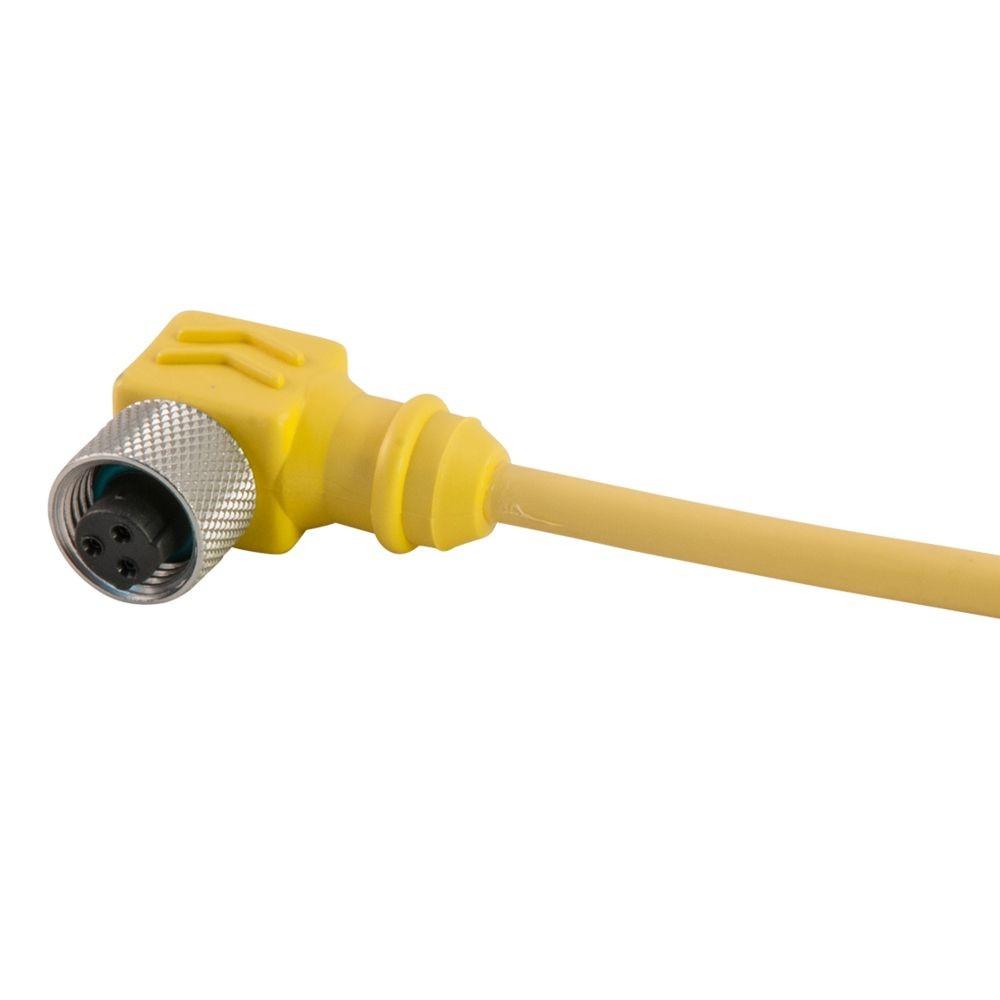

Remke 403C0060K Micro-Link Tuff-Link Plug Assembly
Part Number # 403C0060K
SKU # 2241944
Remke 403C0060K Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 403C0060K |
| SKU #: | 2241944 |
| Amperage Rating: | 4, 4 A |
| Angle: | 90, 90 deg |
| Cable Material: | Polyurethane |
| Connector Type: | Female |
| IEC Rating: | IP67 |
| Keyway: | Dual Key |
| NEMA Rating: | NEMA 6P |
| Number of Poles: | 3 |
| Type: | Non-Braided |
| Wire Pin Colors: | Black/Green/Red/White |
| Cable length: | 6, 6 ft |
| Cable type: | Stranded |
| Country of origin: | US |
| Manufacturer Name: | NSi Industries |
| UNSPSC: | 32151904 |
| UPC: | 00785411805917 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Remke 403C0060K Micro-Link Tuff-Link Plug Assembly
Brand: Remke
Part Number: 403C0060K
Remke Micro-Link Tuff-Link Plug Assembly, Non-Braided, Female Connector, Polyurethane, Stranded Cable, 6 ft Cable Length, Polyurethane Cable, 3 Poles, Dual Key Keyway, 250 VAC/300 VDC, 4 A, 90 deg, Wire Pin Colors: Black/Green/Red/White, IP67 IEC Rating, NEMA 6P
Additional Description: RMKE-403C0060K DUAL KEY MICRO-LINK PLUG ASSEMBLY, PUR, FEMALE 90 DEG, 3 POLE, 6', 22 AWG PUR, FEMALE 90, 3 POLE, 6', 22 AWG PLUG ASSEMBLIES: 90 DEGREE PLUG NON-BRAIDED
Catalog Description: Dual Key Micro-Link Plug Assembly, PUR, Female 90 deg, 3 pole, 6', 22 AWG
403C0060K Application
Automotive Assembly, Sensors on Conveyors, Pick and Place Robots, Packaging Machinery, Automated Machinery and Materials Handling Equipment Applications403C0060K Item Features
- Machined contacts (instead of stamped contacts) for highly accurate tolerances
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- High impact-resistant contact carriers for longer product life
- Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
- Fast and easy replacement of 12 to 18 mm sensors, switches and control components
- Shielded and splitter styles
- PUR for excellent abrasion resistance for high abuse areas
- US and European sensor connection compatibility
- Fast and easy replacement of 12 to 18 mm
403C0060K Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|CSA File No. E165657SKU #2241944Part Number #403C0060KUNSPSC32151904UPC00785411805917
