Part Number # 504A0164L
SKU # 2157110
Image Disclaimers Message
504A0164L

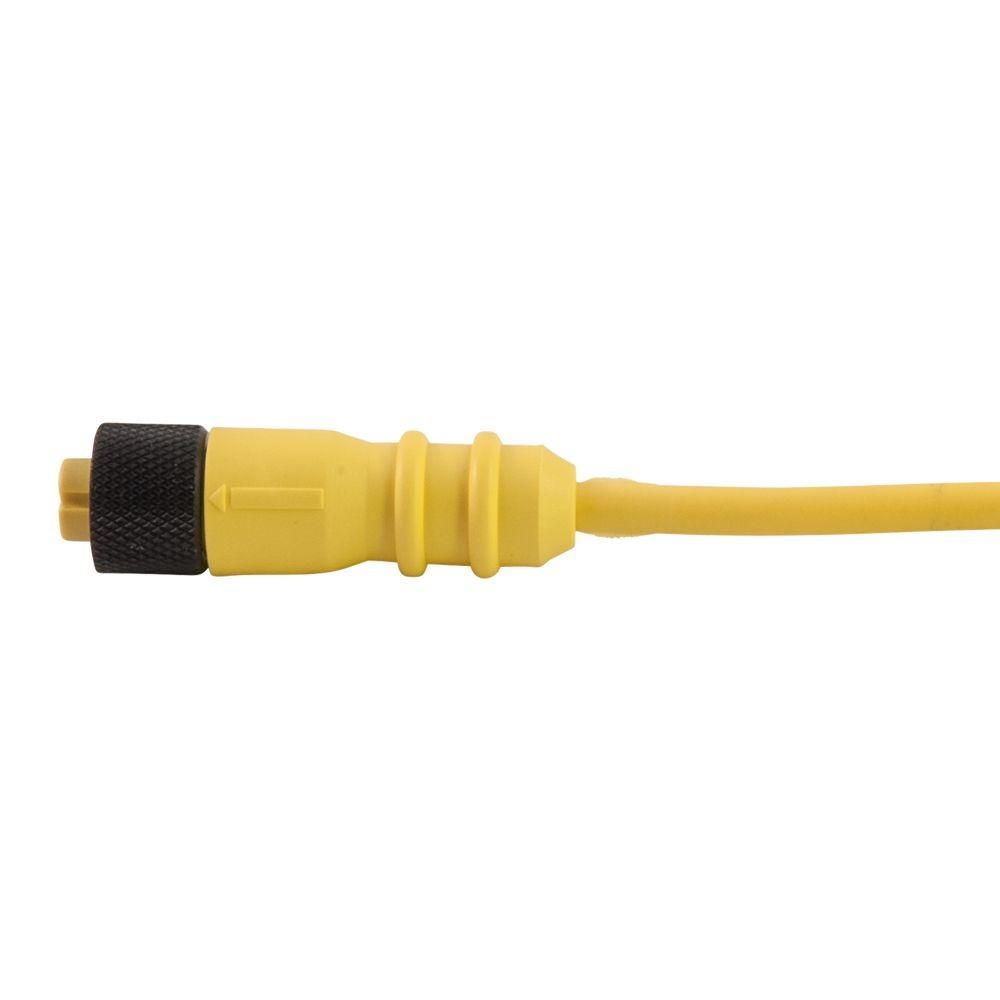

Remke 504A0164L Micro-Link Tuff-Link Plug Assembly
Part Number # 504A0164L
SKU # 2157110
$63.43 / Each
Typical price:$88.80 / Each
Remke 504A0164L Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 504A0164L |
| SKU #: | 2157110 |
| Amperage Rating: | 4, 4 A |
| Cable Material: | Polyurethane |
| Connector Size: | M12 |
| Connector Type: | Straight Female |
| IEC Rating: | IP67 |
| Keyway: | Single Key |
| NEMA Rating: | NEMA 6P |
| Number of Poles: | 4 |
| Type: | Non-Braided |
| Wire Pin Colors: | Black/Blue/Brown/White |
| Cable length: | 16.4, 16.4 ft |
| Cable type: | Stranded |
| Country of origin: | US |
| Manufacturer Name: | NSi Industries |
| UNSPSC: | 32151904 |
| UPC: | 00785411808246 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$63.43 / Each
Typical price:$88.80 / Each
Quantity:
- Remke Micro-Link Tuff-Link Plug Assembly, Non-Braided, Straight Female Connector, M12 Connector, Polyurethane, Stranded Cable, 16.4 ft Cable Length, Polyurethane Cable, 4 Poles, Single Key Keyway, 250 V AC/300 V DC, 4 A, Wire Pin Colors: Black/Blue/Brown/White, IP67 IEC Rating, NEMA 6P
504A0164L Application
Automotive Assembly, Sensors on Conveyors, Pick and Place Robots, Packaging Machinery, Automated Machinery and Materials Handling Equipment Applications504A0164L Item Features
- Machined contacts (instead of stamped contacts) for highly accurate tolerances
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- High impact-resistant contact carriers for longer product life
- Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
- Fast and easy replacement of 12 to 18 mm sensors, switches and control components
- Shielded and splitter styles
- PUR for excellent abrasion resistance for high abuse areas
- US and European sensor connection compatibility
- Fast and easy replacement of 12 to 18 mm
504A0164L Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|CSA File No. E165657SKU #2157110Part Number #504A0164LUNSPSC32151904UPC00785411808246
