Remke 504C0164L Micro-Link Tuff-Link Plug Assembly
Part Number # 504C0164L
SKU # 2380465
Remke 504C0164L Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 504C0164L |
| SKU #: | 2380465 |
| Cable Material: | Polyurethane |
| Connector Size: | M12 |
| Keyway: | Single Key |
| NEMA Rating: | NEMA 6P |
| Type: | Non-Braided |
| Wire Pin Colors: | Black/Blue/Brown/White |
| Cable length: | 16.4, 16.4 ft |
| Cable type: | Stranded |
| UNSPSC: | 32151904 |
| UPC: | 00785411808338 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Remke 504C0164L Micro-Link Tuff-Link Plug Assembly
Brand: Remke
Part Number: 504C0164L
Remke Micro-Link Tuff-Link Plug Assembly, Non-Braided, Female Connector, M12 Connector, Polyurethane, Stranded Cable, 16.4 ft Cable Length, Polyurethane Cable, 4 Poles, Single Key Keyway, 250 VAC/300 VDC, 4 A, 90 deg, Wire Pin Colors: Black/Blue/Brown/White, IP67 IEC Rating, NEMA 6P
Additional Description: RMKE-504C0164L SINGLE KEY (M12) MICRO-LINK PLUG ASSEMBLY, PUR, FEMALE 90 DEG, 4 POLE, 16.4', 22 AWG POLE, 16.4', 22 AWG, 16.4ft
Catalog Description: Single Key (M12) Micro-Link Plug Assembly, PUR, Female 90 deg, 4 pole, 16.4', 22 AWG,
504C0164L Application
Automotive Assembly, Sensors on Conveyors, Pick and Place Robots, Packaging Machinery, Automated Machinery and Materials Handling Equipment Applications504C0164L Item Features
- Machined contacts (instead of stamped contacts) for highly accurate tolerances
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- High impact-resistant contact carriers for longer product life
- Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
- Fast and easy replacement of 12 to 18 mm sensors, switches and control components
- Shielded and splitter styles
- PUR for excellent abrasion resistance for high abuse areas
- US and European sensor connection compatibility
- Fast and easy replacement of 12 to 18 mm
504C0164L Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657|CSA File No. E165657SKU #2380465Part Number #504C0164LUNSPSC32151904UPC00785411808338

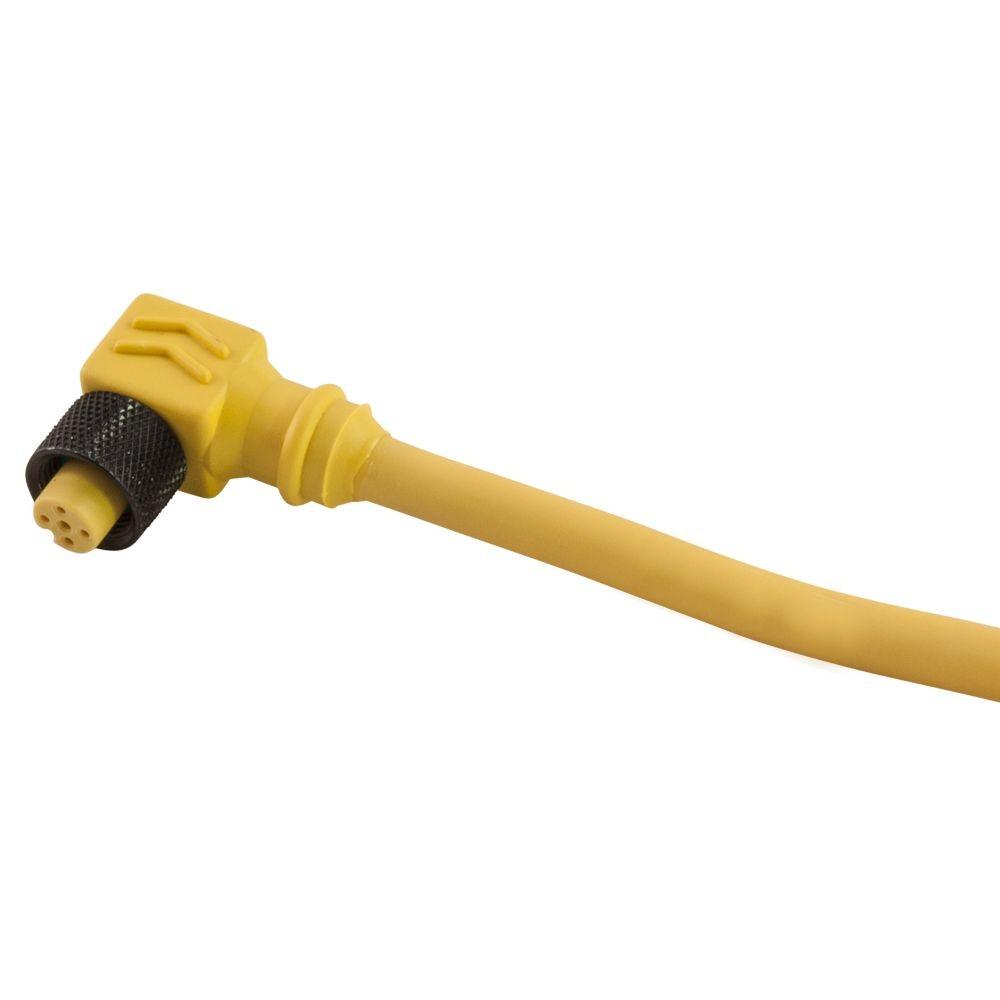

Image provided may only be a representation of final product and may include optional equipment
