Part Number # 504E0066AB9
SKU # 2245489
504E0066AB9

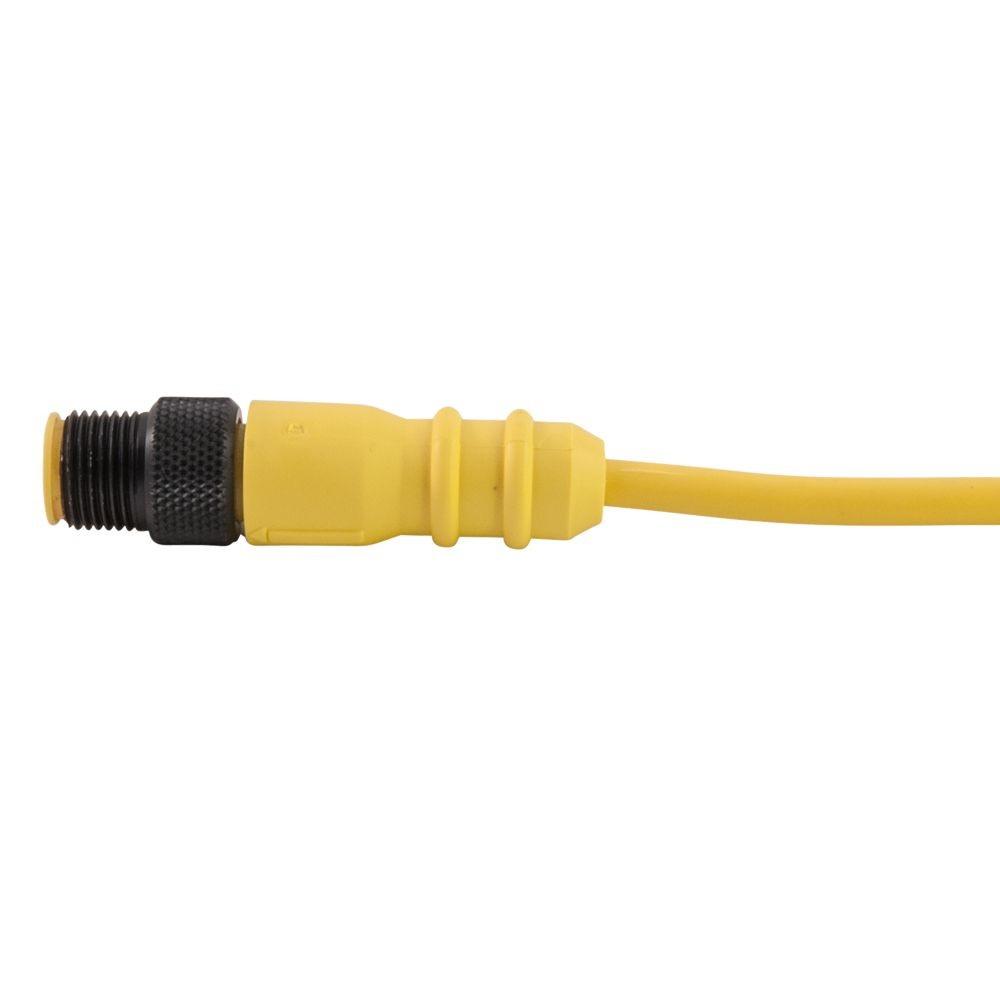

Remke 504E0066AB9 Micro-Link Tuff-Link Plug Assembly
Part Number # 504E0066AB9
SKU # 2245489
Remke 504E0066AB9 Key Features
| Brand: | Remke |
|---|---|
| Part Number # : | 504E0066AB9 |
| SKU #: | 2245489 |
| Cable Material: | TPE |
| Connector Size: | M12 |
| Connector Type: | Straight Male |
| Keyway: | Single Key |
| NEMA Rating: | NEMA 6P |
| Wire Pin Colors: | Black/Blue/Brown/White |
| Cable length: | 6.6, 6.6 ft |
| Cable type: | Stranded/Shielded |
| UNSPSC: | 32151904 |
| UPC: | 00785411808345 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Remke 504E0066AB9 Micro-Link Tuff-Link Plug Assembly
Brand: Remke
Part Number: 504E0066AB9
Remke Micro-Link Tuff-Link Plug Assembly, Straight Male Connector, M12 Connector, Polyurethane, Stranded/Shielded Cable, 6.6 ft Cable Length, TPE Cable, 4 Poles, Single Key Keyway, 250 VAC/300 VDC, 4 A, Wire Pin Colors: Black/Blue/Brown/White, IP67 IEC Rating, NEMA 6P
Additional Description: RMKE-504E0066AB9 SINGLE KEY (M12) SHIELDED TO COUPLER MICRO-LINK PLUG ASSEMBLY, MALE, 4 POLE, 6.6', 22 AWG COUPLER MICRO-LINK TM PLUG ASSEMBLIES: MALE STRAIGHT PLUG
Catalog Description: Single Key (M12) Shielded to Coupler Micro-Link Plug Assembly, Male, 4 pole, 6.6', 22 AWG
504E0066AB9 Application
Automotive Assembly, Sensors on Conveyors, Pick and Place Robots, Packaging Machinery, Automated Machinery and Materials Handling Equipment Applications504E0066AB9 Item Features
- Machined contacts (instead of stamped contacts) for highly accurate tolerances
- Gold plated brass contacts for enhanced corrosion resistance and conductivity
- High impact-resistant contact carriers for longer product life
- Vibration-resistant design so the connector will stay securely fastened to the sensor or mating receptacle
- Fast and easy replacement of 12 to 18 mm sensors, switches and control components
- Shielded and splitter styles
- TPE that offers excellent chemical and abrasion resistance
- US and European sensor connection compatibility
- Fast and easy replacement of 12 to 18 mm
504E0066AB9 Standards
RoHS Compliant|RoHS 2011/65/EU|cUL File No. E165657SKU #2245489Part Number #504E0066AB9UNSPSC32151904UPC00785411808345
Image provided may only be a representation of final product and may include optional equipment
