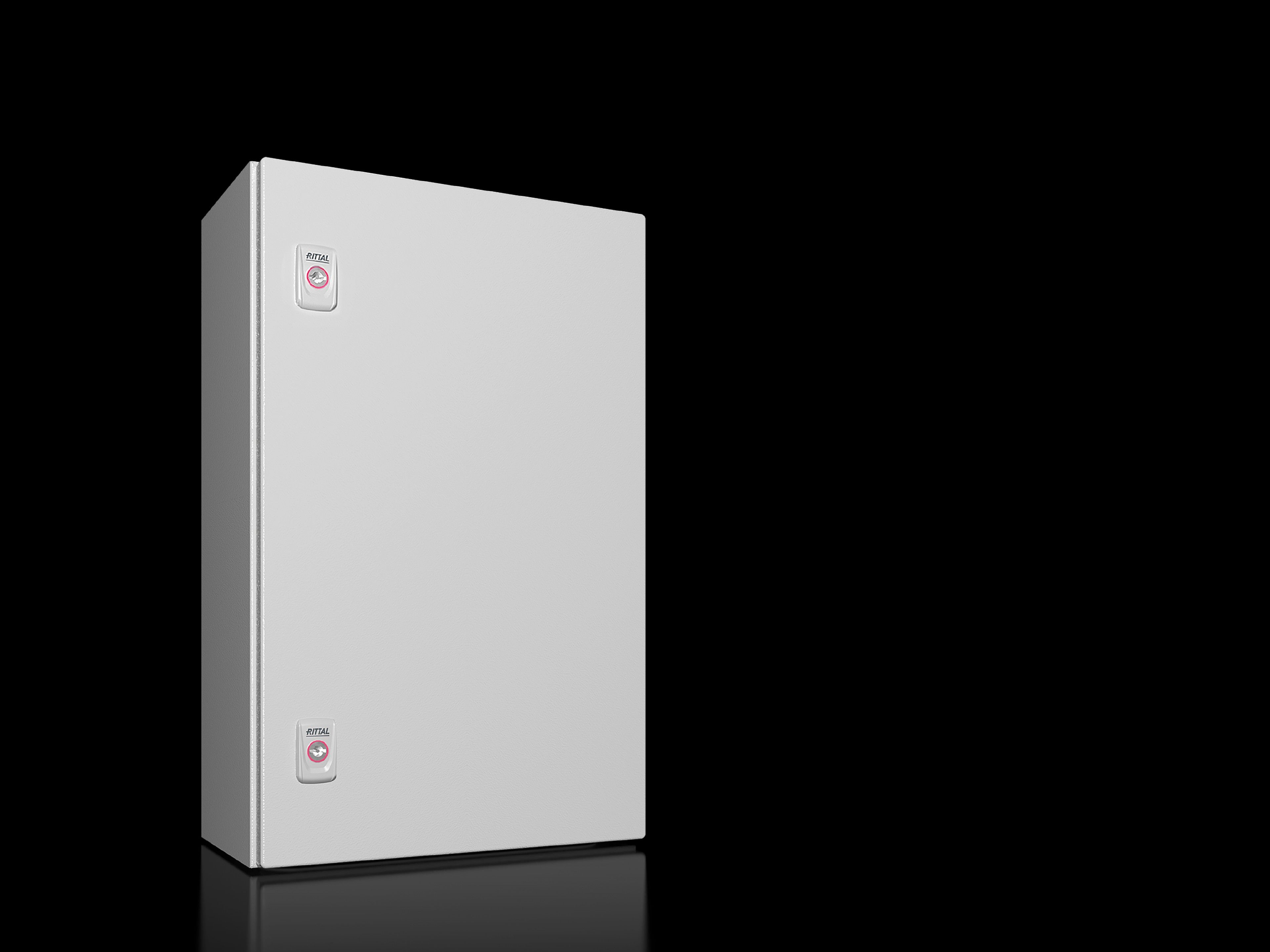

Rittal 1038000 Enclosure
Part Number # 1038000
SKU # 2379342

1038000
Rittal 1038000 Enclosure
Part Number # 1038000
SKU # 2379342
Rittal 1038000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1038000 |
| SKU #: | 2379342 |
| Electrical Ratings: | 1000 V AC/1500 V DC |
| Insulation: | Foamed-In PU Seal |
| Series: | AX Series |
| Width: | 380 mm |
| UNSPSC: | 39121324 |
| UPC: | 04028177813410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Rittal 1038000 Enclosure
Brand: Rittal
Part Number: 1038000
Rittal Enclosure, Compact, Series: AX Series, 380 mm Width, 210 mm D, 600 mm Height, NEMA 4, Lock: (2) 3 mm Double-Bit Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1038000 AX241508NC WHD: 380 X 600 X 210 MM
Catalog Description: AX Compact enclosure, WHD: 380x600x210 mm, carbon steel, with mounting plate, single-door, with two cam locks
1038000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1038000 Includes
330 mm W x 575 mm H x 2.5 mm THK Mounting Plate, 1.25 mm THK Housing, (1) 130 deg Swing Angle 1.5 mm THK Door and Punched Door Strip1038000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- Interior installation on a 25 mm pitch pattern, no machining required
- Wall mounting brackets are easily secured from the outside with a self-tapping screw while retaining the UL Listed
- A QR code on the enclosure, door and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Simple earthing, even retrospectively, using machined keyholes in the mounting plate and perforated door strip
- The door and cam lock are quickly fitted with no need for tools
- Up to 33% larger gland plates support cable entry with ever-higher packing densities
- Dipcoat primed powder-coated on the outside textured paint housing/door
1038000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1038000 Warranty
24 monthsSKU #2379342Part Number #1038000UNSPSC39121324UPC04028177813410
Image provided may only be a representation of final product and may include optional equipment
