Brand: Rittal

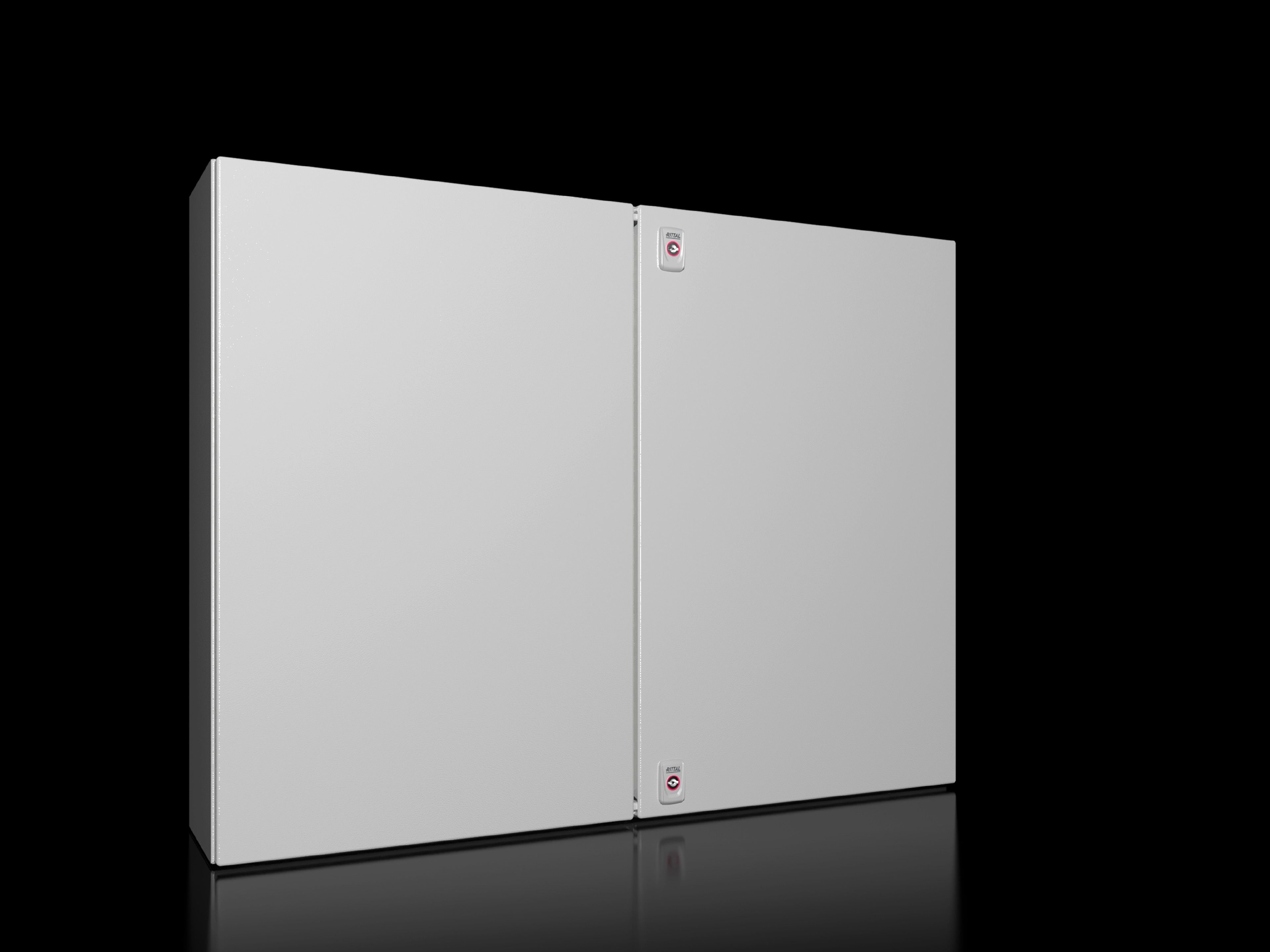

Rittal 1100000 Enclosure
Image Disclaimers Message
Brand: Rittal
Rittal 1100000 Enclosure
Brand: Rittal
Rittal 1100000 Enclosure
Part #:1100000
SKU #: 2381150
$563.00/EA
Key Features
Part #:1100000
SKU #: 2381150
Brand: Rittal
Electrical Ratings: 1000 VAC/1500 VDC
Finish: Powder Coated
Insulation: Foamed-In PU Seal
NEMA Rating: NEMA 12
Series: AX Series
$563.00/EA
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- Interior installation on a 25 mm pitch pattern, no machining required
- Wall mounting brackets are easily secured from the outside with a self-tapping screw while retaining the UL Listed
- A QR code on the enclosure, door and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Simple earthing, even retrospectively, using machined keyholes in the mounting plate and perforated door strip
- The door and cam lock are quickly fitted with no need for tools
- Up to 33% larger gland plates support cable entry with ever-higher packing densities
- Dipcoat primed powder-coated on the outside textured paint housing/door
Specifications
Brand: Rittal
Electrical Ratings: 1000 VAC/1500 VDC
Finish: Powder Coated
Insulation: Foamed-In PU Seal
NEMA Rating: NEMA 12
Series: AX Series
Temperature Rating (Degrees F): -20 to 80, -20 to 80 deg C
Type: Compact
Depth: 210, 210 mm
Height: 760, 760 mm
Material: Carbon Steel
Mounting type: Wall
Width: 1000, 1000 mm
UNSPSC: 39121324
UPC: 00063988991469
Rittal 1100000 Enclosure
Rittal Enclosure, Compact, Series: AX Series, 1000 mm Width, 210 mm D, 760 mm Height, NEMA 12, Lock: (2) 3 mm Double-Bit Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1100000 AX304008NC cabinet
Catalog Description: AX COMPACT ENCLOSURE WHD: 1000x760x210
