1114000
Rittal 1114000 Enclosure
Part Number # 1114000
SKU # 2381391
Rittal 1114000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1114000 |
| SKU #: | 2381391 |
| Electrical Ratings: | 1000 V AC/1500 V DC |
| Insulation: | Foamed-In PU Seal |
| Series: | AX Series |
| UNSPSC: | 39121324 |
| UPC: | 04028177813199 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.

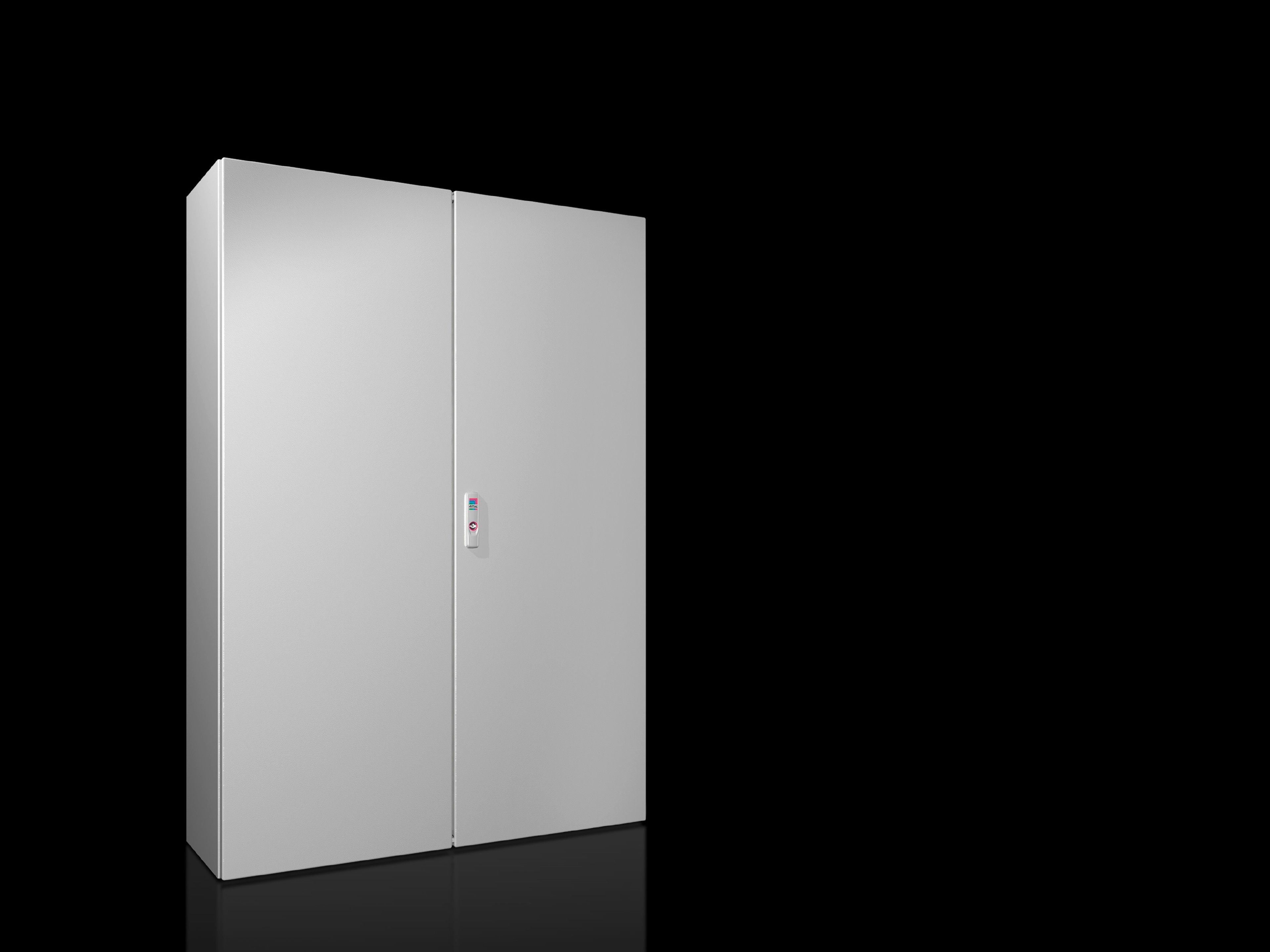

Rittal 1114000 Enclosure
Brand: Rittal
Part Number: 1114000
Rittal Enclosure, Compact, Series: AX Series, 1000 mm Width, 300 mm D, 1400 mm Height, NEMA 12, Lock: 3 mm Double-Bit Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1114000 AX554012NC WHD: 1000 X 1400 X 300 MM 1400H1000W0300D
Catalog Description: AX Compact enclosure, WHD: 1000x1400x300 mm, carbon steel, with mounting plate, two-door, with 3-point lock system
1114000 Application
For predominantly indoors, protection against dust deposits, foreign bodies and non-corrosive dripping liquids1114000 Includes
945 mm W x 1375 mm H x 2.5 mm THK Mounting Plate, 1.5 mm THK Housing, (2) 130 deg Swing Angle 2 mm THK Doors and Punched Doors Strip1114000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- Interior installation on a 25 mm pitch pattern, no machining required
- Wall mounting brackets are easily secured from the outside with a self-tapping screw while retaining the UL Listed
- A QR code on the enclosure, door and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Simple earthing, even retrospectively, using machined keyholes in the mounting plate and perforated door strip
- The door and cam lock are quickly fitted with no need for tools
- Up to 33% larger gland plates support cable entry with ever-higher packing densities
- Dipcoat primed powder-coated on the outside textured paint housing/door
1114000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1114000 Warranty
24 monthsSKU #2381391Part Number #1114000UNSPSC39121324UPC04028177813199
Image provided may only be a representation of final product and may include optional equipment
