Part Number # 1180000
SKU # 2376550
1180000
Rittal 1180000 Enclosure
Part Number # 1180000
SKU # 2376550
$540.56 / Each
Typical price:$945.97 / Each
Rittal 1180000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1180000 |
| SKU #: | 2376550 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Insulation: | Foamed-In PU Seal |
| Series: | AX Series |
| UNSPSC: | 39121324 |
| UPC: | 04028177813243 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$540.56 / Each
Typical price:$945.97 / Each
Quantity:
Rittal 1180000 Enclosure
Brand: Rittal
Part Number: 1180000
Rittal Enclosure, Compact, Series: AX Series, 800 mm Width, 300 mm D, 1000 mm Height, NEMA 4, Lock: (2) 3 mm Double-Bit Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1180000 AX403212NC WHD: 800 X 1000 X 300MM
Catalog Description: AX Compact enclosure, WHD: 800x1000x300 mm, carbon steel, with mounting plate, single-door, with two cam locks
1180000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1180000 Includes
745 mm W x 975 mm H x 2.5 mm THK Mounting Plate, 1.5 mm THK Housing, (1) 130 deg Swing Angle 2 mm THK Door and Punched Door Strip1180000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- Interior installation on a 25 mm pitch pattern, no machining required
- Wall mounting brackets are easily secured from the outside with a self-tapping screw while retaining the UL Listed
- A QR code on the enclosure, door and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Simple earthing, even retrospectively, using machined keyholes in the mounting plate and perforated door strip
- The door and cam lock are quickly fitted with no need for tools
- Up to 33% larger gland plates support cable entry with ever-higher packing densities
- Dipcoat primed powder-coated on the outside textured paint housing/door
1180000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1180000 Warranty
24 monthsSKU #2376550Part Number #1180000UNSPSC39121324UPC04028177813243

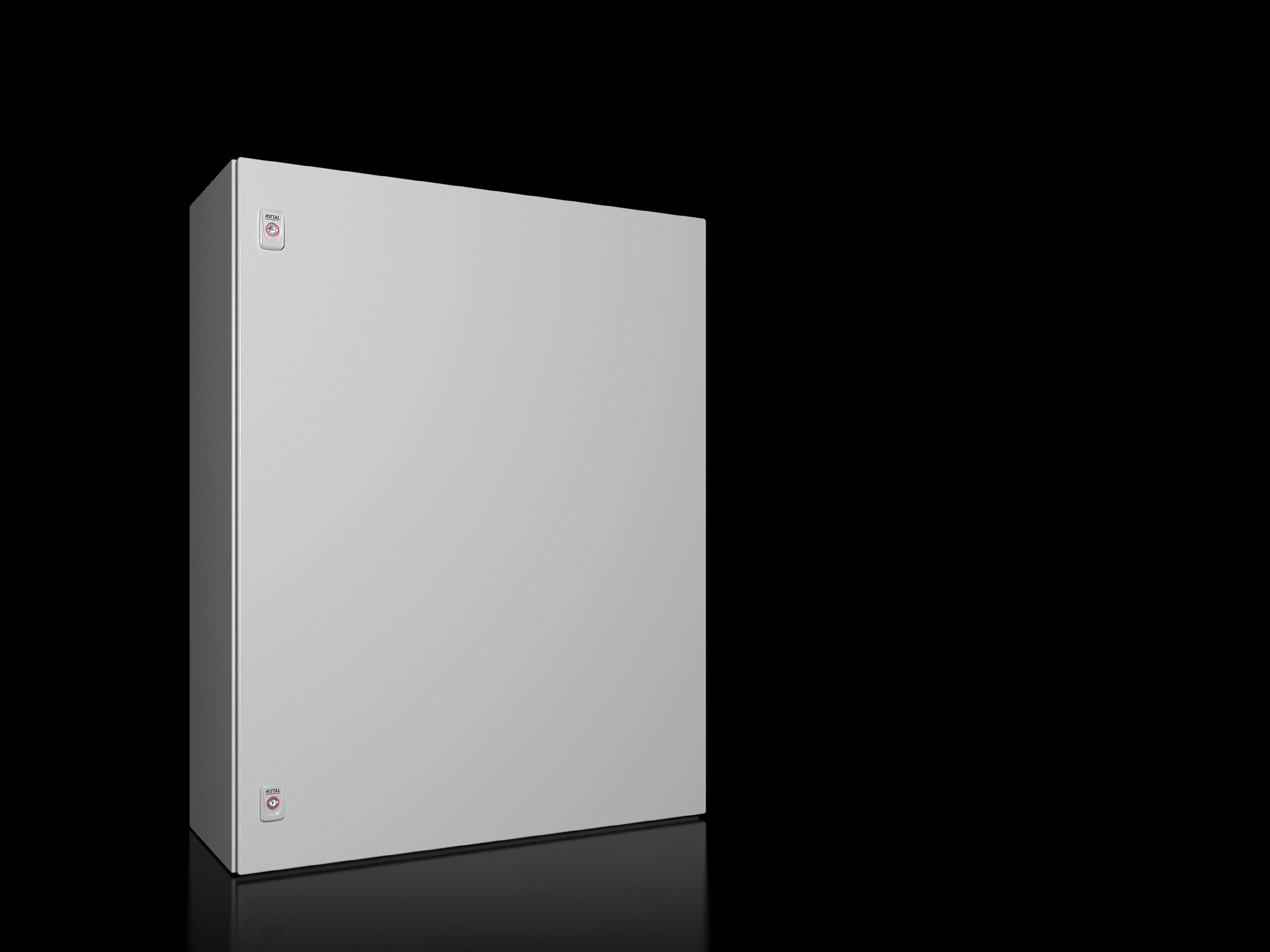

Image provided may only be a representation of final product and may include optional equipment
