Rittal 1181000 AX Series Compact Enclosure With (2) Gland Plate
Part Number # 1181000
SKU # 2385398

1181000
Rittal 1181000 AX Series Compact Enclosure With (2) Gland Plate
Part Number # 1181000
SKU # 2385398
Rittal 1181000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1181000 |
| SKU #: | 2385398 |
| Electrical Ratings: | 1000 V AC/1500 V DC |
| Insulation: | Foamed-In PU Seal |
| Series: | AX Series |
| UNSPSC: | 39121324 |
| UPC: | 00063988991492 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Rittal 1181000 AX Series Compact Enclosure With (2) Gland Plate
Brand: Rittal
Part Number: 1181000
Rittal Enclosure, Compact, Series: AX Series, 800 mm Width, 400 mm D, 1000 mm Height, NEMA 4, Lock: (2) 3 mm Double-Bit Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1181000 AX403216NC WHD: 800X1000X400 MM 1000H0800W0400D
Catalog Description: AX Compact enclosure, WHD: 800x1000x400 mm, carbon steel, with mounting plate, single-door, with two cam locks
1181000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1181000 Includes
745 mm W x 975 mm H x 2.5 mm THK Mounting Plate, 1.5 mm THK Housing, (1) 130 deg Swing Angle 2 mm THK Door and Punched Door Strip1181000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- Interior installation on a 25 mm pitch pattern, no machining required
- Wall mounting brackets are easily secured from the outside with a self-tapping screw while retaining the UL Listed
- A QR code on the enclosure, door and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Simple earthing, even retrospectively, using machined keyholes in the mounting plate and perforated door strip
- The door and cam lock are quickly fitted with no need for tools
- Up to 33% larger gland plates support cable entry with ever-higher packing densities
- Dipcoat primed powder-coated on the outside textured paint housing/door
1181000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1181000 Warranty
24 monthsSKU #2385398Part Number #1181000UNSPSC39121324UPC00063988991492

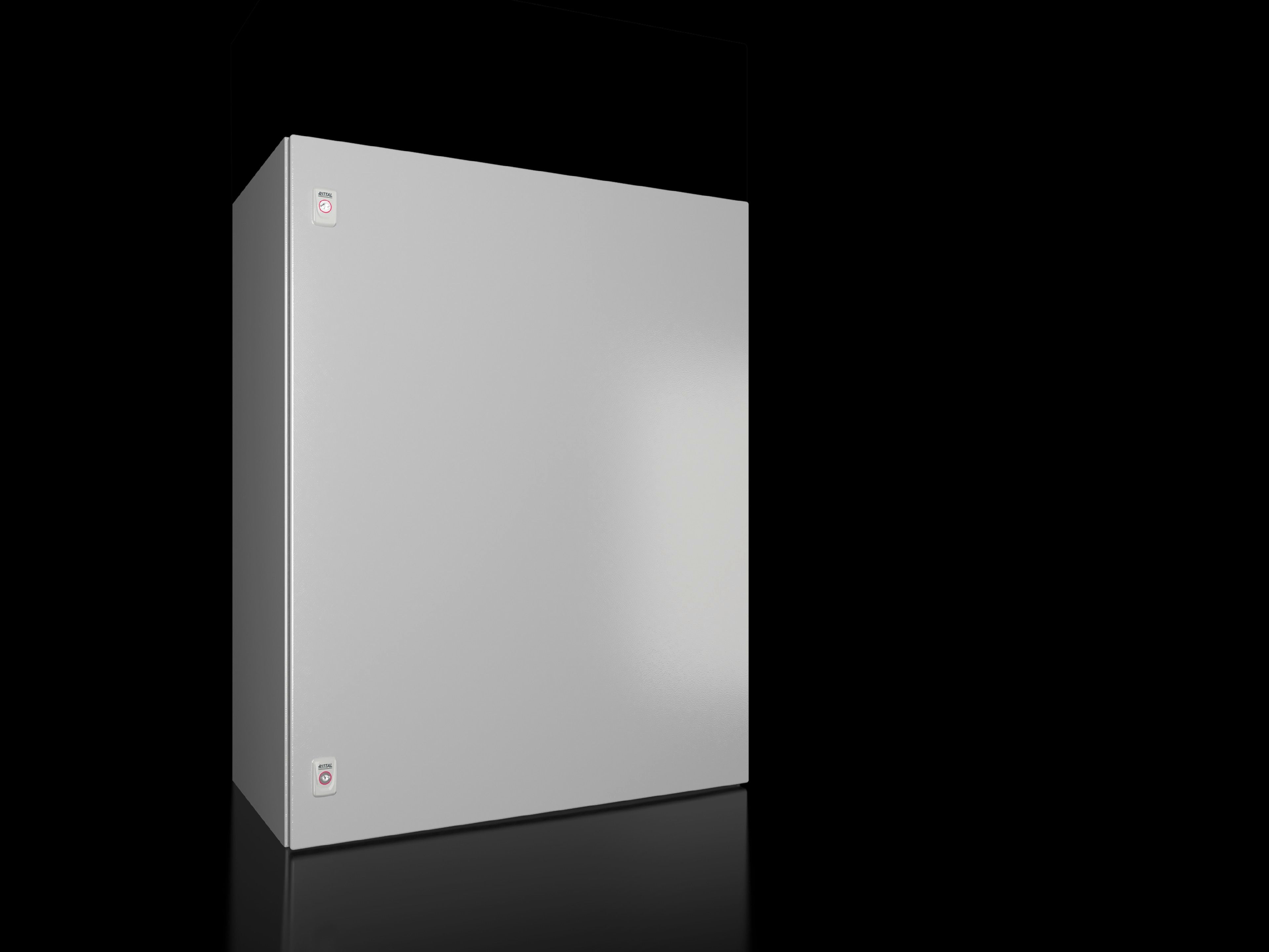

Image provided may only be a representation of final product and may include optional equipment
