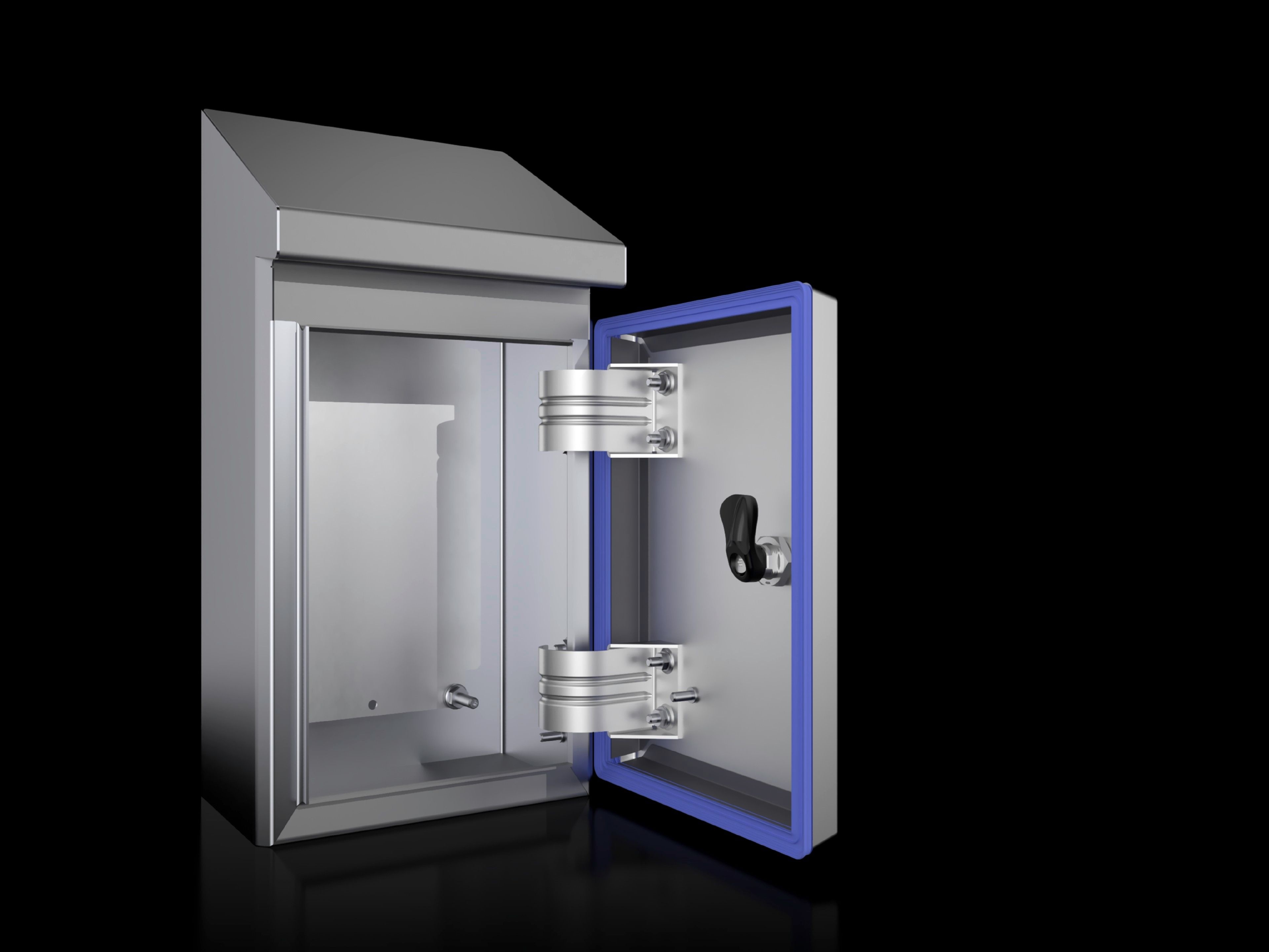

Rittal 1302600 Enclosure
Image Disclaimers Message
Rittal 1302600 Enclosure
Rittal 1302600 Enclosure
Part #:1302600
SKU #: 2228749
Key Features
Part #:1302600
SKU #: 2228749
Brand: Rittal
Finish: Brushed
NEMA Rating: NEMA 13/4X/IP66/IP69K
Series: HD Series
Type: 1-Door Compact Freestanding
Color: Blue
- Roof slope 30 deg towards the front
- Hygienic design construction
- All-round solid construction
- Mounting plate sheet steel, 1.4404 (AISI 316L) stainless steel lock inserts HD, silicone seal
- 1.4301 AISI 304 stainless steel housing and door material
- Without knockout
Rittal 1302600 Enclosure
Rittal Enclosure, 1-Door Compact Freestanding, Series: HD Series, 8.7 in Width, 6.1 in Depth, 14 in Height, NEMA 13/4X/IP66/IP69K NEMA Rating, Concealed Hinged Cover, Floor/Wall Mounting, 304 Stainless Steel, Brushed, Blue
Additional Description: RTL -1302600 HD120806N4 WHD 220X350X155MM, REAR HEIGHT 437MM S/S
Catalog Description: Hygienic Design, Compact enclosure HD, material: Enclosure and door: Stainless steel 1.4301 (AISI 304), Mounting plate: Sheet steel, Lock inserts HD: Stainless steel 1.4404 (AISI 316L), Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600, surface: Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm, Mounting plate: Zinc-plated, Seal: Blue, dyed (RAL 5010), supply includes: Enclosure of all-round solid construction, Door with press-fitted seal, Interchangeable door hinge, Mounting plate, description: Enclosure with 30 deg roof tilt. Interior hinges, an all-round gap-free silicone seal and hygiene-compliant lock inserts ensure that the design meets cleanliness standards.
