Part Number # 1316600
SKU # 2246924
Image Disclaimers Message
Brand: Rittal
1316600

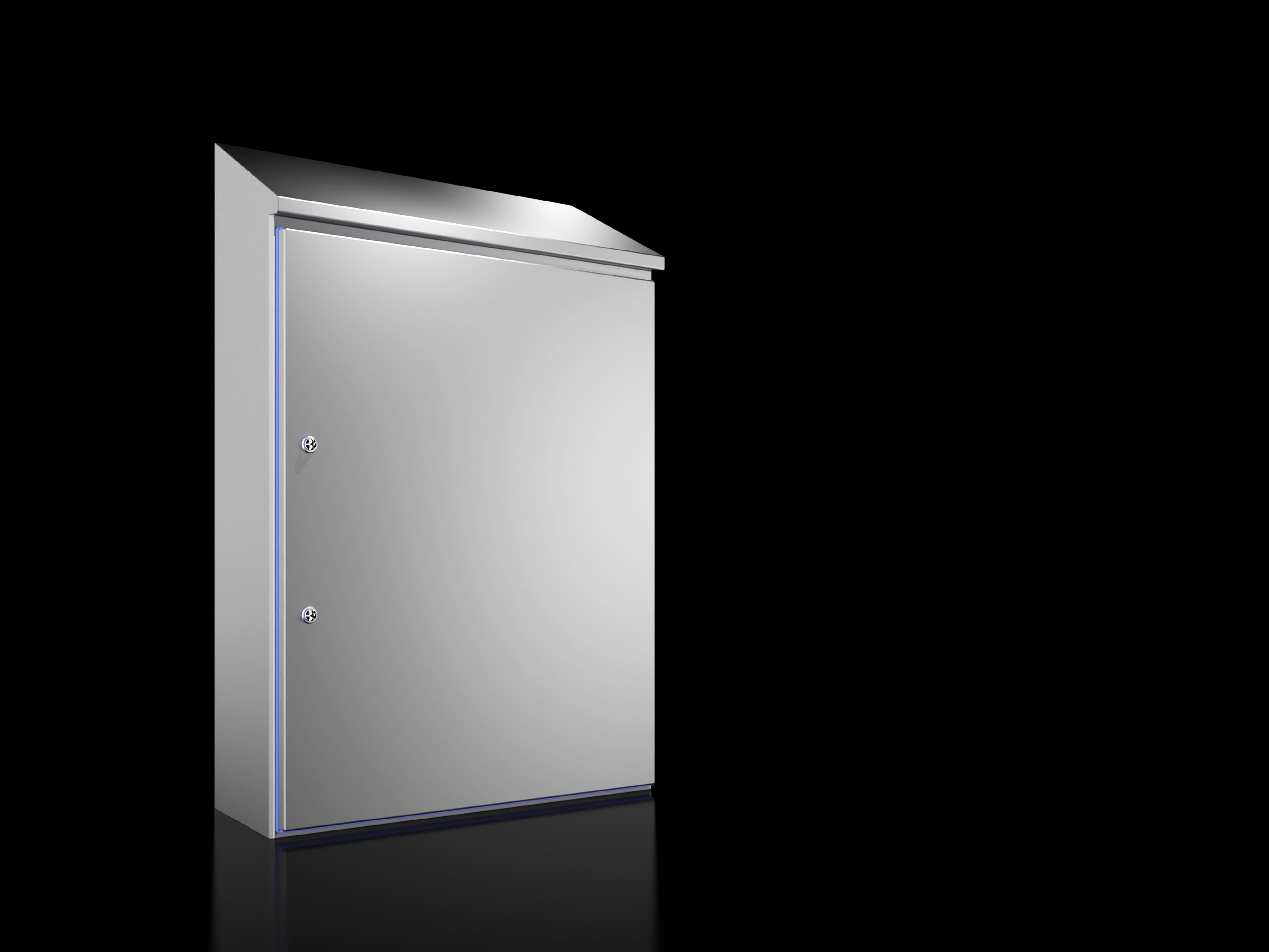

Rittal 1316600 Compact Enclosure
Part Number # 1316600
SKU # 2246924
$3085.58 / Each
Typical price:$3856.98 / Each
Rittal 1316600 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1316600 |
| SKU #: | 2246924 |
| Finish: | Brushed |
| NEMA Rating: | NEMA 13/4X/IP66/69K |
| Panel Size: | 29 in W x 38 in H, 38 in H x 29 in W |
| Series: | HD Series |
| Type: | Hygienic |
| Color: | Gray |
| Depth: | 12, 12 in |
| Height: | 48, 48 in |
| Material: | Stainless Steel |
| Mounting type: | Wall |
| Width: | 32, 32 in |
| UNSPSC: | 39121324 |
| UPC: | 00639889860933 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3085.58 / Each
Typical price:$3856.98 / Each
Quantity:
Rittal 1316600 Compact Enclosure
Brand: Rittal
Part Number: 1316600
Rittal Compact Enclosure, Hygienic, Series: HD Series, 48 in Height, 32 in Width, 12 in Depth, NEMA 13/4X/IP66/69K NEMA Rating, Hinged Cover, 29 in W x 38 in H Panel, Wall Mounting, Stainless Steel, Brushed, Gray
Additional Description: RTL -1316600 HD403212N4 WHD 810X1050X300MM, REAR HEIGHT 1221MM 1050H0810W0300D S-S
Catalog Description: HD Compact enclosure, WHD: 810x1050(H1)x1221(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
1316600 Item Features
- 1.4301 AISI 304 stainless steel housing and door material
- Roof slope 30 deg towards the front
- Stainless steel 1.4301 (AISI 304) housing and door, carbon steel mounting plate, stainless steel 1.4404 (AISI 316L) lock inserts HD, silicone seal material
- Grain 400, < 0.8 micro m peak to valley height, zinc-plated mounting plate finish
- Blue, dyed RAL 5010 seal
- 41 in front height
