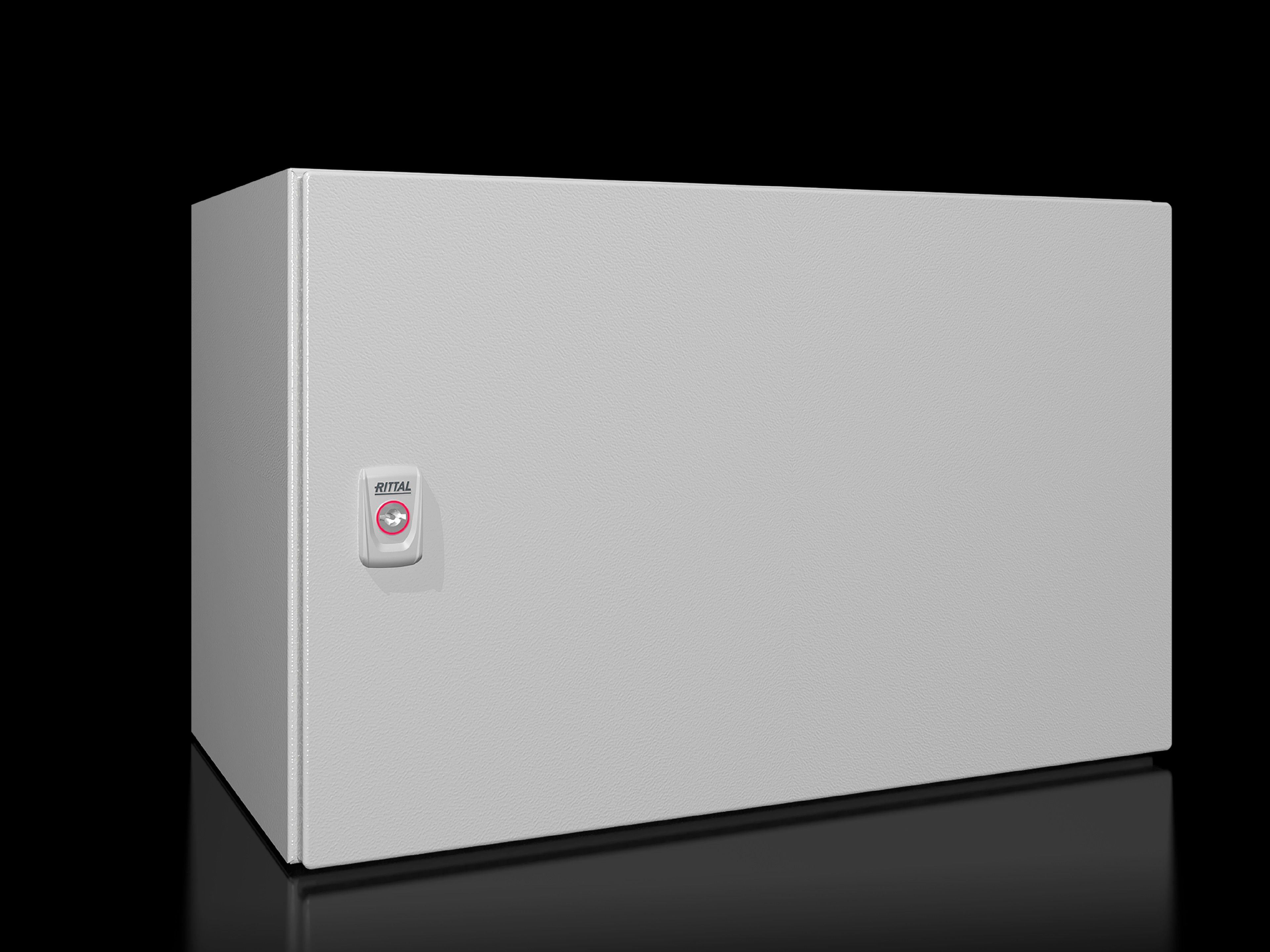

Rittal 1339000 AX Series Compact Enclosure With (1) Gland Plate
Part Number # 1339000
SKU # 2398326
$313.63 / Each
Typical price:$548.85 / Each
Rittal 1339000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1339000 |
| SKU #: | 2398326 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Finish: | Powder Coated |
| Insulation: | Foamed-In PU Seal |
| NEMA Rating: | NEMA 4 |
| Series: | AX Series |
| Temperature Rating (Degrees F): | -20 to 80 deg C |
| Type: | Compact |
| Country of origin: | DE |
| Depth: | 350 mm |
| Height: | 380 mm |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 600 mm |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121324 |
| UPC: | 00063988991486 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$313.63 / Each
Typical price:$548.85 / Each
Quantity:
- Rittal Enclosure, Compact, Series: AX Series, 600 mm Width, 350 mm D, 380 mm Height, NEMA 4, Lock: (1) 3 mm Double-Bit Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
1339000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1339000 Includes
550 mm W x 355 mm H x 2.5 mm THK Mounting Plate, 1.5 mm THK Housing, (1) 130 deg Swing Angle 1.5 mm THK Door and Punched Door Strip1339000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- Interior installation on a 25 mm pitch pattern, no machining required
- Wall mounting brackets are easily secured from the outside with a self-tapping screw while retaining the UL Listed
- A QR code on the enclosure, door and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Simple earthing, even retrospectively, using machined keyholes in the mounting plate and perforated door strip
- The door and cam lock are quickly fitted with no need for tools
- Up to 33% larger gland plates support cable entry with ever-higher packing densities
- Dipcoat primed powder-coated on the outside textured paint housing/door
1339000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1339000 Warranty
24 monthsSKU #2398326Part Number #1339000UNSPSC39121324UPC00063988991486
