Brand: Rittal
1501000

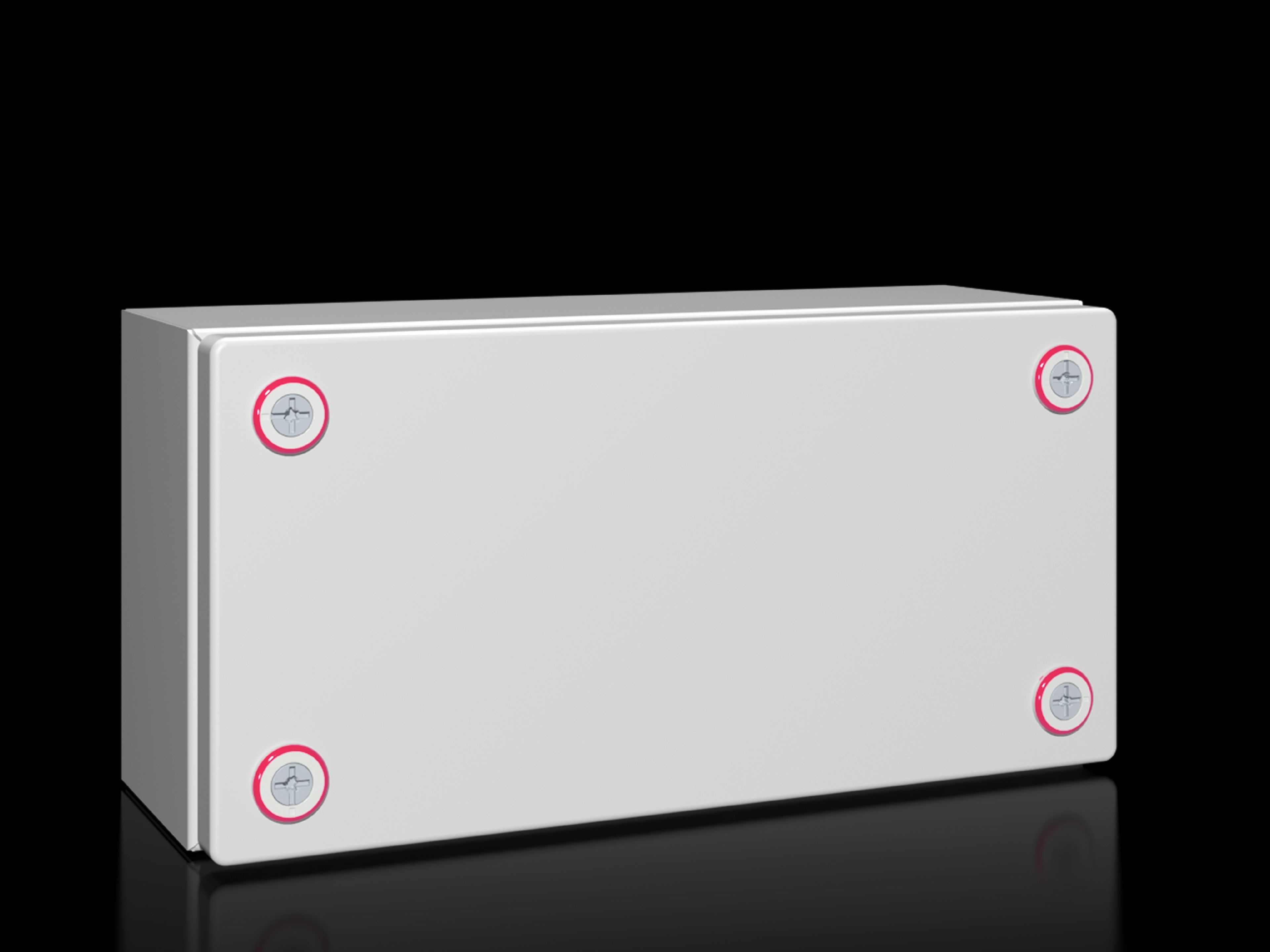

Rittal 1501000 Terminal Box
Part Number # 1501000
SKU # 2381137
$99.40 / Each
Typical price:$124.26 / Each
Rittal 1501000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1501000 |
| SKU #: | 2381137 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Finish: | Powder Coated |
| Insulation: | Foamed-In PU Seal |
| NEMA Rating: | NEMA 4 |
| Series: | KX Series |
| Temperature Rating (Degrees F): | -20 to 80 deg C |
| Type: | Small |
| Country of origin: | DE |
| Depth: | 120 mm |
| Height: | 150 mm |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 300 mm |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121324 |
| UPC: | 00063988991385 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$99.40 / Each
Typical price:$124.26 / Each
Quantity:
- Rittal Terminal Box, Small, Series: KX Series, 300 mm Width, 120 mm D, 150 mm Height, NEMA 4, Lock: (4) Mini Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
1501000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1501000 Includes
1.25 mm THK Housing and 1.25 mm THK Cover1501000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without gland plate and mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1501000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1501000 Warranty
24 monthsSKU #2381137Part Number #1501000UNSPSC39121324UPC00063988991385
