Part Number # 1511000
SKU # 2381400
1511000

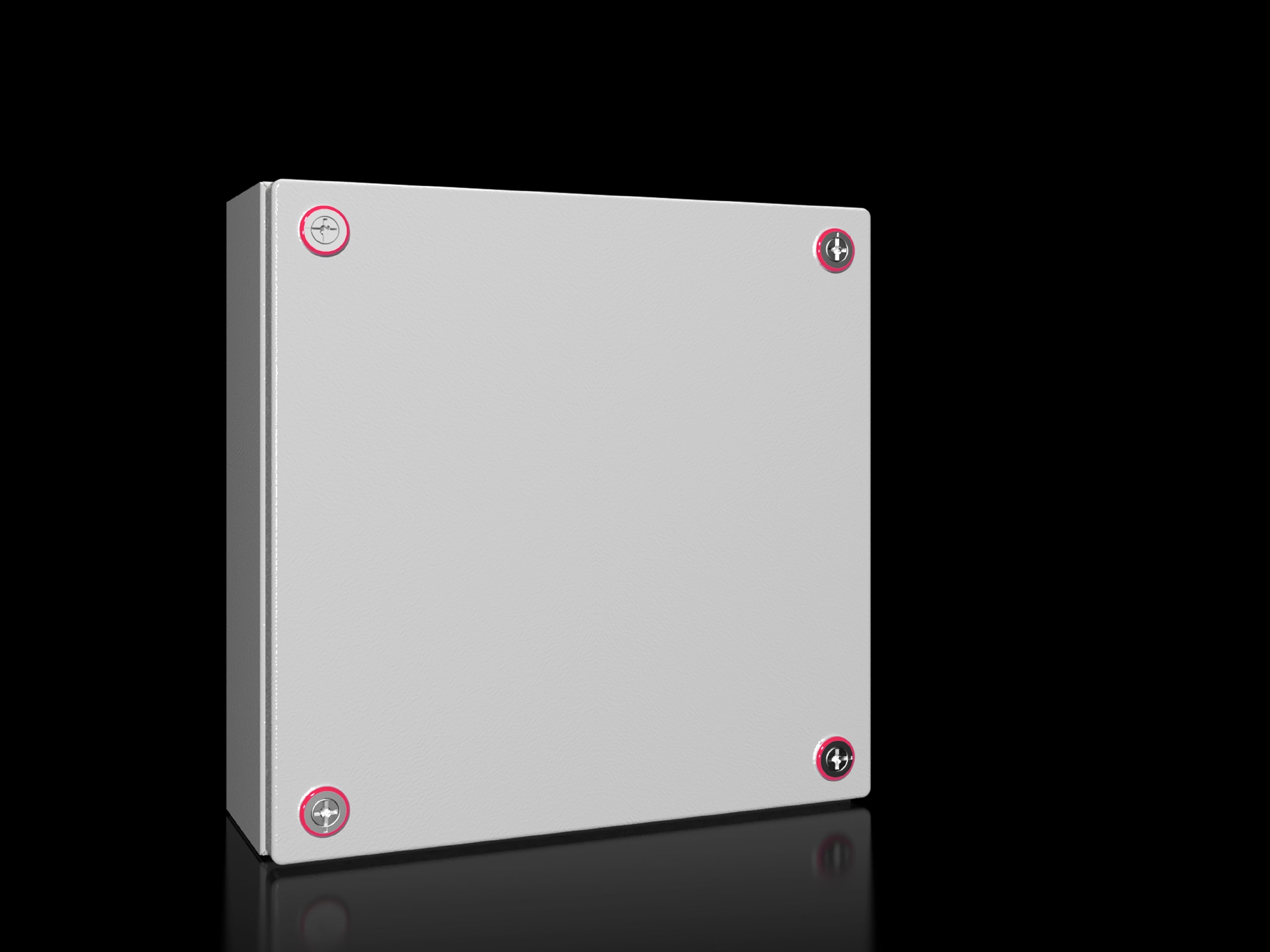

Rittal 1511000 Terminal Box
Part Number # 1511000
SKU # 2381400
$188.50 / Each
Typical price:$235.63 / Each
Rittal 1511000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1511000 |
| SKU #: | 2381400 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Insulation: | Foamed-In PU Seal |
| Series: | KX Series |
| Depth: | 120 mm |
| UNSPSC: | 39121324 |
| UPC: | 04028177816251 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.50 / Each
Typical price:$235.63 / Each
Quantity:
Rittal 1511000 Terminal Box
Brand: Rittal
Part Number: 1511000
Rittal Terminal Box, Small, Series: KX Series, 400 mm Width, 120 mm D, 400 mm Height, NEMA 4, Lock: (4) Mini Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1511000 KX161605SC WHD: 400X400X120, WITHOUT GLAND PLATE
Catalog Description: KX Terminal box, WHD: 400x400x120 mm, carbon steel, without mounting plate, with cover, without gland plate
1511000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1511000 Includes
1.25 mm THK Housing and 1.25 mm THK Cover1511000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without gland plate and mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1511000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1511000 Warranty
24 monthsSKU #2381400Part Number #1511000UNSPSC39121324UPC04028177816251
Image provided may only be a representation of final product and may include optional equipment
