Part Number # 1512000
SKU # 2381413
1512000

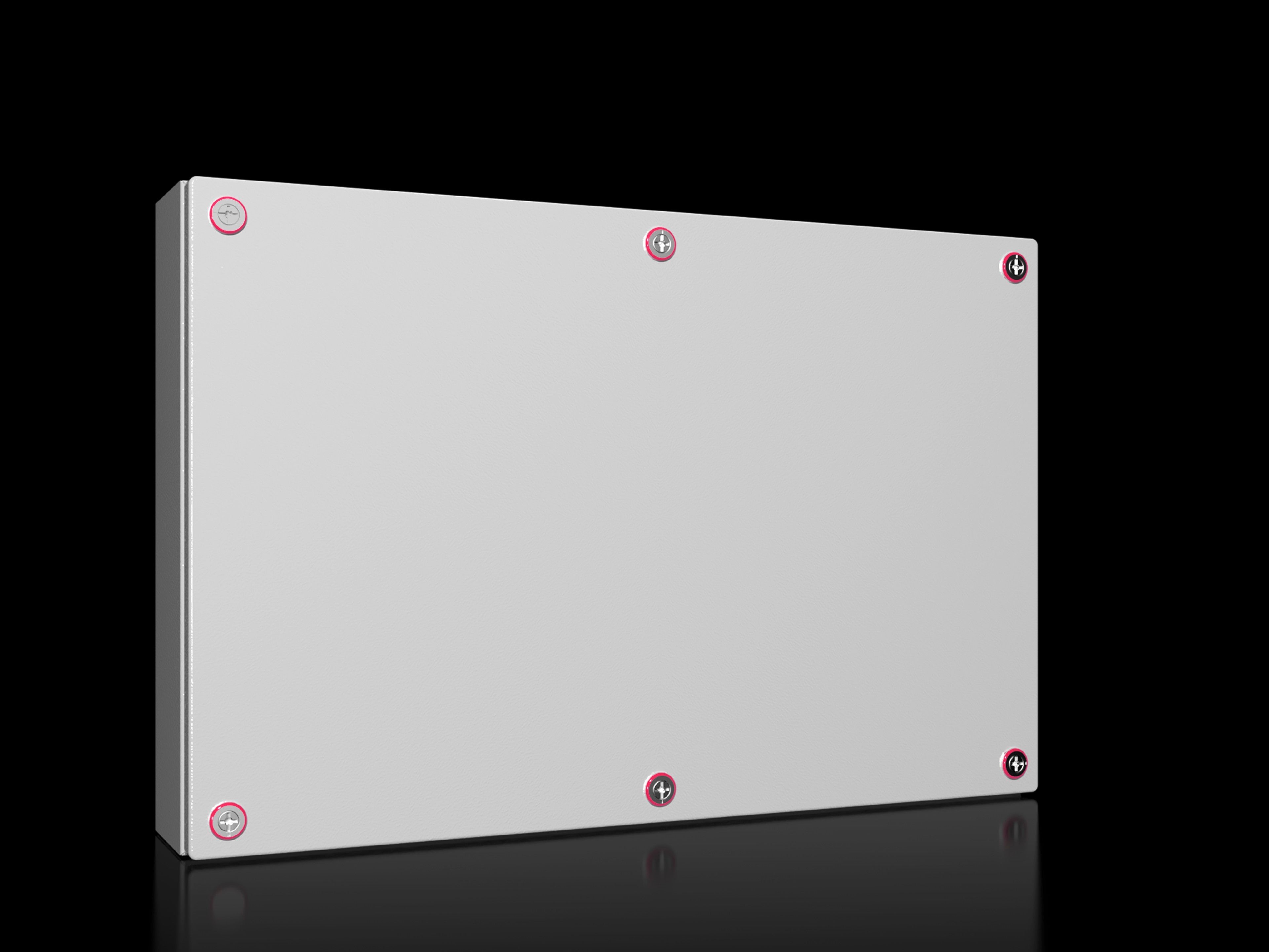

Rittal 1512000 Terminal Box
Part Number # 1512000
SKU # 2381413
$244.48 / Each
Typical price:$305.61 / Each
Rittal 1512000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1512000 |
| SKU #: | 2381413 |
| Depth: | 120 mm |
| Electrical Ratings: | 1000 V AC/1500 V DC |
| Finish: | Powder Coated |
| Height: | 400 mm |
| Insulation: | Foamed-In PU Seal |
| Manufacturer Name: | Rittal |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| NEMA Rating: | NEMA 4 |
| Series: | KX Series |
| Temperature Rating (Degrees F): | -20 to 80 deg C |
| Width: | 600 mm |
| UNSPSC: | 24102001 |
| UPC: | 04028177816268 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$244.48 / Each
Typical price:$305.61 / Each
Quantity:
- Rittal Terminal Box, Small, Series: KX Series, 600 mm Width, 120 mm D, 400 mm Height, NEMA 4, Lock: (6) Mini Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
1512000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1512000 Includes
1.25 mm THK Housing and 1.25 mm THK Cover1512000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without gland plate and mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1512000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1512000 Warranty
24 monthsSKU #2381413Part Number #1512000UNSPSC24102001UPC04028177816268
Image provided may only be a representation of final product and may include optional equipment
