Part Number # 1528000
SKU # 2381404
Brand: Rittal
1528000

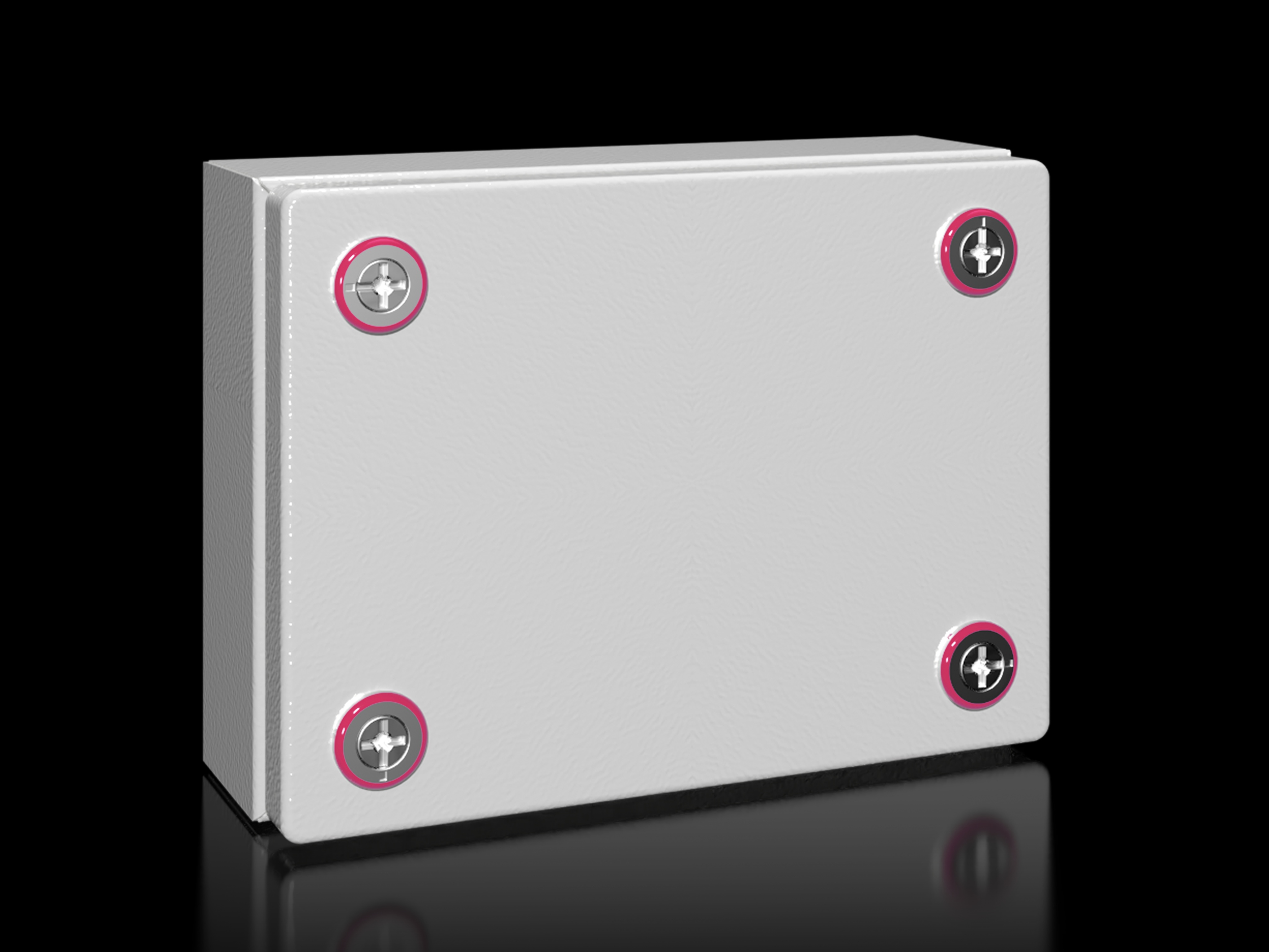

Rittal 1528000 Terminal Box
Part Number # 1528000
SKU # 2381404
$72.66 / Each
Typical price:$90.83 / Each
Rittal 1528000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1528000 |
| SKU #: | 2381404 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Finish: | Powder Coated |
| Insulation: | Foamed-In PU Seal |
| NEMA Rating: | NEMA 4 |
| Series: | KX Series |
| Temperature Rating (Degrees F): | -20 to 80 deg C |
| Type: | Small |
| Country of origin: | DE |
| Depth: | 80 mm |
| Height: | 150 mm |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 200 mm |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121324 |
| UPC: | 00063988991377 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$72.66 / Each
Typical price:$90.83 / Each
Quantity:
Rittal 1528000 Terminal Box
Brand: Rittal
Part Number: 1528000
Rittal Terminal Box, Small, Series: KX Series, 200 mm Width, 80 mm D, 150 mm Height, NEMA 4, Lock: (4) Mini Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1528000 KX080603SC WHD: 200X150X80, WITHOUT GLAND PLATE
Catalog Description: KX Terminal box, WHD: 200x150x80 mm, carbon steel, without mounting plate, with cover, without gland plate
1528000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1528000 Includes
1.25 mm THK Housing and 1.25 mm THK Cover1528000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without gland plate and mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1528000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1528000 Warranty
24 monthsSKU #2381404Part Number #1528000UNSPSC39121324UPC00063988991377
Image provided may only be a representation of final product and may include optional equipment
