Part Number # 1529000
SKU # 2385299
Image Disclaimers Message
Brand: Rittal
1529000

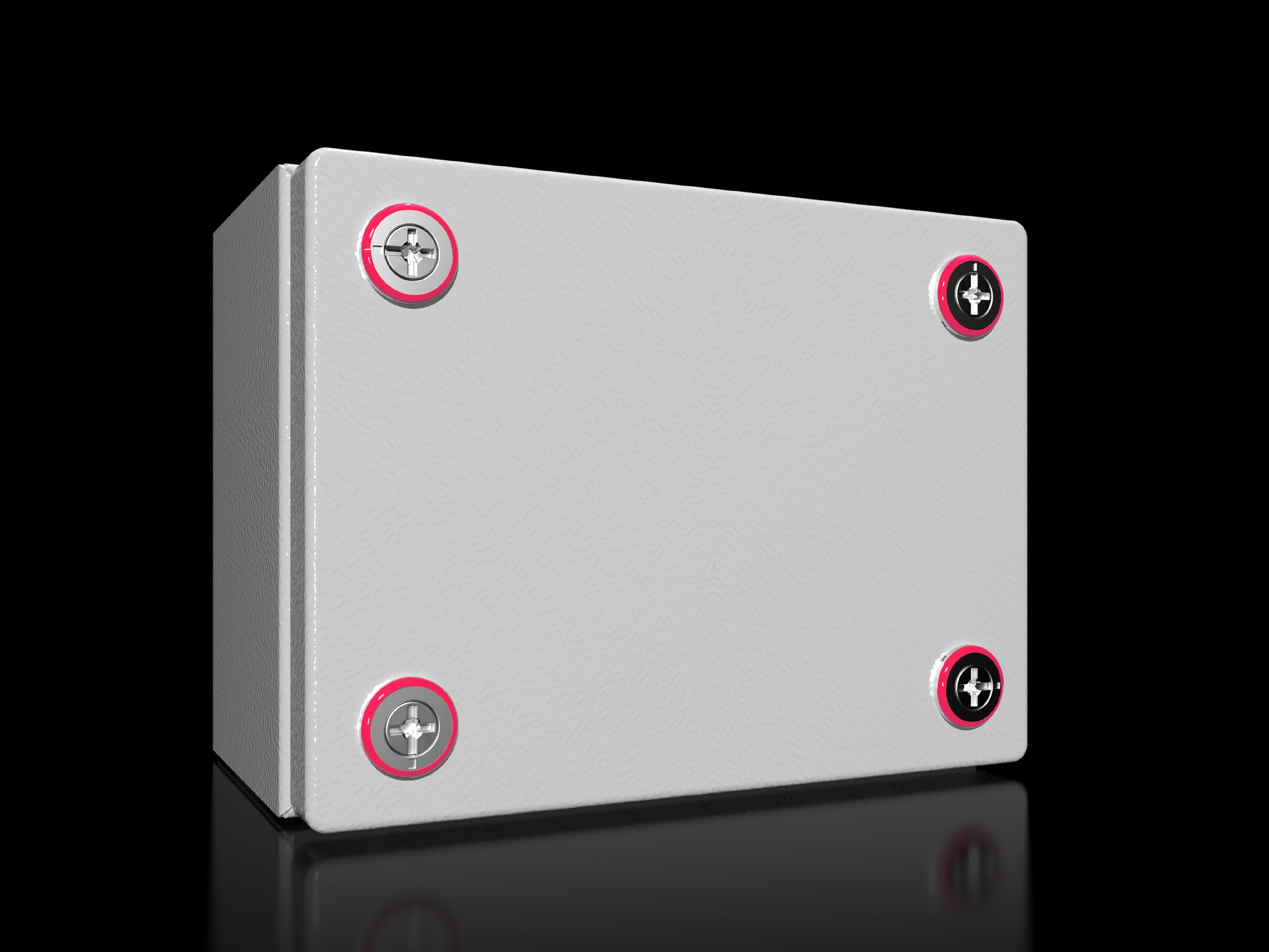

Rittal 1529000 Terminal Box
Part Number # 1529000
SKU # 2385299
$83.88 / Each
Typical price:$104.84 / Each
Rittal 1529000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1529000 |
| SKU #: | 2385299 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Finish: | Powder Coated |
| Insulation: | Foamed-In PU Seal |
| NEMA Rating: | NEMA 4 |
| Series: | KX Series |
| Temperature Rating (Degrees F): | -20 to 80, -20 to 80 deg C |
| Type: | Small |
| Country of origin: | DE |
| Depth: | 120, 120 mm |
| Height: | 150, 150 mm |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 200, 200 mm |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121324 |
| UPC: | 00063988991383 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.88 / Each
Typical price:$104.84 / Each
Quantity:
- Rittal Terminal Box, Small, Series: KX Series, 200 mm Width, 120 mm D, 150 mm Height, NEMA 4, Lock: (4) Mini Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
1529000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1529000 Includes
1.25 mm THK Housing and 1.25 mm THK Cover1529000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without gland plate and mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1529000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1529000 Warranty
24 monthsSKU #2385299Part Number #1529000UNSPSC39121324UPC00063988991383
