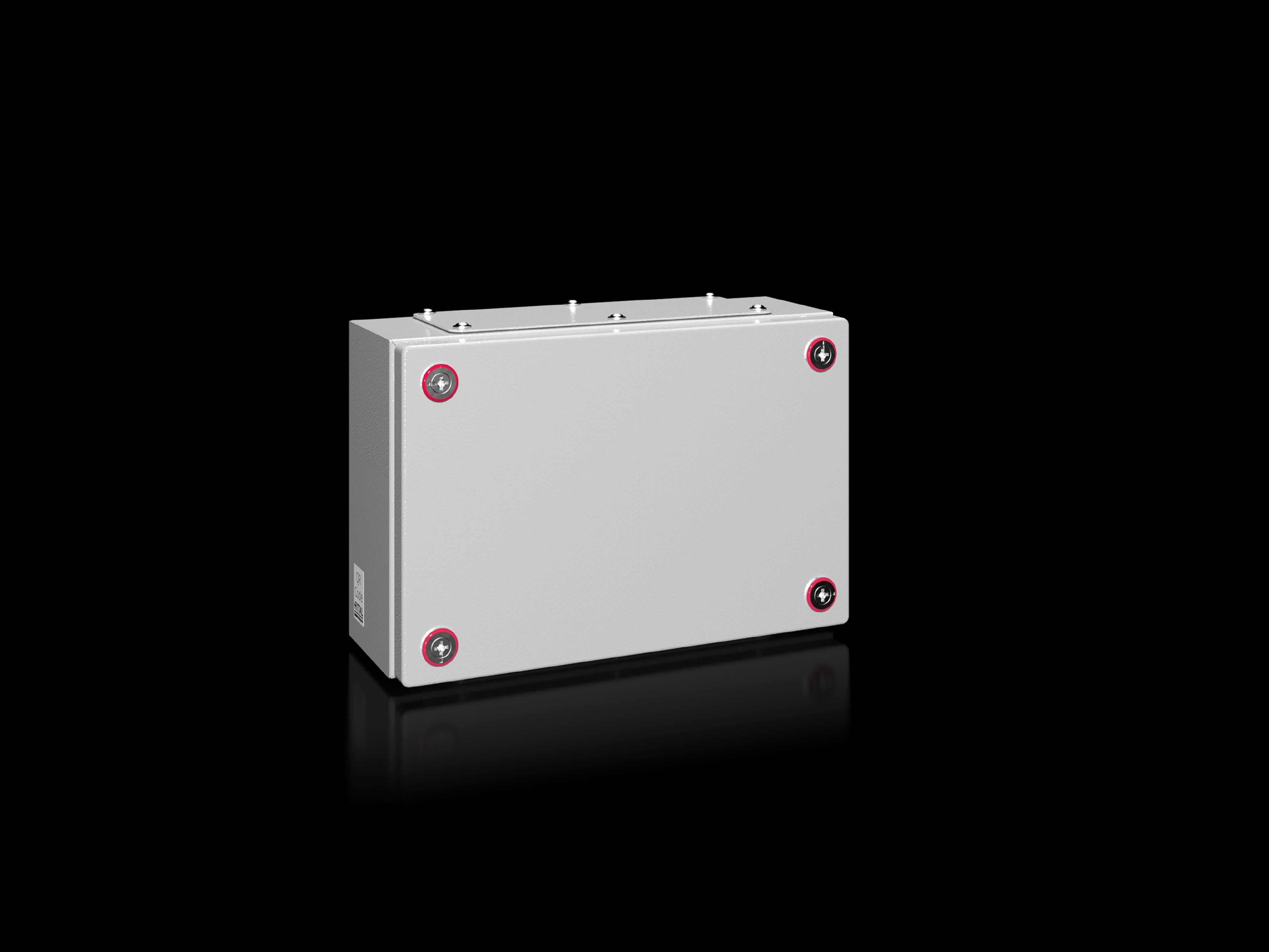

Rittal 1531000 KX Series Small Terminal Box With (2) Gland Plate
Part Number # 1531000
SKU # 2397262

1531000
Rittal 1531000 KX Series Small Terminal Box With (2) Gland Plate
Part Number # 1531000
SKU # 2397262
Rittal 1531000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1531000 |
| SKU #: | 2397262 |
| Electrical Ratings: | 1000 V AC/1500 V DC |
| Insulation: | Foamed-In PU Seal |
| Series: | KX Series |
| UNSPSC: | 39121324 |
| UPC: | 00063988991400 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Rittal 1531000 KX Series Small Terminal Box With (2) Gland Plate
Brand: Rittal
Part Number: 1531000
Rittal Terminal Box, Small, Series: KX Series, 300 mm Width, 120 mm D, 200 mm Height, NEMA 12, Lock: (4) Mini Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1531000 KX120805SGC WHD: 300X200X120, WITH GLAND PLATE
Catalog Description: KX Terminal box, WHD: 300x200x120 mm, carbon steel, without mounting plate, with cover, with gland plate
1531000 Application
For predominantly indoors, protection against dust deposits, foreign bodies and non-corrosive dripping liquids1531000 Includes
1.25 mm THK Housing, 1.25 mm THK Cover, Seals, Assembly Components and Mini-Fasteners1531000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1531000 Standards
cUL Listed|CSA Certified|IP 55|RoHS Compliant|UL Listed1531000 Warranty
24 monthsSKU #2397262Part Number #1531000UNSPSC39121324UPC00063988991400
Image provided may only be a representation of final product and may include optional equipment
