Rittal 1532000 Terminal Box
Part Number # 1532000
SKU # 2384492
Rittal 1532000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1532000 |
| SKU #: | 2384492 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Insulation: | Foamed-In PU Seal |
| Series: | KX Series |
| Depth: | 120, 120 mm |
| Height: | 200, 200 mm |
| UNSPSC: | 39121324 |
| UPC: | 00063988991402 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

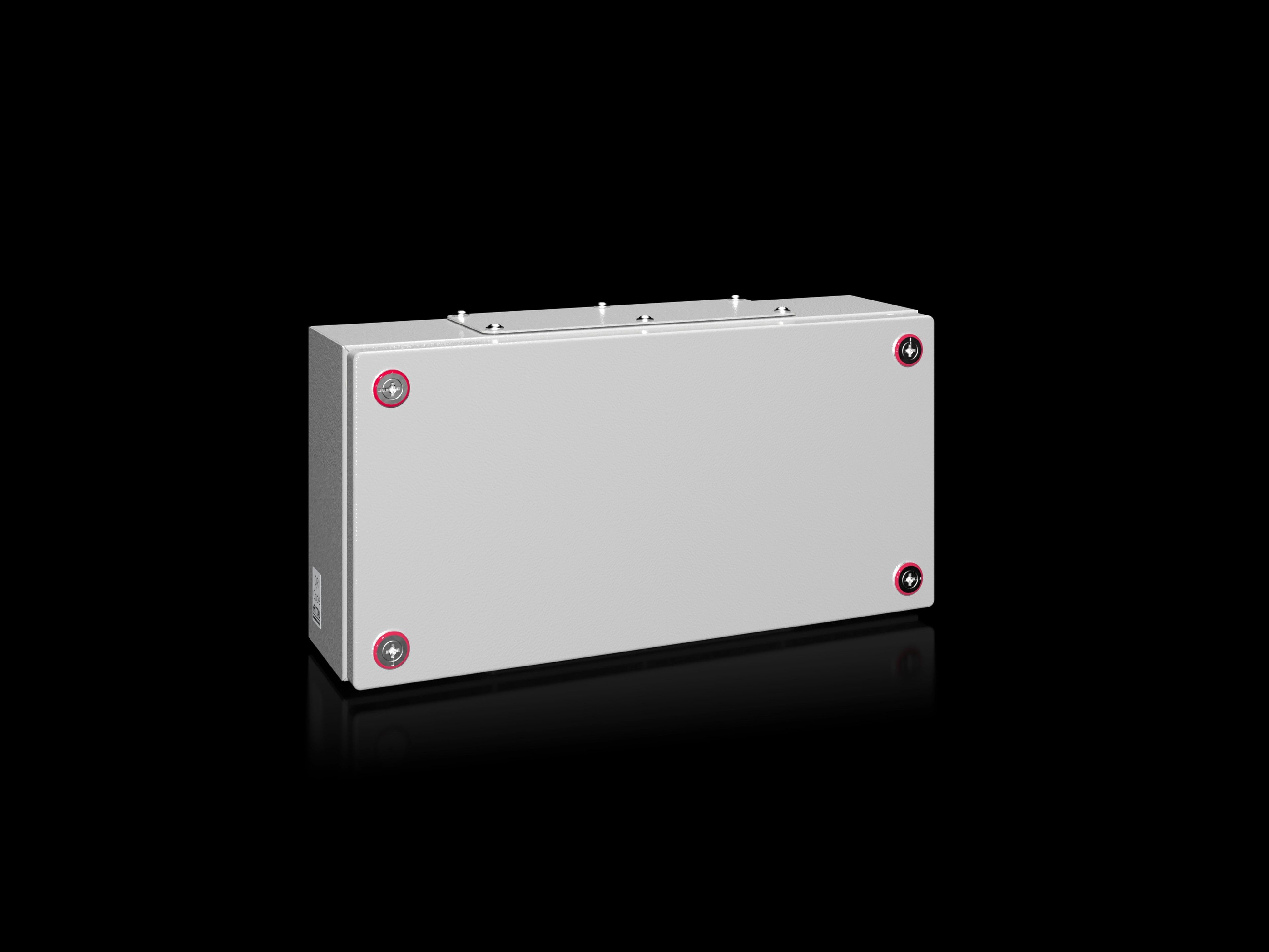

Rittal 1532000 Terminal Box
Brand: Rittal
Part Number: 1532000
Rittal Terminal Box, Small, Series: KX Series, 400 mm Width, 120 mm D, 200 mm Height, NEMA 12, Lock: (4) Mini Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1532000 (N) KX160805SGC WHD: 400X200X120, WITH GLAND PLATE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: KX Terminal box, WHD: 400x200x120 mm, carbon steel, without mounting plate, with cover, with gland plate
1532000 Application
For predominantly indoors, protection against dust deposits, foreign bodies and non-corrosive dripping liquids1532000 Includes
1.25 mm THK Housing, 1.25 mm THK Cover, Seals, Assembly Components and Mini-Fasteners1532000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1532000 Standards
cUL Listed|CSA Certified|IP 55|RoHS Compliant|UL Listed1532000 Warranty
24 monthsSKU #2384492Part Number #1532000UNSPSC39121324UPC00063988991402
Image provided may only be a representation of final product and may include optional equipment
