Brand: Rittal
1535000

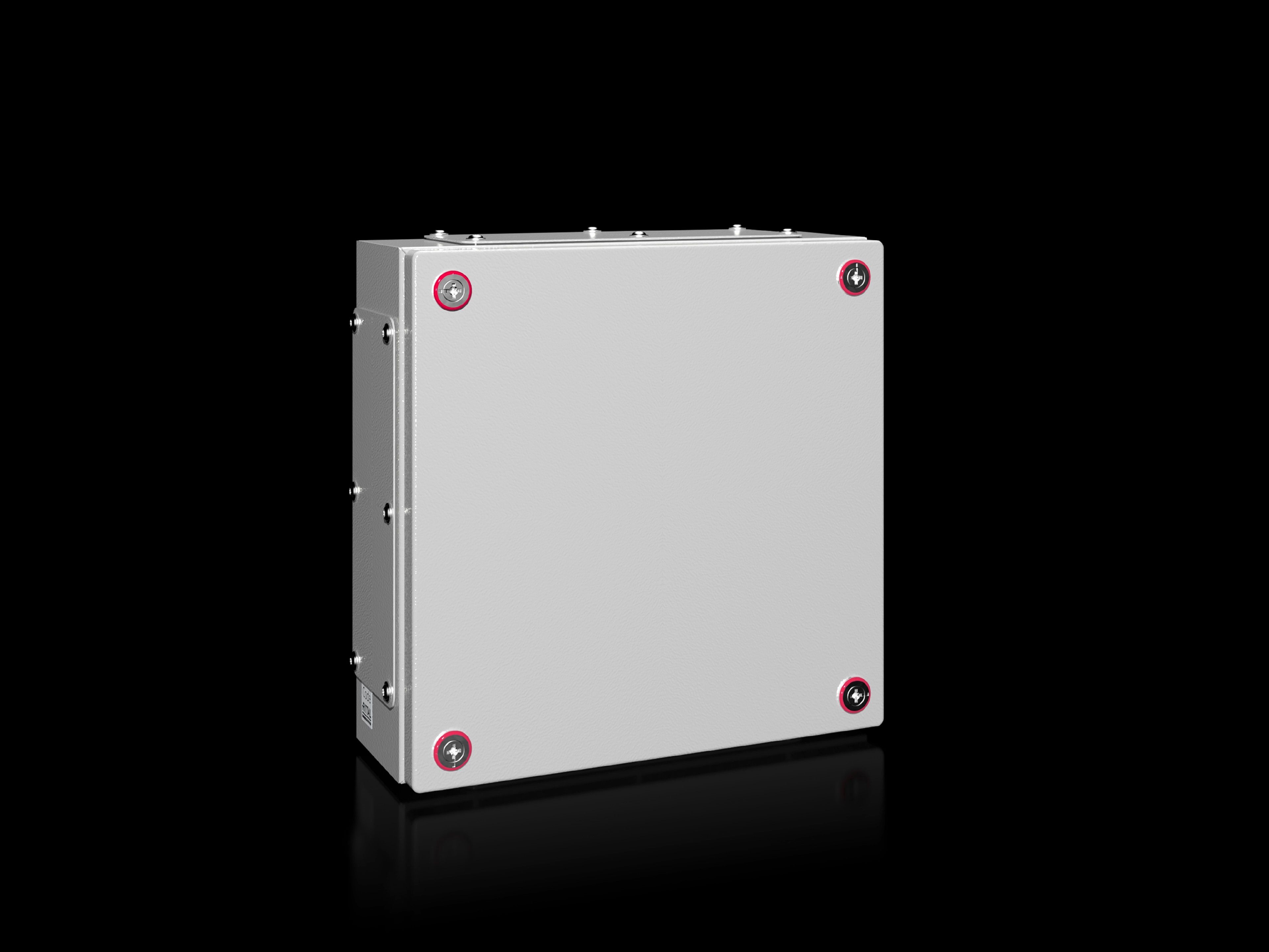

Rittal 1535000 Terminal Box
Part Number # 1535000
SKU # 2381406
$170.40 / Each
Typical price:$213.00 / Each
Rittal 1535000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1535000 |
| SKU #: | 2381406 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Finish: | Powder Coated |
| Insulation: | Foamed-In PU Seal |
| NEMA Rating: | NEMA 12 |
| Series: | KX Series |
| Temperature Rating (Degrees F): | -20 to 80, -20 to 80 deg C |
| Type: | Small |
| Country of origin: | DE |
| Depth: | 120, 120 mm |
| Height: | 300, 300 mm |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Width: | 300, 300 mm |
| Manufacturer Name: | Rittal |
| UNSPSC: | 39121324 |
| UPC: | 00063988991401 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$170.40 / Each
Typical price:$213.00 / Each
Quantity:
- Rittal Terminal Box, Small, Series: KX Series, 300 mm Width, 120 mm D, 300 mm Height, NEMA 12, Lock: (4) Mini Cam, 1000 V AC/1500 V DC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
1535000 Application
For predominantly indoors, protection against dust deposits, foreign bodies and non-corrosive dripping liquids1535000 Includes
1.25 mm THK Housing, 1.25 mm THK Cover, Seals, Assembly Components and Mini-Fasteners1535000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The mini cam lock may be fitted without using tools and ensures that the cover is securely seated and centered when latching
- Without mounting plate
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1535000 Standards
cUL Listed|CSA Certified|IP 55|RoHS Compliant|UL Listed1535000 Warranty
24 monthsSKU #2381406Part Number #1535000UNSPSC39121324UPC00063988991401
