1556000

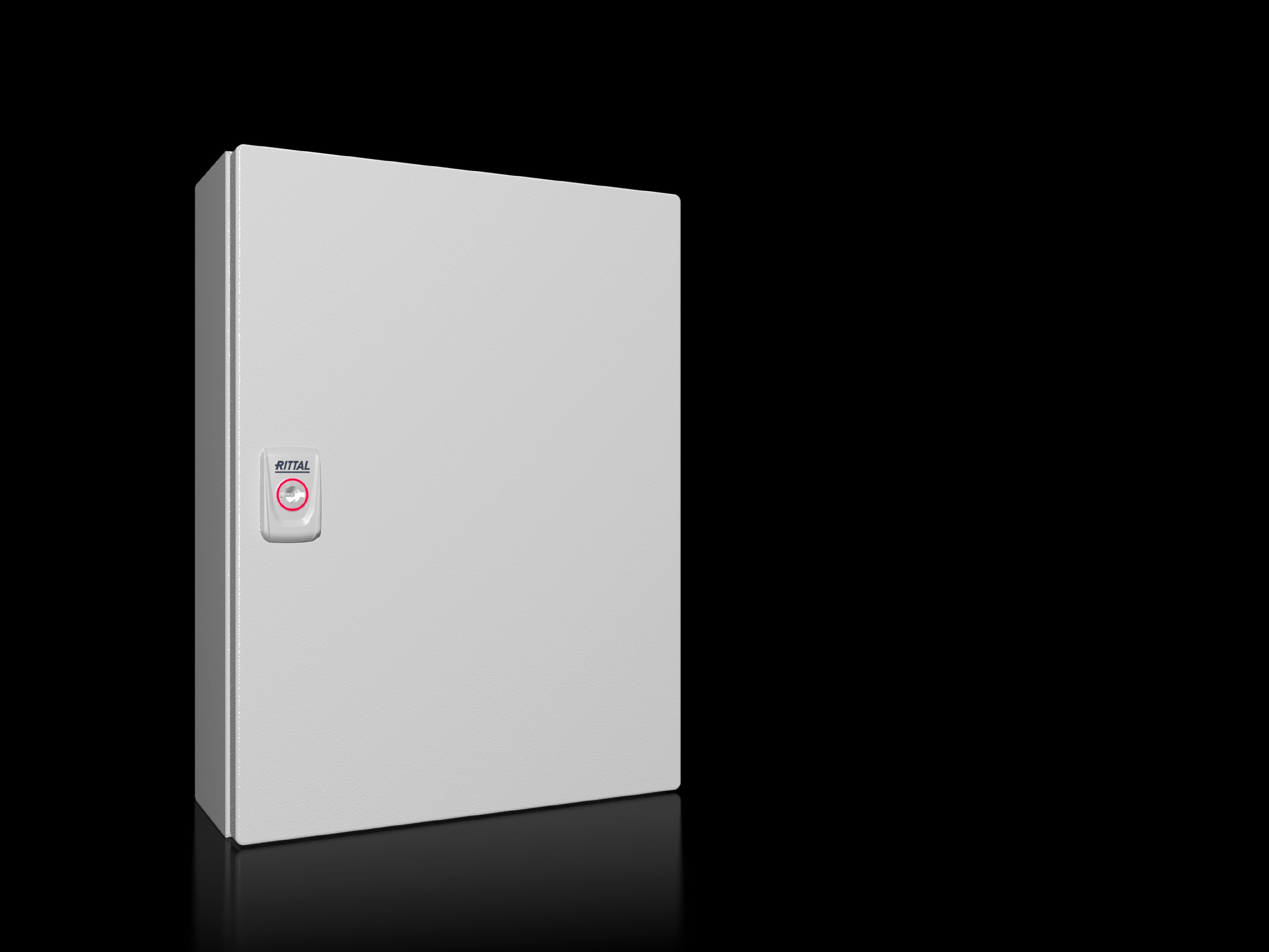

Rittal 1556000 E-Box
Part Number # 1556000
SKU # 2381411
Rittal 1556000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1556000 |
| SKU #: | 2381411 |
| Electrical Ratings: | 1000 V AC/1500 V DC |
| Insulation: | Foamed-In PU Seal |
| Series: | KX Series |
| Height: | 15.7 in |
| UNSPSC: | 39121324 |
| UPC: | 00063988991421 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Rittal 1556000 E-Box
Brand: Rittal
Part Number: 1556000
Rittal, 1556000, E-Box, Small, Series: KX Series, 300 mm Width, 120 mm Depth, 15.7 in Height, NEMA 4 NEMA Rating, Lock: 3 mm Double-Bit Cam, 1000 V AC/1500 V DC Electrical Rating, Foamed-In PU Seal Insulation, Wall Mounting, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1556000 KX161205HC WHD: 300 X 400 X 120
Catalog Description: KX E-Box, WHD: 300x400x120 mm, carbon steel, with mounting plate, with door
1556000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1556000 Includes
275 mm W x 385 mm H x 2 mm THK Mounting Plate, Housing and 180 deg Swing Angle 1.25 THK Door1556000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The mounting plate is simply slotted in from the front and secured directly infront of the rear panel in a space-saving solution
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The 180 deg hinges are already prefitted on the door ready to use, the cam locks may be attached without the use of tools and the door is easily fitted
- Dipcoat primed powder-coated on the outside textured paint housing/door
1556000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1556000 Warranty
24 monthsSKU #2381411Part Number #1556000UNSPSC39121324UPC00063988991421
Image provided may only be a representation of final product and may include optional equipment
