Part Number # 1575000
SKU # 2377315
1575000
Rittal 1575000 E-Box
Part Number # 1575000
SKU # 2377315
$84.87 / Each
Typical price:$148.53 / Each
Rittal 1575000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1575000 |
| SKU #: | 2377315 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Insulation: | Foamed-In PU Seal |
| Series: | KX Series |
| Depth: | 155 mm |
| UNSPSC: | 39121324 |
| UPC: | 04028177816619 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.87 / Each
Typical price:$148.53 / Each
Quantity:
Rittal 1575000 E-Box
Brand: Rittal
Part Number: 1575000

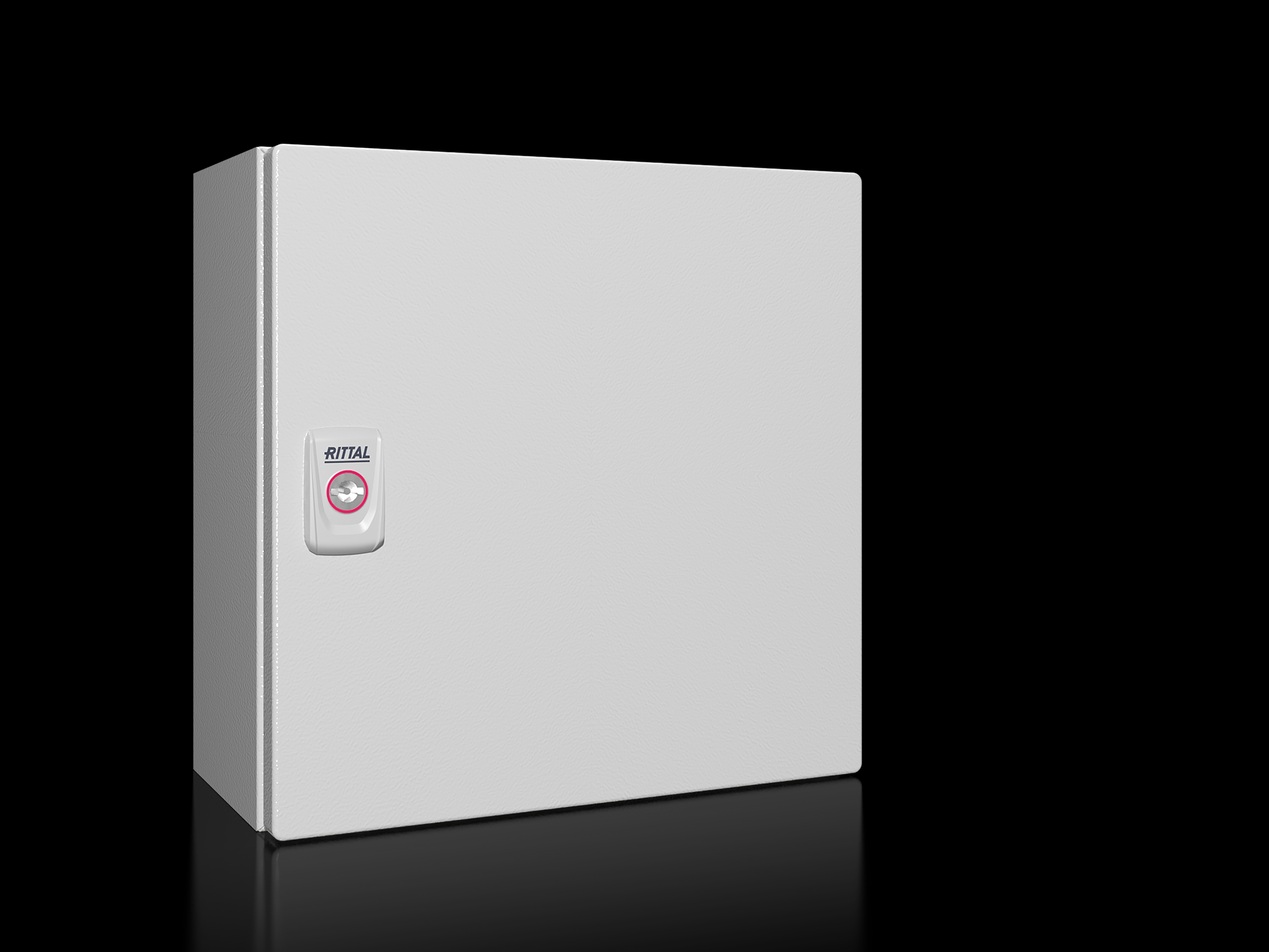

Rittal E-Box, Small, Series: KX Series, 300 mm Width, 155 mm D, NEMA 4, Lock: 3 mm Double-Bit Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1575000 KX121206HC WHD: 300 X 300 X 155 KX E-BOX
Catalog Description: KX E-Box, WHD: 300x300x155 mm, carbon steel, with mounting plate, with door
1575000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1575000 Includes
275 mm W x 285 mm H x 2 mm THK Mounting Plate, Housing and 180 deg Swing Angle 1.25 THK Door1575000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The mounting plate is simply slotted in from the front and secured directly infront of the rear panel in a space-saving solution
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The 180 deg hinges are already prefitted on the door ready to use, the cam locks may be attached without the use of tools and the door is easily fitted
- Dipcoat primed powder-coated on the outside textured paint housing/door
1575000 Standards
cUL Listed|CSA Certified|IP 66|RoHS Compliant|UL Listed1575000 Warranty
24 monthsSKU #2377315Part Number #1575000UNSPSC39121324UPC04028177816619
Image provided may only be a representation of final product and may include optional equipment
