Rittal 1613000 Bus Enclosure
Part Number # 1613000
SKU # 2401030
$513.73 / Each
Typical price:$642.17 / Each
Rittal 1613000 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 1613000 |
| SKU #: | 2401030 |
| Electrical Ratings: | 1000 V AC/1500 V DC, 1000 VAC/1500 VDC |
| Insulation: | Foamed-In PU Seal |
| Series: | KX Series |
| Depth: | 155 mm |
| UNSPSC: | 39121324 |
| UPC: | 00063988991457 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$513.73 / Each
Typical price:$642.17 / Each
Quantity:
Rittal 1613000 Bus Enclosure
Brand: Rittal
Part Number: 1613000
Rittal Bus Enclosure, Small, Series: KX Series, 800 mm Width, 155 mm D, NEMA 4, Lock: Mini Cam, 1000 VAC/1500 VDC, Foamed-In PU Seal, Wall Mount, -20 to 80 deg C, Carbon Steel, Powder Coated
Additional Description: RTL -1613000 (N) KX123206WC WHD: 800 X 300 X 155 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: KX Bus enclosure, WHD: 800x300x155 mm, carbon steel, with solid base, with hinged cover and viewing window
1613000 Application
For indoor/outdoor use, protection against rain, foreign bodies, splashed water and hosed water and against damage caused by icing on the exterior of the enclosure1613000 Includes
Mini-Fasteners and Sight Glass in Cover1613000 Item Features
- All enclosure panels may be taken directly from the packaging, without dismantling and machined
- The support rails may optionally be fitted on the integral perforated mounting strip or to maximize the enclosure depth, directly onto the rear wall of the enclosure
- Wall mounting brackets are easily secured from the outside with a self-tapping screw
- A QR code on the enclosure, door or cover and mounting plate allows seamless monitoring, from receipt of incoming goods through to delivery of the finished product
- Earthing points accessible from the front facilitate fast, secure mounting of the earth straps
- The 180 deg hinges are already prefitted on the door ready to use, the mini cam locks may be attached without the use of tools and the door is easily fitted
- Dipcoat primed powder-coated on the outside textured paint housing/cover
1613000 Standards
cUL Listed|CSA Certified|IP 65|RoHS Compliant|UL Listed1613000 Warranty
24 monthsSKU #2401030Part Number #1613000UNSPSC39121324UPC00063988991457

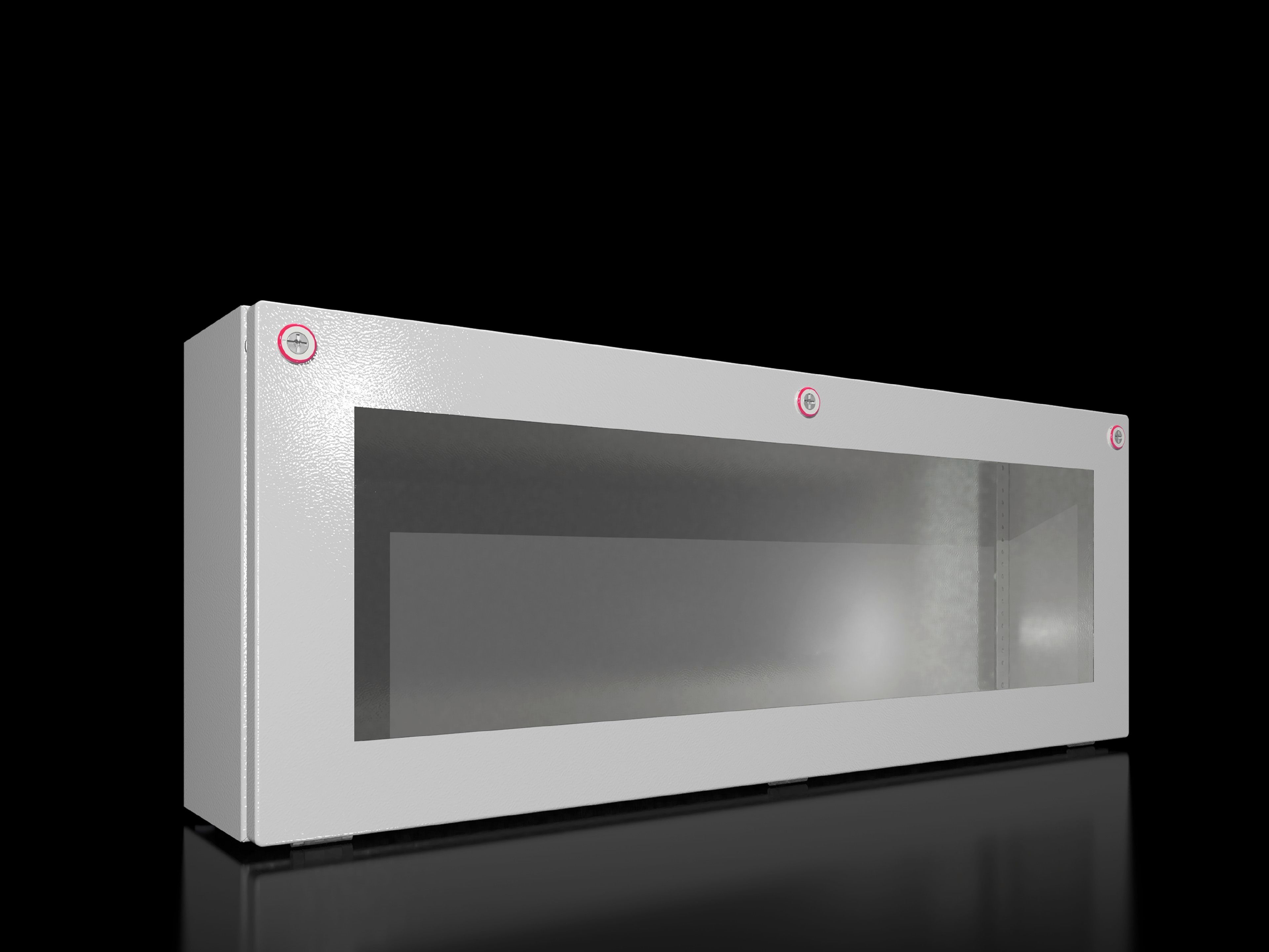

Image provided may only be a representation of final product and may include optional equipment
