2735520

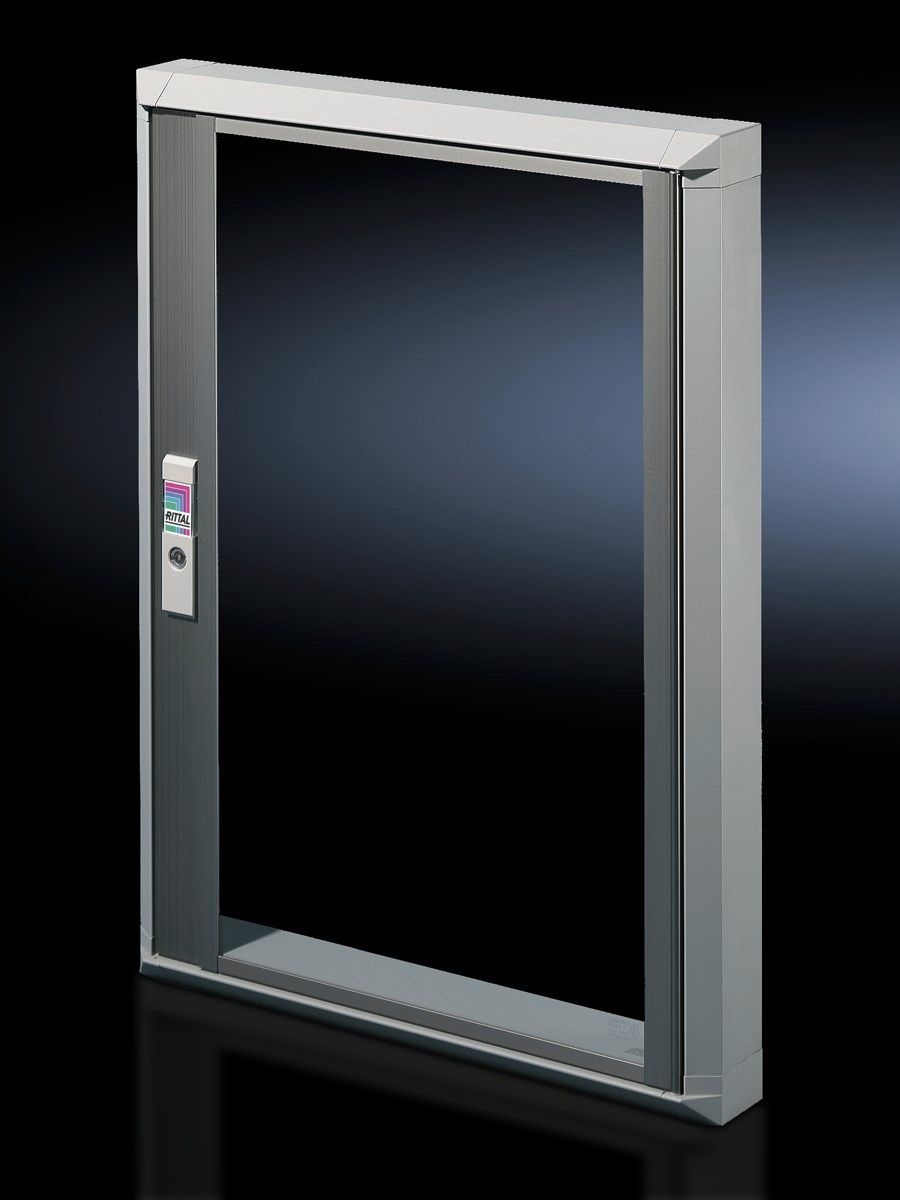

Rittal 2735520 System Window
Part Number # 2735520
SKU # 2192491
Rittal 2735520 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 2735520 |
| SKU #: | 2192491 |
| Dimensions: | 19 in H x 20 in W x 1.9 in D |
| Finish: | Natural Anodized/Powder Coated |
| Suitable For Use With: | FT, VX, TS8, SE8 Series 600 mm W Enclosure |
| Type: | 30-Section |
| UNSPSC: | 39121321 |
| UPC: | 00639889810464 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 2735520 System Window
Brand: Rittal
Part Number: 2735520
Rittal System Window, 30-Section, 398 mm H x 363 mm W Window, NEMA 12/IP54, For Use With: FT, VX, TS8, SE8 Series 600 mm W Enclosure, Extruded Aluminum, Natural Anodized/Powder Coated, Light Gray, 19 in H x 20 in W x 1.9 in D Dimensions
Additional Description: RTL -2735520 (N) 0473H0702W FT VIEWING WINDOW TYPE 30 FRAME, RAL7036 WINDOW 502(19.8), TYPE 30 FRAME NON-CANCELABLE, NON-RETURNABLE
Catalog Description: FT System window, for TS, SE, 30 section, WHD: 500x470x47 mm, for W: 600 mm
2735520 Application
To conceal display and operating instruments or cutouts and to protect against dirt and liquids as well as unauthorized access2735520 Includes
Base Frame, Viewing Window2735520 Item Features
- Utilized to cover display and operating instruments or cut outs
- Provide protection from dirt and moisture as well as unauthorized access
- Readily height adjustable frame
- Prevents dirt from landing on the seal
- Protects the glass from being lifted out
- Prevents the ingress of dirt and moisture when opening the window
- Stabilizes the door cutout
- Conceals the cut edge
- There is no dirt on the seal, the glass is protected from being lifted out, dirt cannot drop inside and moisture cannot run behind the window when opening
- Viewing window made from single-pane safety glass, high level of resistance to solvents and scratches, anti-static, reduced risk of injury if broken
- Viewing window hinge with 180 deg opening angle, easily inserted
- Extruded aluminum section with die cast zinc corner pieces and single-pane safety glass
- Powder coated base frame, natural anodized hinge and lock section
2735520 Standards
RoHS Compliant|EAC Certified|IEC 60529SKU #2192491Part Number #2735520UNSPSC39121321UPC00639889810464
Image provided may only be a representation of final product and may include optional equipment
