Part Number # 3185530
SKU # 2371592
3185530

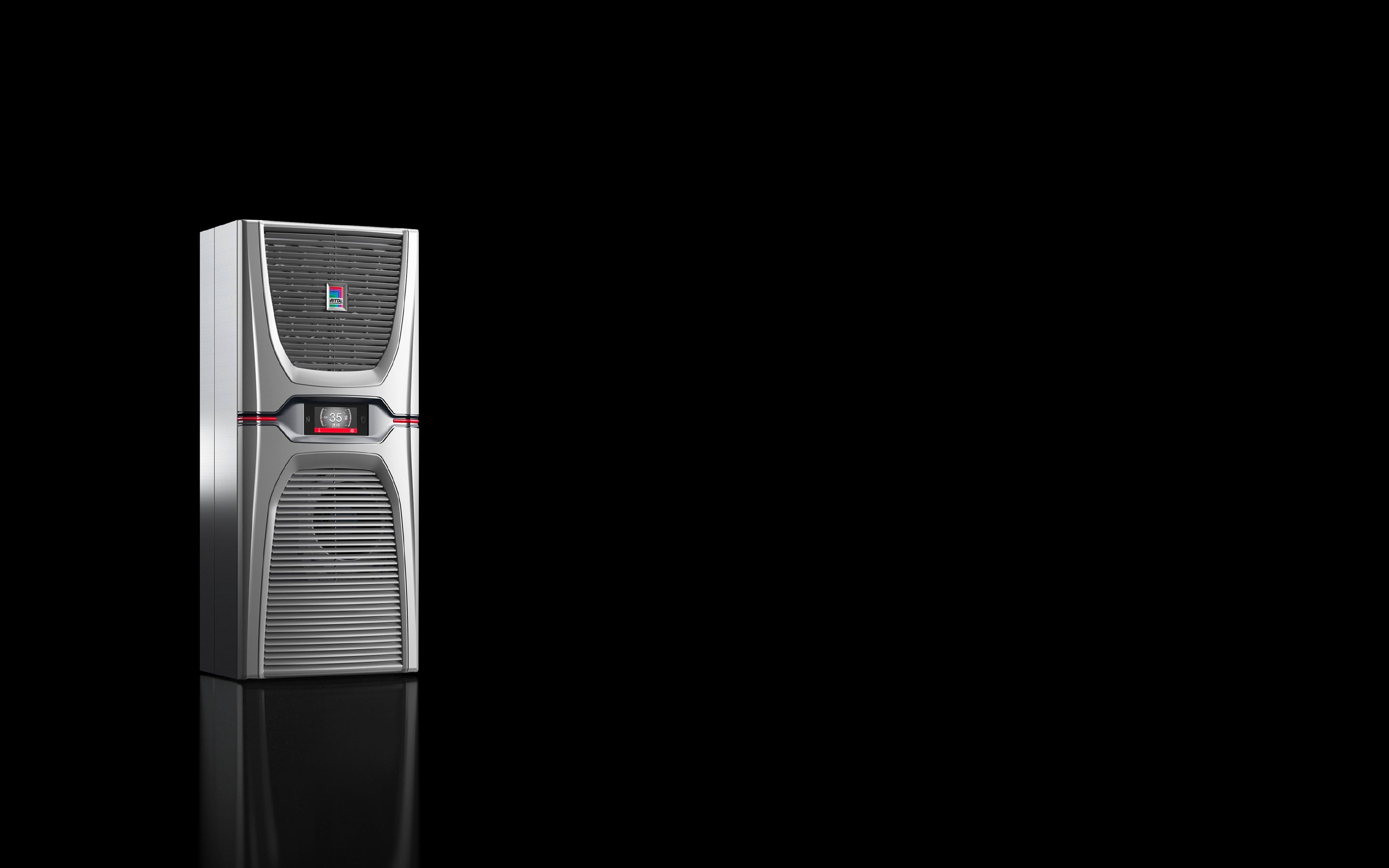

Rittal 3185530 Cooling Unit
Part Number # 3185530
SKU # 2371592
Rittal 3185530 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3185530 |
| SKU #: | 2371592 |
| Amperage Rating: | 6.2/1.1 A |
| Dimensions: | 950 mm H x 400 mm W x 310 mm D |
| Flow Rate: | 700 cu-m/hr Internal, 895 cu-m/hr External |
| Series: | Blue e+ |
| Type: | 1/3-Phase |
| UNSPSC: | 40101701 |
| UPC: | 00028177323001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 3185530 Cooling Unit
Brand: Rittal
Part Number: 3185530
Rittal Cooling Unit, 1/3-Phase, Series: Blue e+, 110 to 240/380 to 480 VAC, 6.2/1.1 A, 0.54/0.61 kW, 50/60 Hz, 5119 Btu Capacity, IP55, 700 cu-m/hr Internal, 895 cu-m/hr External, -20 to 60 deg C, Wall Mount, Stainless Steel, Gray Aluminum, 950 mm H x 400 mm W x 310 mm D
Additional Description: RTL -3185530 BLUE E+ AC 5119BTU MULTIVOLTAGE 50-60HZ SSL SIDEMTG, COMFORT CONTR, RAL9007, NANOCOATED CONDENSER MULTIVOLTAGE 50-60HZ SSL 110 TO 240/380 TO 480 VAC, 6.2/1.1 A, 700 CU-M/HR INTERNAL, 895 CU-M/HR EXTERNAL, IP55 ENCLOSURE, 5119 BTU SIDEMTG, COMFORT CONTR, RAL9007 NANOCOATED CONDENSER
Catalog Description: SK cooling unit Blue e+, wall-mounted, 1.6 kW, 110-240 V, 1PH, 380-480 V, 3PH, 50-60 Hz, Stainless steel, WHD: 400 x 950 x 310 mm
3185530 Includes
Assembly Components, Wired Ready for Connection (Plug-In Terminal Strip)3185530 Item Features
- An average of 75% energy savings due to speed-regulated components and heat pipe technology
- Intuitive operation due to touch display and intelligent interfaces
- Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
- Suitable for international use due to a unique multi-voltage capability
- 0.54 kW at 50/60 Hz, 0.61 kW at 50/60 Hz power rating
- 6.2 A at 110 VAC, 1.1 A at 380 VAC input ampere range
3185530 Standards
RoHS Compliant|UL/cUL ListedSKU #2371592Part Number #3185530UNSPSC40101701UPC00028177323001
Image provided may only be a representation of final product and may include optional equipment
