3185730

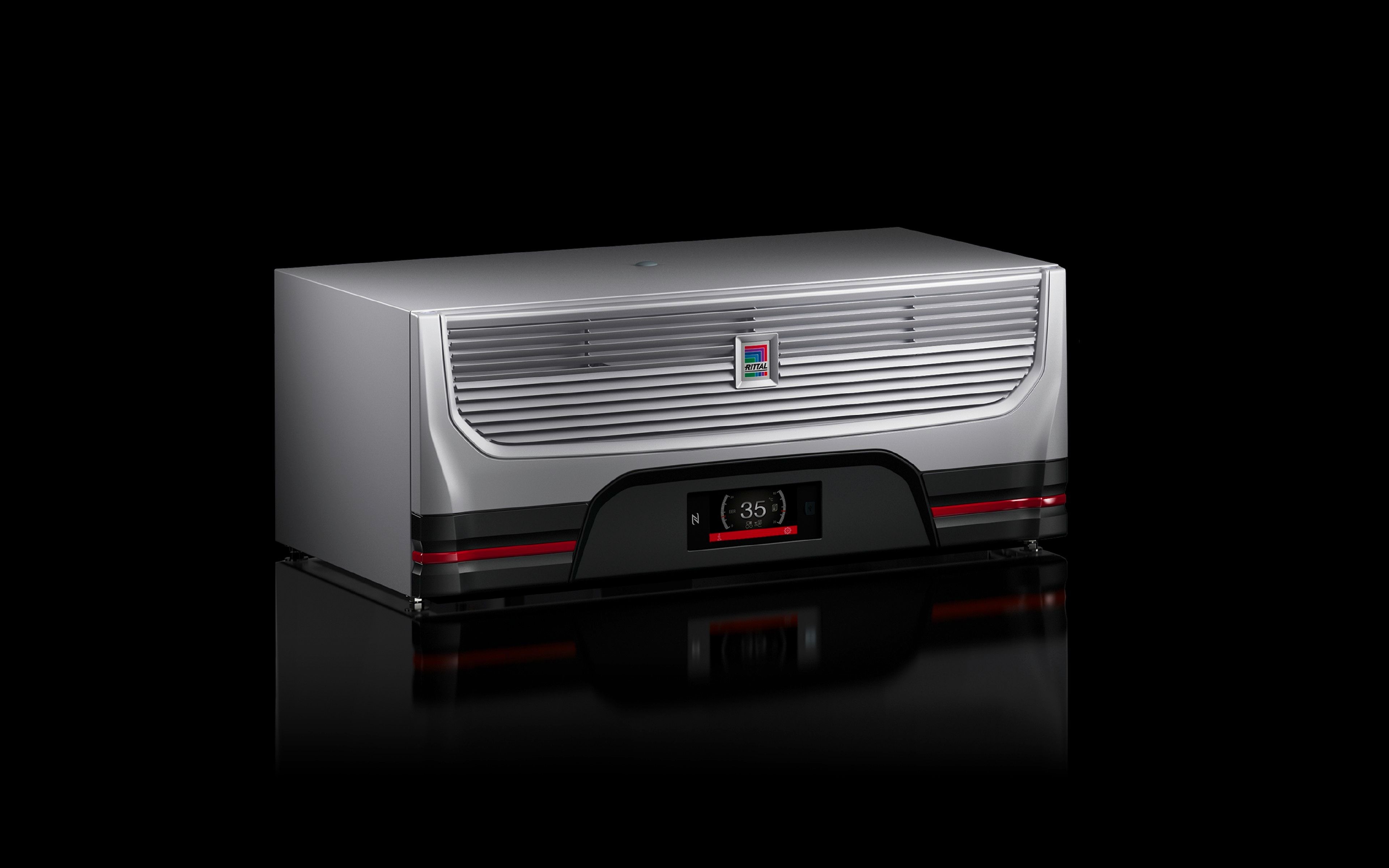

Rittal 3185730 Cooling Unit
Part Number # 3185730
SKU # 2368637
Rittal 3185730 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3185730 |
| SKU #: | 2368637 |
| Amperage Rating: | 6.8/1.2 A |
| Dimensions: | 308 mm H x 700 mm W x 560 mm D |
| Series: | Blue e+ |
| Mounting type: | Roof |
| UNSPSC: | 40101701 |
| UPC: | 00063988991171 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 3185730 Cooling Unit
Brand: Rittal
Part Number: 3185730
Rittal Cooling Unit, 1/3-Phase, Series: Blue e+, 110 to 240/380 to 480 V AC, 6.8/1.2 A, 0.67/0.61 kW, 50/60 Hz, 4436 Btu Capacity, IP54, -20 to 55 deg C, Roof Mount, Carbon Steel, Light Gray, 308 mm H x 700 mm W x 560 mm D
Additional Description: RTL -3185730 BLUE E+ AC 4436BTU MULTIVOLTAGE 50-60HZ TYPE 12 ROOF MOUNT, COMFORT CONTR, RAL7035, NANOCOATED CONDENSER MULTIVOLTAGE 50-60HZ TYPE 12 TYPE 12 Roof-mounted Blue e+ cooling unit Total cooling output 1.30 kW
Catalog Description: SK roof-mounted cooling unit Blue e+, carbon steel, cooling module, 1.3 kW, 110-240 V, 1PH, 50/60 Hz, 380-480 V, 3PH, 50/60 Hz, WHD: 700 x 308 x 560 mm
3185730 Includes
Assembly Components, Wired Ready for Connection, Folded Filter3185730 Item Features
- An average of 75% energy savings due to speed-regulated components and heat pipe technology
- Intuitive operation due to touch display and intelligent interfaces
- Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
- Suitable for international use due to a unique multi-voltage capability
- 0.67 kW at 50/60 Hz, 0.61 kW at 50/60 Hz power rating
- 6.8 A at 110 VAC, 1.2 A at 380 VAC input ampere range
3185730 Standards
RoHS Compliant|UL ListedSKU #2368637Part Number #3185730UNSPSC40101701UPC00063988991171
Image provided may only be a representation of final product and may include optional equipment
