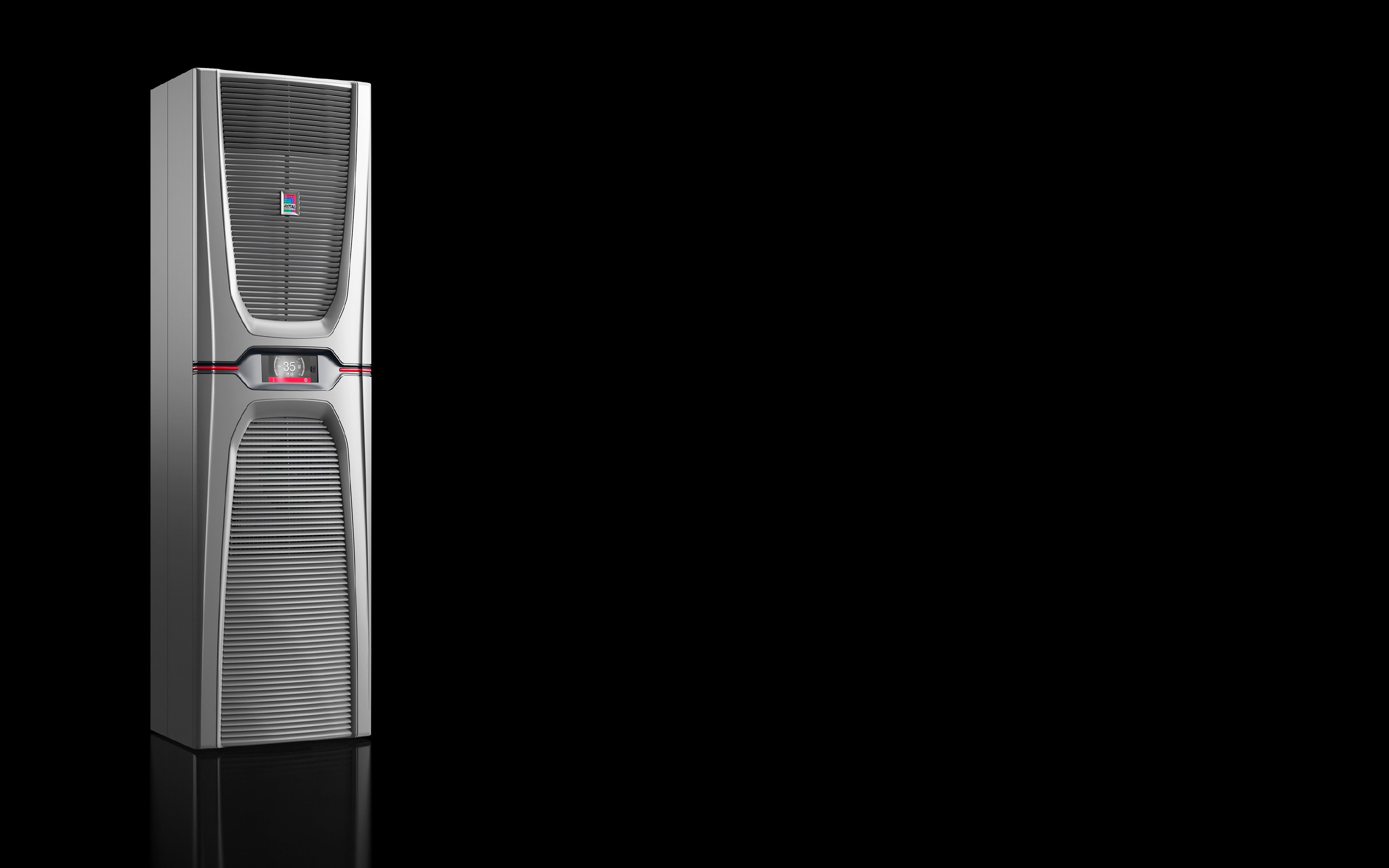

Rittal 3188640 Blue e+ 3-Phase Cooling Unit
Part Number # 3188640
SKU # 2401537
Rittal 3188640 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3188640 |
| SKU #: | 2401537 |
| Amperage Rating: | 2.3/1.8 A |
| Dimensions: | 1600 mm H x 450 mm W x 393 mm D |
| Flow Rate: | 2300 cu-m/hr Internal/External |
| Series: | Blue e+ |
| UNSPSC: | 40101701 |
| UPC: | 00063988991175 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 3188640 Blue e+ 3-Phase Cooling Unit
Brand: Rittal
Part Number: 3188640
Rittal Cooling Unit, 3-Phase, Series: Blue e+, 380 to 480 VAC, 2.3/1.8 A, 1.21/1.28 kW, 50/60 Hz, 14343 Btu Capacity, IP55, 2300 cu-m/hr Internal/External, -20 to 60 deg C, Wall Mount, Stainless Steel, Gray Aluminum, 1600 mm H x 450 mm W x 393 mm D
Additional Description: RTL -3188640 BLUE E+ AC 14343 BTU 380-480V 3PH 50-60HZ SS SIDEMTG, COMFORT CONTR, RAL9007, NANOCOATED CONDENSER 380-480V 3PH 50-60HZ SS SS
Catalog Description: SK cooling unit Blue e+, wall-mounted, 4.2 kW, 380-480 V, 3PH, 50-60 Hz, Stainless steel, WHD: 450 x 1600 x 393 mm
3188640 Includes
Assembly Components, Wired Ready for Connection3188640 Item Features
- An average of 75% energy savings due to speed-regulated components and heat pipe technology
- Intuitive operation due to touch display and intelligent interfaces
- Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
- Suitable for international use due to a unique multi-voltage capability
- 1.21 kW at 50/60 Hz, 1.28 kW at 50/60 Hz power rating
3188640 Standards
RoHS CompliantSKU #2401537Part Number #3188640UNSPSC40101701UPC00063988991175
Image provided may only be a representation of final product and may include optional equipment
