Part Number # 3302110
SKU # 933053
Image Disclaimers Message
3302110

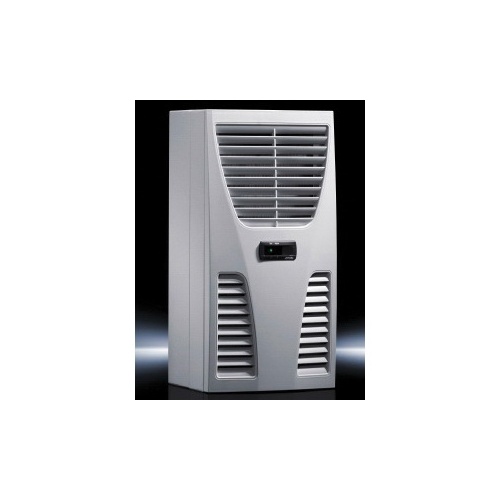

Rittal 3302110 TopTherm Cooling Unit
Part Number # 3302110
SKU # 933053
$1976.69 / Each
Typical price:$2470.86 / Each
Rittal 3302110 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3302110 |
| SKU #: | 933053 |
| Amperage Rating: | 3.3, 3.3 A |
| Control Type: | Basic Controller |
| Dimensions: | 22 in H x 11 in W x 5-1/2 in D |
| Enclosure Type: | IP34/IP54/NEMA 12, NEMA 12/IP34/54, NEMA 12/IP34/IP54 |
| Frequency Rating: | 60, 60 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | 10 to 55, 10 to 55 deg C |
| Type: | 1-Phase |
| Color: | Light gray |
| Connection type: | Plug-In Terminal Strip |
| Material: | Sheet Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101701 |
| UPC: | 00639889000025 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1976.69 / Each
Typical price:$2470.86 / Each
Quantity:
- Rittal TopTherm Cooling Unit, 1-Phase, Series: SK Series, 115 V AC, 3.3 A, 0.23/0.38 kW Power, 60 Hz Frequency, 784/1296 Btu Capacity, NEMA 12/IP34/54 Enclosure, Basic Controller Control, Plug-In Terminal Strip Connection, 10 to 55 deg C, Wall Mounting, Sheet Steel, Light Gray, 22 in H x 11 in W x 5-1/2 in D Dimensions
3302110 Includes
Nano Coated Condenser, Wired Ready for Connection (Plug-In Terminal Strip), Drilling Template, Fasteners3302110 Item Features
- Compact wall mounted cooling units, output category 300 W with nano coated condenser
- 0.38 kW at 60 Hz (L35), 0.23 kW at 60 Hz (L35 L50)
- 3.3 A at 60 Hz
- 1296 Btu at 50 Hz (L35), 784 Btu at 60 Hz (L35)
3302110 Standards
RoHS Compliant|UL/cUL Recognized|TUV Approved|CSA Certified|EAC Certified|IEC 60529|DIN EN 14511SKU #933053Part Number #3302110UNSPSC40101701UPC00639889000025
