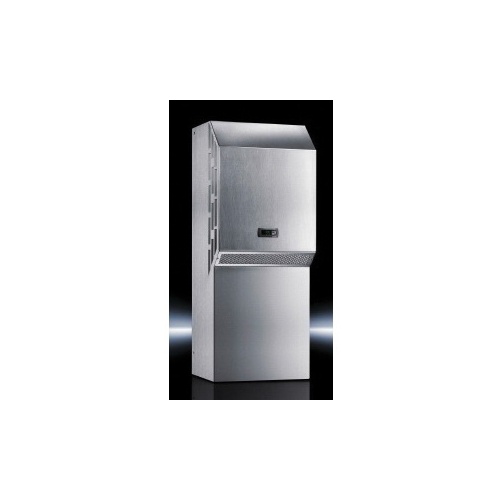

Rittal 3304504 TopTherm Cooling Unit
Image Disclaimers Message
Rittal 3304504 TopTherm Cooling Unit
Rittal 3304504 TopTherm Cooling Unit
Part #:3304504
SKU #: 2238756
Key Features
Part #:3304504
SKU #: 2238756
Brand: Rittal
Amperage Rating: 3.9/4.3, 3.9/4.3 A
Control Type: e-Comfort Controller
Dimensions: 40 in H x 16 in W x 14 in D
Enclosure Type: NEMA 4X/IP34/IP55
Frequency Rating: 50/60, 50/60 Hz
- Energy efficient blue e wall mounted cooling units in power categories 500 to 2500 W with e-comfort controller integrated as standard
- RiNano coating on the condenser and electrical condensate evaporation as standard
- 1.1 kW at 50 Hz (L35), 1.25 kW at 60 Hz (L35), 0.91 kW at 50 Hz (L35 L50), 0.9 kW at 60 Hz (L35 L50)
- 3.9 A at 50 Hz, 4.3 A at 60 Hz
- 3753 Btu at 50 Hz (L35), 4265 Btu at 60 Hz (L35), 3105 Btu at 50 Hz (L35 L50), 3070 Btu at 60 Hz (L35 L50)
Rittal 3304504 TopTherm Cooling Unit
Rittal TopTherm Cooling Unit, 1-Phase, Series: SK Series, 230 VAC, 3.9/4.3 A, 0.9/0.91/1.1/1.25 kW, 50/60 Hz, 3070/3105/3753/4265 Btu Capacity range, NEMA 4X/IP34/IP55, e-Comfort Controller Control, Plug-In Terminal Strip, 10 to 50 deg C, Wall Mount, Stainless Steel, 40 in H x 16 in W x 14 in D
Additional Description: RTL -3304504 AC 3753 BTU 230V 50-60HZ TYPE4X 316S-S SIDEMTG, COMFORT CONTR,NANOCOATED CONDENSER, CONDENDSATE EVAP. 316S-S TYPE4X 304S/S
Catalog Description: TopTherm wall-mounted cooling units "Blue e", NEMA 4X, Total cooling output 0.50 to 2.50 kW, total cooling output L35L35 at 50Hz: 3753, material: Stainless steel 1.4404 (AISI 316L), supply includes: Nano-coated condenser, Integral electric condensate evaporation, Fully wired ready for connection (plug-in terminal strip), Drilling template, Assembly parts, description: Energy-efficient Blue e wall-mounted cooling units in power categories 500 W to 2,500 W with e-Comfort controller integrated as standard, RiNano coating on the condenser and electrical condensate evaporation. Protection category NEMA 4X.
