Part #:3305500
SKU #: 966984
Key Features
Part #:3305500
SKU #: 966984
Brand: Rittal
Amperage Rating: 5.5/5.8, 5.5/5.8 A
Control Type: e-Comfort Controller
Dimensions: 37 in H x 16 in W x 10 in D
Enclosure Type: IP34/IP54/NEMA 12, NEMA 12/IP34/IP54
Frequency Rating: 50/60, 50/60 Hz
- Energy efficient blue e wall mounted cooling units in output categories from 1000 to 1500 W with integral e-comfort controller
- RiNano coating on the condenser and electrical condensate evaporation as standard
- 1.6 kW at 50 Hz (L35), 1.76 kW at 60 Hz (L35), 1.25 kW at 50 Hz (L35 L50), 1.37 kW at 60 Hz (L35 L50)
- 5.5 A at 50 Hz, 5.8 A at 60 Hz
- 5459 Btu at 50 Hz (L35), 6005 Btu at 60 Hz (L35), 4265 Btu at 50 Hz (L35 L50), 4674 Btu at 60 Hz (L35 L50)

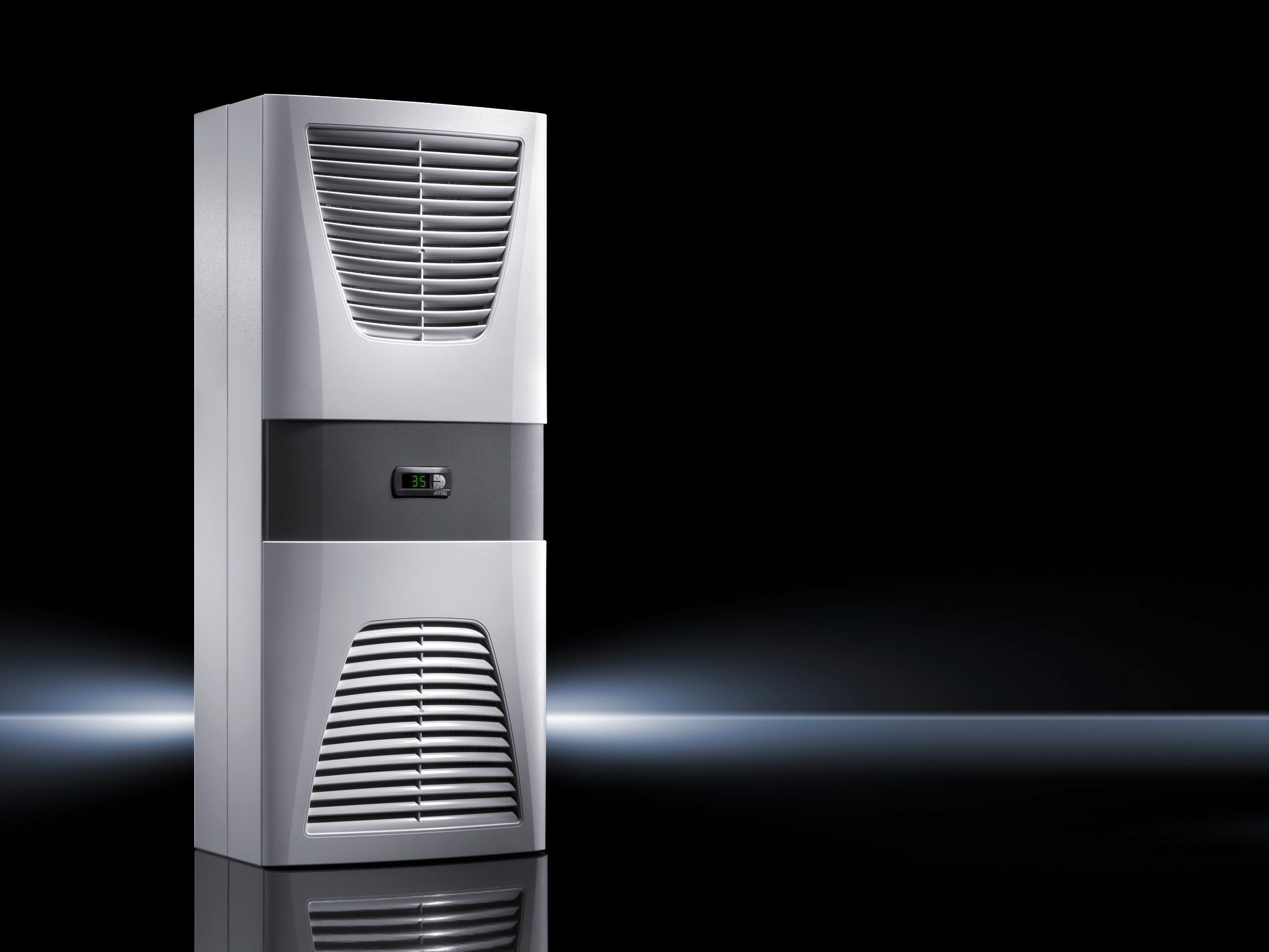

Rittal 3305500 TopTherm Cooling Unit
Rittal TopTherm Cooling Unit, 1-Phase, Series: SK Series, 230 VAC, 5.5/5.8 A, 1.25/1.37/1.6/1.76 kW Power, 50/60 Hz Frequency, 4265/4674/5459/6005 Btu Capacity, NEMA 12/IP34/IP54 Enclosure, e-Comfort Controller Control, Plug-In Terminal Strip Connection, 10 to 55 deg C, Wall Mounting, Sheet Steel, Light Gray, 37 in H x 16 in W x 10 in D Dimensions
Additional Description: RTL -3305500 AC 6005 BTU 230V 50-60HZ TYPE12 STEEL SIDEMTG, BLUE ECOMFORT CONTR, RAL7035, NANOCOATED CONDENSER, CONDENSATE STEEL TYPE12,STEEL COMFORT CONTROLLER, WALL 3305500 MICROCONTROLLER, WALLMOUNT
Catalog Description: Wall-mounted cooling units TopTherm "Blue e", Total cooling output 1.00 - 1.50 kW, total cooling output L35L35 at 50Hz: 5459, material: Sheet steel, color: RAL 7035, supply includes: Nano-coated condenser, Integral electric condensate evaporation, Fully wired ready for connection (plug-in terminal strip), Drilling template, Assembly parts, description: Energy-efficient Blue e wall-mounted cooling units in output categories from 1,000 W to 1,500 W, with integral e-Comfort controller, RiNano coating on the condenser and electrical condensate evaporation as standard.
