Part Number # 3305548
SKU # 2387359
3305548
Rittal 3305548 TopTherm Blue e 3-Phase Cooling Unit
Part Number # 3305548
SKU # 2387359
Rittal 3305548 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3305548 |
| SKU #: | 2387359 |
| Amperage Rating: | 11.3/12.2, 11.3/12.2 A |
| Dimensions: | 1020 mm H x 405 mm W x 358 mm D |
| Enclosure Type: | NEMA 1/2/3/3R/4/12/13/IP65/IP66, NEMA 3R/4/12/IP56 |
| Flow Rate: | 540 cu-m/hr Internal, 950 cu-m/hr External |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | TopTherm Blue e |
| Temperature Rating (Degrees F): | 50 to 122, 50 to 122 deg F |
| Type: | 3-Phase |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101701 |
| UPC: | 00063988990718 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 3305548 TopTherm Blue e 3-Phase Cooling Unit
Brand: Rittal
Part Number: 3305548
Rittal Cooling Unit, 3-Phase, Series: TopTherm Blue e, 400/460 VAC, 11.3/12.2 A, 0.65/0.78/0.82/0.96 kW Power, 50/60 Hz Frequency, 5800 Btu Capacity, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, 540 cu-m/hr Internal, 950 cu-m/hr External Flow Rate, 50 to 122 deg F, Wall Mounting, Carbon Steel, Light Gray, 1020 mm H x 405 mm W x 358 mm D Dimensions
Additional Description: RTL -3305548 (N) AC 5800 BTU 460V 3 PH 60HZ TYPE 3R/4 UL LISTED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SK cooling unit Blue e, wall-mounted, UL Type 3R/4, 1.49 kW, 400 V, 3PH, 50 Hz, 460 V, 3PH, 60 Hz, carbon steel, WHD: 405 x 1020 x 358 mm,
3305548 Includes
Drilling Template, Fasteners, Nano Coated Condenser, Wired Ready for Connection (Plug-In Terminal Strip), Integral Electric Condensate Evaporation3305548 Item Features
- 0.65/0.78 kW at 50 Hz, 0.82/0.96 kW at 60 Hz power rating
3305548 Standards
RoHS Compliant|UL/cUL ListedSKU #2387359Part Number #3305548UNSPSC40101701UPC00063988990718

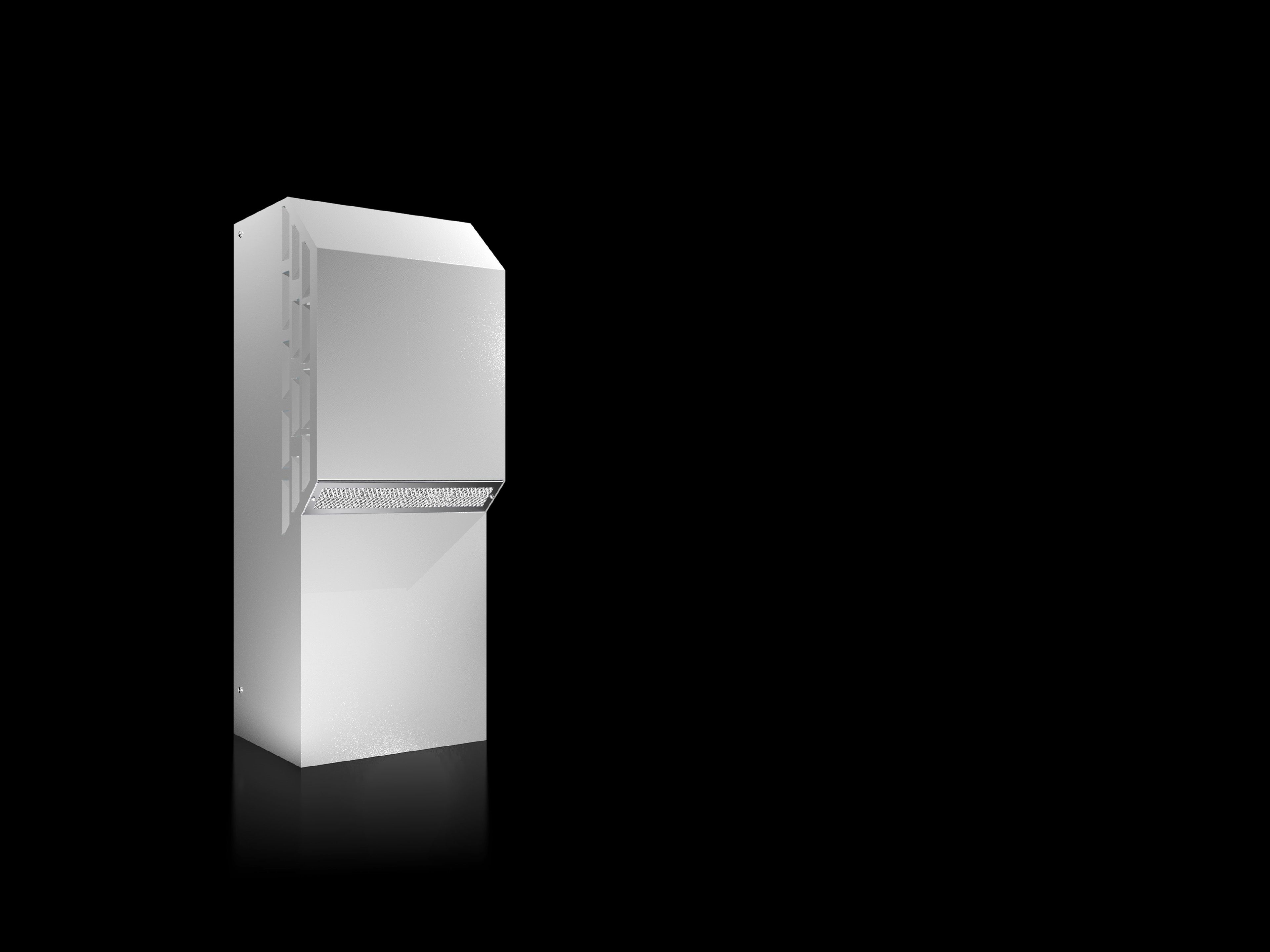

Image provided may only be a representation of final product and may include optional equipment
