3310700

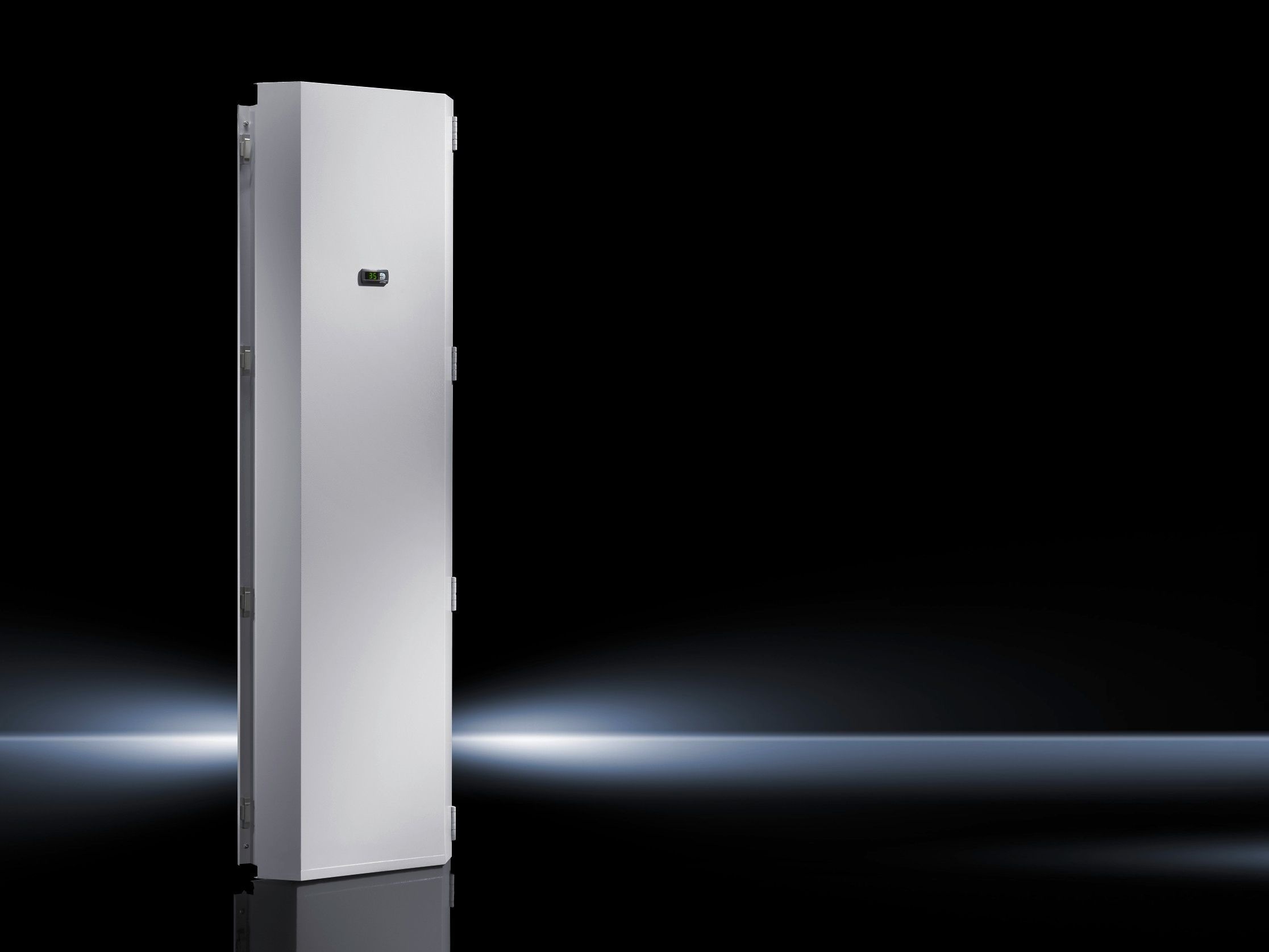

Rittal 3310700 Cooling Module
Part Number # 3310700
SKU # 2299534
$7662.15 / Each
Typical price:$9577.69 / Each
Rittal 3310700 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3310700 |
| SKU #: | 2299534 |
| Amperage Rating: | 7.6/9.4, 7.6/9.4 A |
| Control Type: | e-Comfort Controller |
| Dimensions: | 1.6 in H x 5.4 in W x 5.2 in D |
| Enclosure Type: | IP34/54, IP34/IP54 |
| Flow Rate: | 1100, 1100 cu-m/hr |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | 10 to 55, 10 to 55 deg C |
| Type: | 1-Phase |
| Color: | Light gray |
| Connection type: | Plug-In Terminal |
| Material: | Sheet Steel |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101701 |
| UPC: | 00639889861787 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7662.15 / Each
Typical price:$9577.69 / Each
Quantity:
- Rittal Cooling Module, 1-Phase, Series: SK Series, 230 V AC, 7.6/9.4 A, 2.5/2.52/1.62/1.76 kW, 50/60 Hz, 8530 Btu Capacity range, IP34/54, 1100 cu-m/hr, e-Comfort Controller Control, Plug-In Terminal, 10 to 55 deg C, Sheet Steel, Light Gray, 1.6 in H x 5.4 in W x 5.2 in D
3310700 Application
For installation in section door3310700 Includes
Nano Coated Condenser, Plug-In Terminal Strip3310700 Item Features
- Modular climate control concept
- Cooling modules for section doors, cooling output from 1500 to 2500 W
- Cooling output from 1500 to 2500 W
- Fully wired ready for connection
- Integral electric condensate evaporation
- 7.6 A at 50 Hz, 9.4 A at 60 Hz
- 2.5 kW at 50 Hz, 2.52 kW at 60 Hz, 1.62 kW at 50 Hz, 1.76 kW 60 Hz
- 1100 cu-m/hr internal/external circuit
3310700 Standards
RoHS Compliant|UL 60950-1|CSA C22.2 No. 60950-1-07SKU #2299534Part Number #3310700UNSPSC40101701UPC00639889861787
