Part Number # 3319610
SKU # 2330441
Image Disclaimers Message
Brand: Rittal
3319610

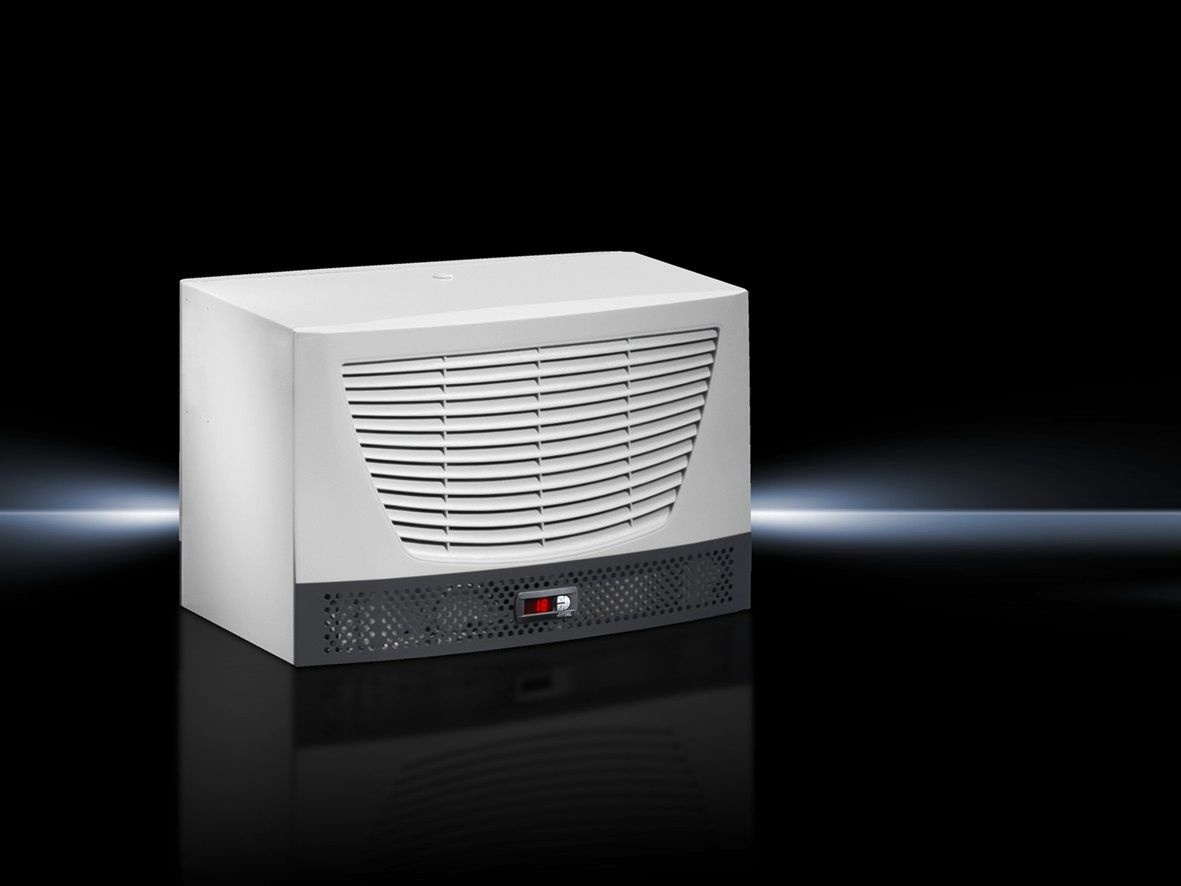

Rittal 3319610 TopTherm Mini Chiller
Part Number # 3319610
SKU # 2330441
$8091.02 / Each
Typical price:$10113.77 / Each
Rittal 3319610 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3319610 |
| SKU #: | 2330441 |
| Amperage Rating: | 5.3/5.4, 5.3/5.4 A |
| Control Type: | Micro-Controller |
| Dimensions: | 16 in H x 24 in W x 17 in D |
| Enclosure Type: | IP44 |
| Flow Rate: | 529.7, 529.7 cfm |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | 10 to 43, 10 to 43 deg C |
| Type: | 1-Phase Open |
| Color: | Light gray |
| Connection type: | Thread, Threaded |
| Material: | Polypropylene |
| Mounting type: | Roof |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101702 |
| UPC: | 00639889002159 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8091.02 / Each
Typical price:$10113.77 / Each
Quantity:
- Rittal TopTherm Mini Chiller, 1-Phase Open, Series: SK Series, 230 V AC, 5.3/5.4 A, 0.85/1.05 kW Power, 50/60 Hz Frequency, 4049/4435/5118/5800 Btu Capacity, IP44 Enclosure, 529.7 cfm Flow Rate, Micro-Controller Control, Thread Connection, 10 to 43 deg C, Roof Mounting, Polypropylene, Light Gray, 16 in H x 24 in W x 17 in D Dimensions
3319610 Application
For economical chilling of a central cooling water supply for air/water heat exchangers or the like3319610 Includes
Multi-Lingual Documentation, Functional Diagram, Wiring Plans3319610 Item Features
- Roof mounted and stand alone TopTherm chillers are both flexible and compact
- Modular layout of the refrigeration components
- Nano coated condenser
- Pump to convey the medium
- Precise temperature control based on microprocessor technology
- Collective fault signal with floating contact
- One version for two frequencies - international compatibility
- Complete unit ready for connection
- 0.85 kW at 50 Hz, 1.05 kW at 60 Hz
- 5.4 A at 50 Hz, 5.3 A at 60 Hz
- 4049 Btu at 50 Hz, 4435 Btu at 60 Hz, 5118 Btu at 50 Hz, 5800 Btu at 60 Hz
3319610 Standards
RoHS Compliant|GS|IEC 60529, EAC CertifiedSKU #2330441Part Number #3319610UNSPSC40101702UPC00639889002159
