Part Number # 3328514
SKU # 2174518
3328514
Rittal 3328514 TopTherm Cooling Unit
Part Number # 3328514
SKU # 2174518
Rittal 3328514 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3328514 |
| SKU #: | 2174518 |
| Amperage Rating: | 13.4/14.8, 13.4/14.8 A |
| Control Type: | e-Comfort Controller |
| Dimensions: | 65 in H x 16 in W x 15 in D |
| Enclosure Type: | NEMA 4X/IP34/55, NEMA 4X/IP34/IP55 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | 10 to 50, 10 to 50 deg C |
| Type: | 1-Phase |
| Connection type: | Plug-In Terminal Strip |
| Country of origin: | DE |
| Material: | Stainless Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101701 |
| UPC: | 00639889002067 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 3328514 TopTherm Cooling Unit
Brand: Rittal
Part Number: 3328514
Rittal TopTherm Cooling Unit, 1-Phase, Series: SK Series, 115 VAC, 13.4/14.8 A, 0.97/1.9/1.11/1.28 kW, 50/60 Hz, 5527/5971/6824/8052 Btu Capacity range, NEMA 4X/IP34/IP55, e-Comfort Controller Control, Plug-In Terminal Strip, 10 to 50 deg C, Wall Mount, Stainless Steel, 65 in H x 16 in W x 15 in D
Additional Description: RTL -3328514 AC 8735BTU 115V 50-60HZ TYPE4X 316S-S SIDEMTG, COMFORT CONTR, NANOCOATED CONDENSER, CONDENSATE EVAP. 316S-S 3328514 AC,8700BTU, 115V, 50/60HZ, TYPE4X,304S/S COMFORT CONTROLLER, WALL 3328514
Catalog Description: SK Cooling unit Blue e, wall-mounted, 2.1 kW, 115 V, 1PH, 50/60 Hz, NEMA 4x, HWD: 1650 x 405 x 388 mm
3328514 Includes
Nano Coated Condenser, Integral Electric Condensate Evaporation, Fully Wired Ready for Connection (Plug-In Terminal Strip), Drilling Template, Assembly Components3328514 Item Features
- Energy efficient blue e wall mounted cooling units in power categories 500 to 2500 W with e-comfort controller integrated as standard
- RiNano coating on the condenser and electrical condensate evaporation as standard
- 0.97 kW at 50 Hz (L35), 1.9 kW at 60 Hz (L35), 1.11 kW at 50 Hz (L35 L50), 1.28 kW at 60 Hz (L35 L50)
- 13.4 A at 50 Hz, 14.8 A at 60 Hz
- 6824 Btu at 50 Hz (L35), 8052 Btu at 60 Hz (L35), 5527 Btu at 50 Hz (L30 L50), 5971 Btu at 60 Hz (L30 L50)
3328514 Standards
RoHS Compliant|UL Listed|cUL Recognized|CSA Certified|EAC Certified|IEC 60529, DIN EN 14511SKU #2174518Part Number #3328514UNSPSC40101701UPC00639889002067

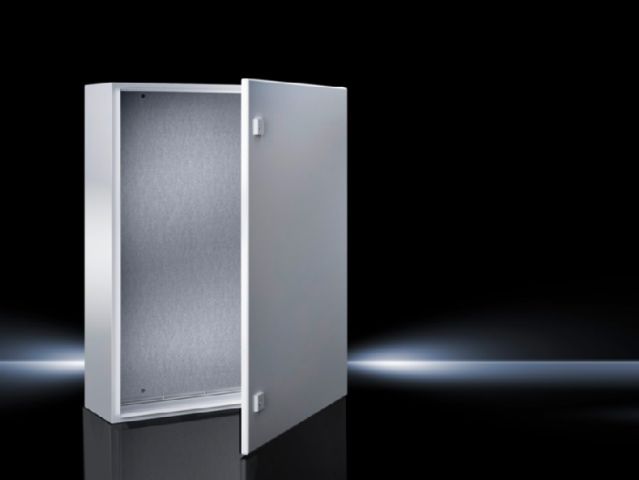

Image provided may only be a representation of final product and may include optional equipment
