Part Number # 3329548
SKU # 2364040
3329548

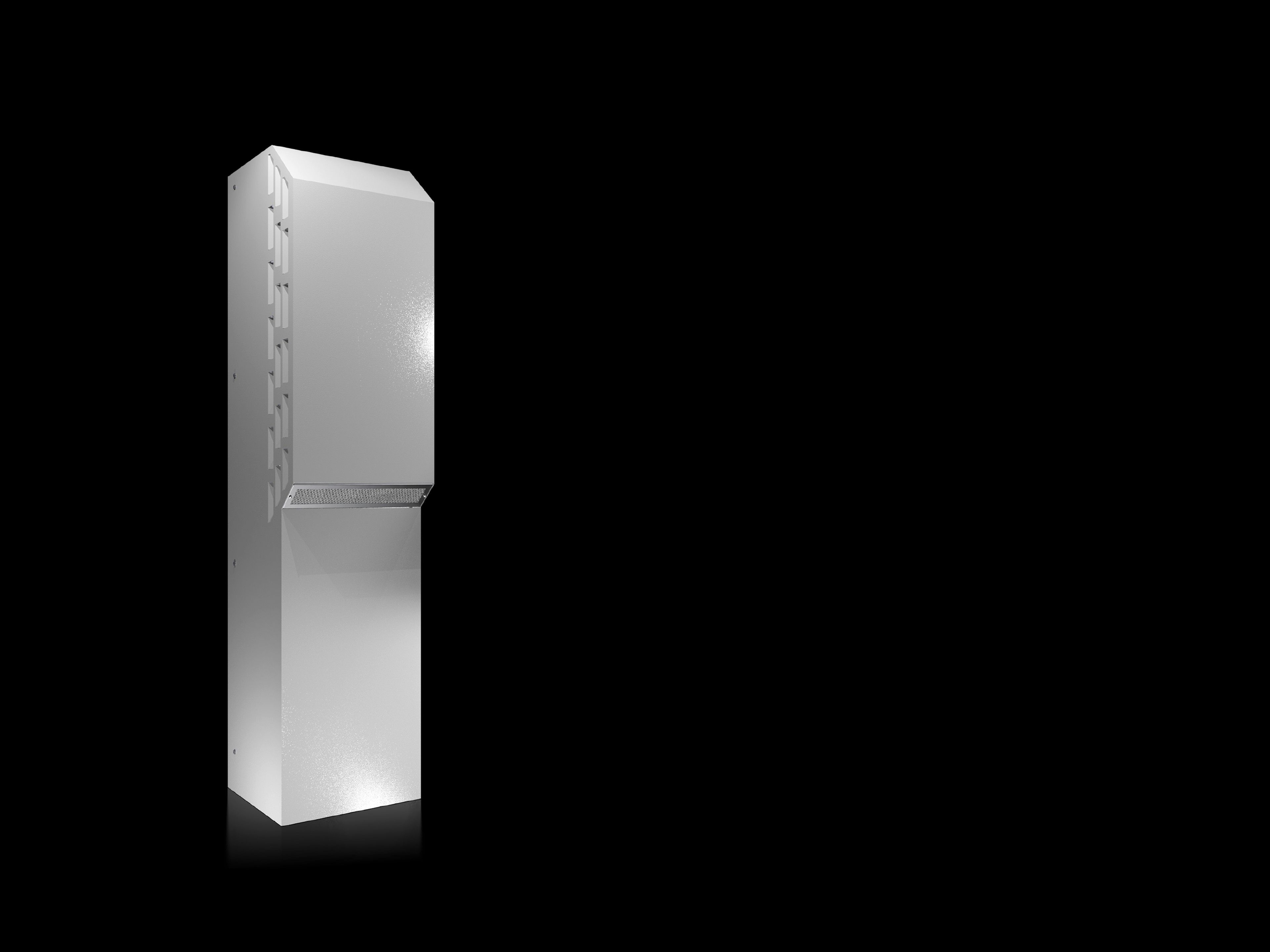

Rittal 3329548 Cooling Unit
Part Number # 3329548
SKU # 2364040
Rittal 3329548 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3329548 |
| SKU #: | 2364040 |
| Amperage Rating: | 3.7/3.8, 3.7/3.8 A |
| Dimensions: | 65 in H x 16 in W x 15 in D |
| Enclosure Type: | NEMA 1/2/3/3R/4/12/13/IP65/IP66, NEMA 3R/4/12/IP56 |
| Flow Rate: | 1.36/1.71/1.59/2.03, 1.36/1.71/1.59/2.03 kW |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | TopTherm Blue e |
| Temperature Rating (Degrees F): | 50 to 122, 50 to 122 deg F |
| Type: | 3-Phase |
| Material: | Carbon Steel |
| Mounting type: | Wall |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101701 |
| UPC: | 00063988990721 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 3329548 Cooling Unit
Brand: Rittal
Part Number: 3329548
Rittal Cooling Unit, 3-Phase, Series: TopTherm Blue e, 400/460 VAC, 3.7/3.8 A, 1.36/1.59/1.71/2.03 kW Power, 50/60 Hz Frequency, 10525 Btu Capacity, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, 1.36/1.71/1.59/2.03 kW Flow Rate, 50 to 122 deg F, Wall Mounting, Carbon Steel, Light Gray, 65 in H x 16 in W x 15 in D Dimensions
Additional Description: RTL -3329548 (N) AC 10525BTU 460V 3 PH 60HZ TYPE 3R/4 UL LISTED 3R/4 60HZ, TYPE 3R/4 TOP THERM WALL-MOUNTED COOLING UNIT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: SK cooling unit Blue e, wall-mounted, UL Type 3R/4, 2.43 kW, 400 V, 3PH, 50 Hz, 460 V, 3PH, 60 Hz, carbon steel, WHD: 405 x 1650 x 388 mm,
3329548 Includes
Drilling Template, Fasteners, Nano Coated Condenser, Wired Ready for Connection (Plug-In Terminal Strip), Integral Electric Condensate Evaporation3329548 Item Features
- 1.36/1.59 kW at 50 Hz, 1.71/2.03 kW at 60 Hz power rating
3329548 Standards
RoHS Compliant|UL ListedSKU #2364040Part Number #3329548UNSPSC40101701UPC00063988990721
Image provided may only be a representation of final product and may include optional equipment
