Part Number # 3359500
SKU # 2214468
Image Disclaimers Message
Brand: Rittal
3359500

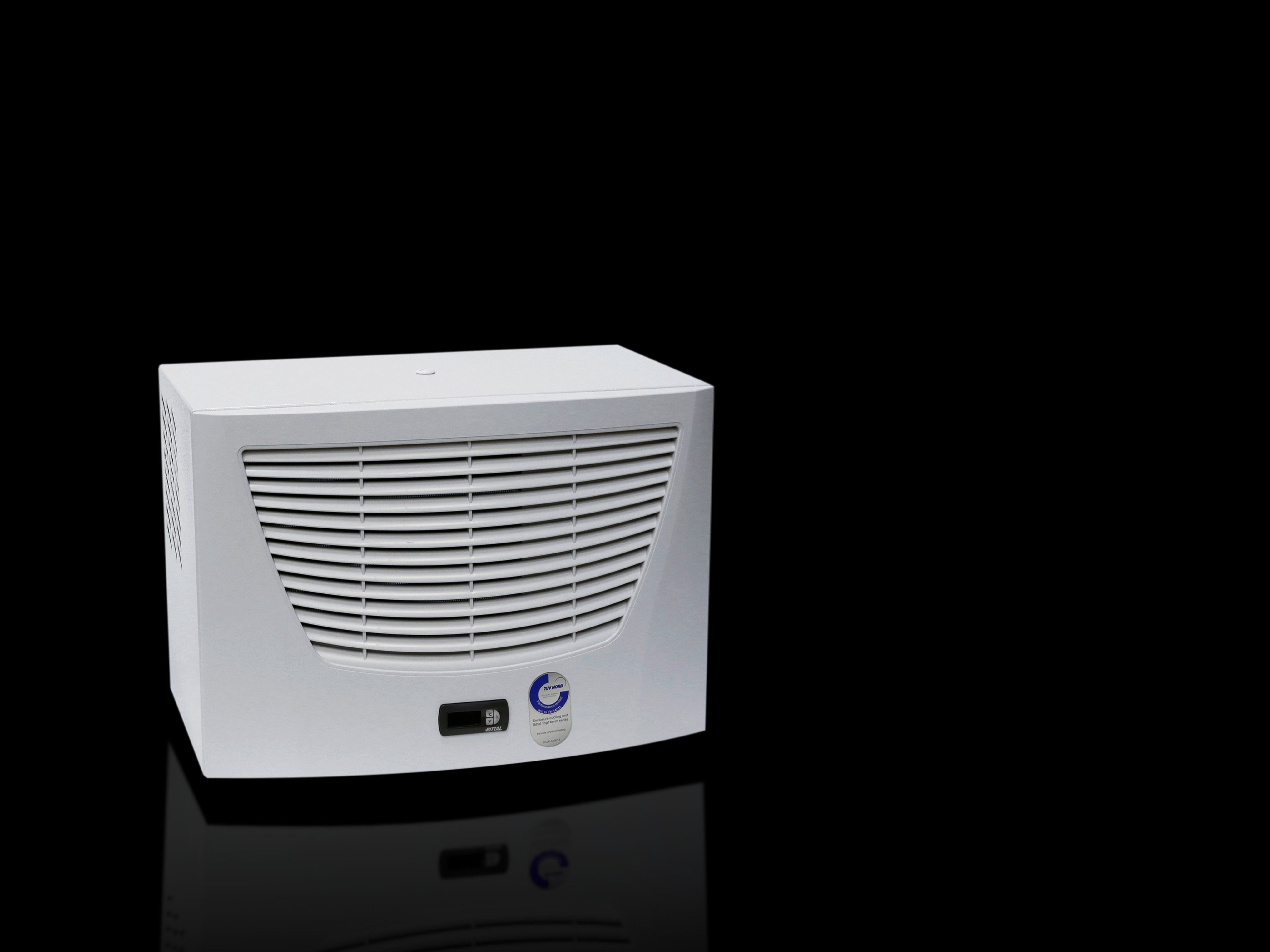

Rittal 3359500 TopTherm Cooling Unit
Part Number # 3359500
SKU # 2214468
$4711.49 / Each
Typical price:$5889.36 / Each
Rittal 3359500 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 3359500 |
| SKU #: | 2214468 |
| Amperage Rating: | 2.8/3.7, 2.8/3.7 A |
| Control Type: | e-Comfort Controller |
| Dimensions: | 16 in H x 24 in W x 15 in D |
| Enclosure Type: | IP34/IP54/NEMA 12, NEMA 12/IP34/54, NEMA 12/IP34/IP54 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | SK Series |
| Temperature Rating (Degrees F): | 10 to 55, 10 to 55 deg C |
| Type: | 1-Phase |
| Color: | Light gray |
| Connection type: | Plug-In Terminal Strip |
| Material: | Sheet Steel |
| Mounting type: | Roof |
| Manufacturer Name: | Rittal |
| UNSPSC: | 40101701 |
| UPC: | 00639889376571 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4711.49 / Each
Typical price:$5889.36 / Each
Quantity:
- Rittal TopTherm Cooling Unit, 1-Phase, Series: SK Series, 230 V AC, 2.8/3.7 A, 0.47/0.52/0.77/0.79 kW Power, 50/60 Hz Frequency, 1603/1774/2627/2695 Btu Capacity, NEMA 12/IP34/54 Enclosure, e-Comfort Controller Control, Plug-In Terminal Strip Connection, 10 to 55 deg C, Roof Mounting, Sheet Steel, Light Gray, 16 in H x 24 in W x 15 in D Dimensions
3359500 Includes
Nano Coated Condenser, Integral Electric Condensate Evaporation, Wired Ready for Connection (Plug-In Terminal Strip), Drilling Template, Fasteners3359500 Item Features
- Energy efficient blue e roof mounted cooling units in output categories from 500 to 4000 W with integral e-comfort controller
- RiNano coating on the condenser and electrical condensate evaporation as standard
- 0.77 kW at 50 Hz (L35), 0.79 kW at 60 Hz (L35), 0.52 kW at 50 Hz (L35 L50), 0.47 kW at 60 Hz (L35 L50)
- 2.8 A at 50 Hz, 3.7 A at 60 Hz
- 2627 Btu at 50 Hz (L35), 2695 Btu at 60 Hz (L35), 1774 Btu at 50 Hz (L35 L50), 1603 Btu at 60 Hz (L35 L50)
3359500 Standards
RoHS Compliant|UL Listed|cUL Recognized|TUV Approved|CSA Certified|EAC Certified|IEC 60529, DIN EN 14511SKU #2214468Part Number #3359500UNSPSC40101701UPC00639889376571
