- High purity electrolyte copper, vinyl insulation
- Rated current 605/510/385 A for temperature increase by 70/50/30 deg K
- Short circuit withstand strength, current carrying capacity, dielectric properties, clearance and creep age distances, all verified in conjunction with the enclosure
Specifications
Brand: Rittal
Amperage Rating: 385/510/605, 385/510/605 A
Type: Laminated, Laminated High-Purity
Material: Electrolyte Copper/Vinyl
UNSPSC: 39121117
UPC: 00639889859845

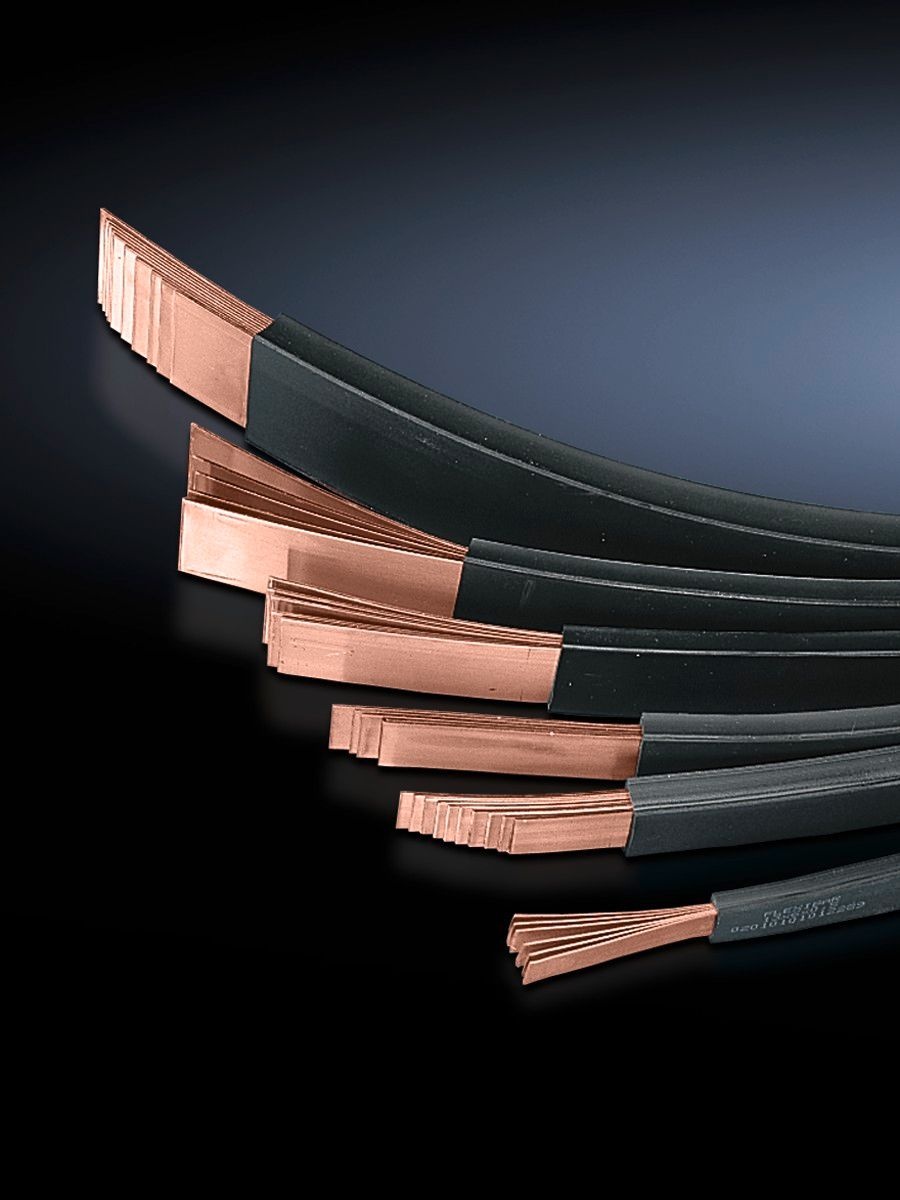

Rittal 3571005 Grounding Busbar
Rittal Grounding Busbar, Laminated High-Purity, 0.94 in Bar Width, 2000 mm Bar Length, 0.04 in Bar Thickness, 385/510/605 A, Electrolyte Copper/Vinyl
Additional Description: RTL -3571005 (N) LAMINATED COPPER BAR 5X24X1 2000MM 510A AT 50K 5X24X1.0 3571000 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Laminated copper bars, material: Cu lamina High-purity electrolyte copper F20, Insulation: High-strength vinyl compound, expansion 370 percent, dielectric strength: 20 kV/mm, Fire protection corresponding to UL 94-V0, description: Cu lamina made of high-purity electrolyte copper 720, length: 2000 mm/bar.
