4050455

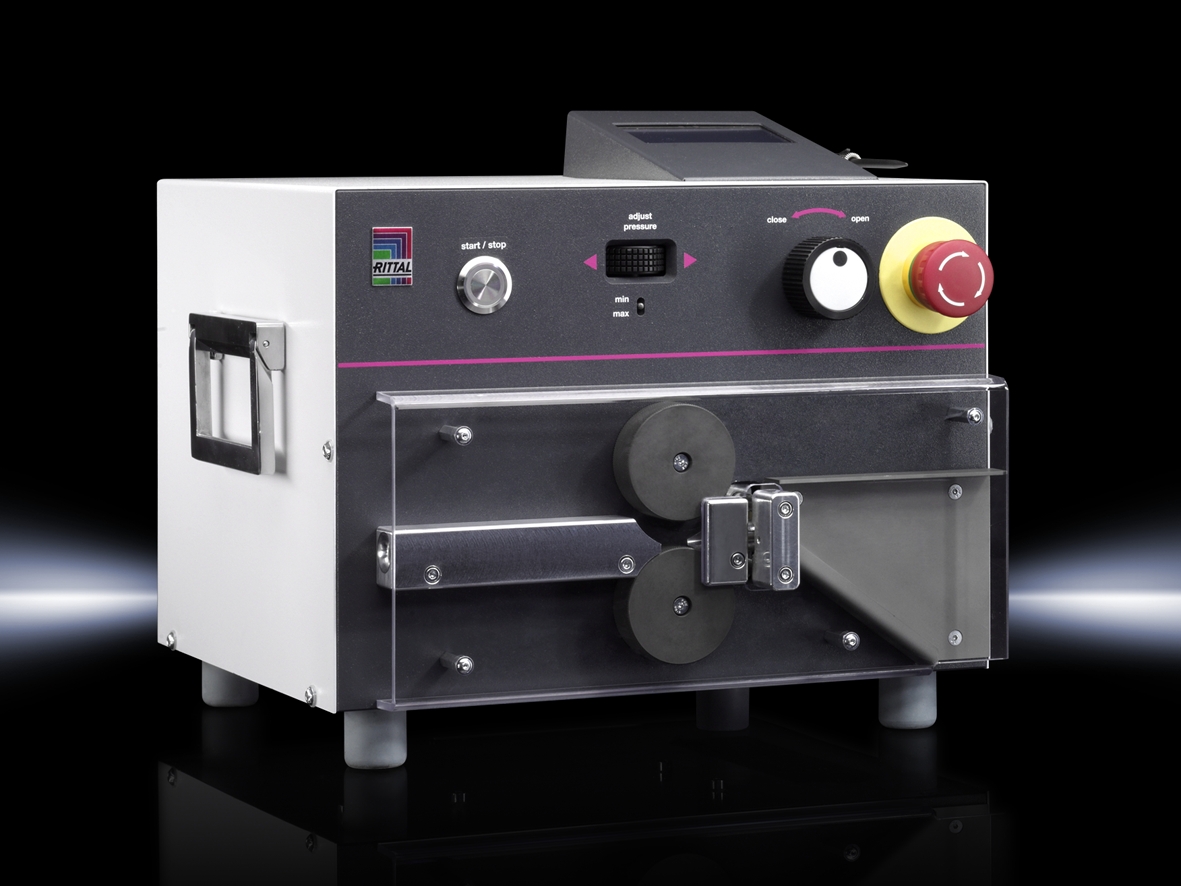

Rittal 4050455 Wire Length Cutting Machine
Part Number # 4050455
SKU # 2373477
Rittal 4050455 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 4050455 |
| SKU #: | 2373477 |
| Dimensions: | 470 mm H x 380 mm W x 360 mm D |
| Series: | C8+ |
| Type: | Semi-Automated |
| Wire Length: | 1 to 99999 mm |
| Cycle time: | <2 s |
| UNSPSC: | 39121321 |
| UPC: | 00063988990642 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 4050455 Wire Length Cutting Machine
Brand: Rittal
Part Number: 4050455
Rittal Wire Length Cutting Machine, Semi-Automated, Series: C8+, 1 to 99999 mm Wire Length, 1.06 in Insertion Length, 0 to 1.5 m/s Feed Rate, 100 to 240 V AC, <2 s Cycle Time, 120 VA Apparent Power, 470 mm H x 380 mm W x 360 mm D
Additional Description: RTL -4050455 (N) AS CUTTING MACHINE C8+ MULTICORE CONDUCTOR 0.08-10MM2 / SINGLE CORE CONDUCTOR 0.08-2.5MM2 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: C8+ automatic cutter, for wires and cables up to 8 mm diameter,
4050455 Application
For automation systems applications4050455 Includes
Connection Cable with Connector, Software Connection, CAE Data and Installation CD4050455 Item Features
- User friendly operation
- Simple insertion of the wires
- Simple opening of the feed rollers
- PC compatible
- Length-cutting with interface to CAE data supported
- Supports the process of labelling cables by showing the connection point on the display
- Simply transmit projects and orders to length-cutting machine C8+
4050455 Standards
RoHS CompliantSKU #2373477Part Number #4050455UNSPSC39121321UPC00063988990642
Image provided may only be a representation of final product and may include optional equipment
