Part Number # 5833600
SKU # 2397689
5833600

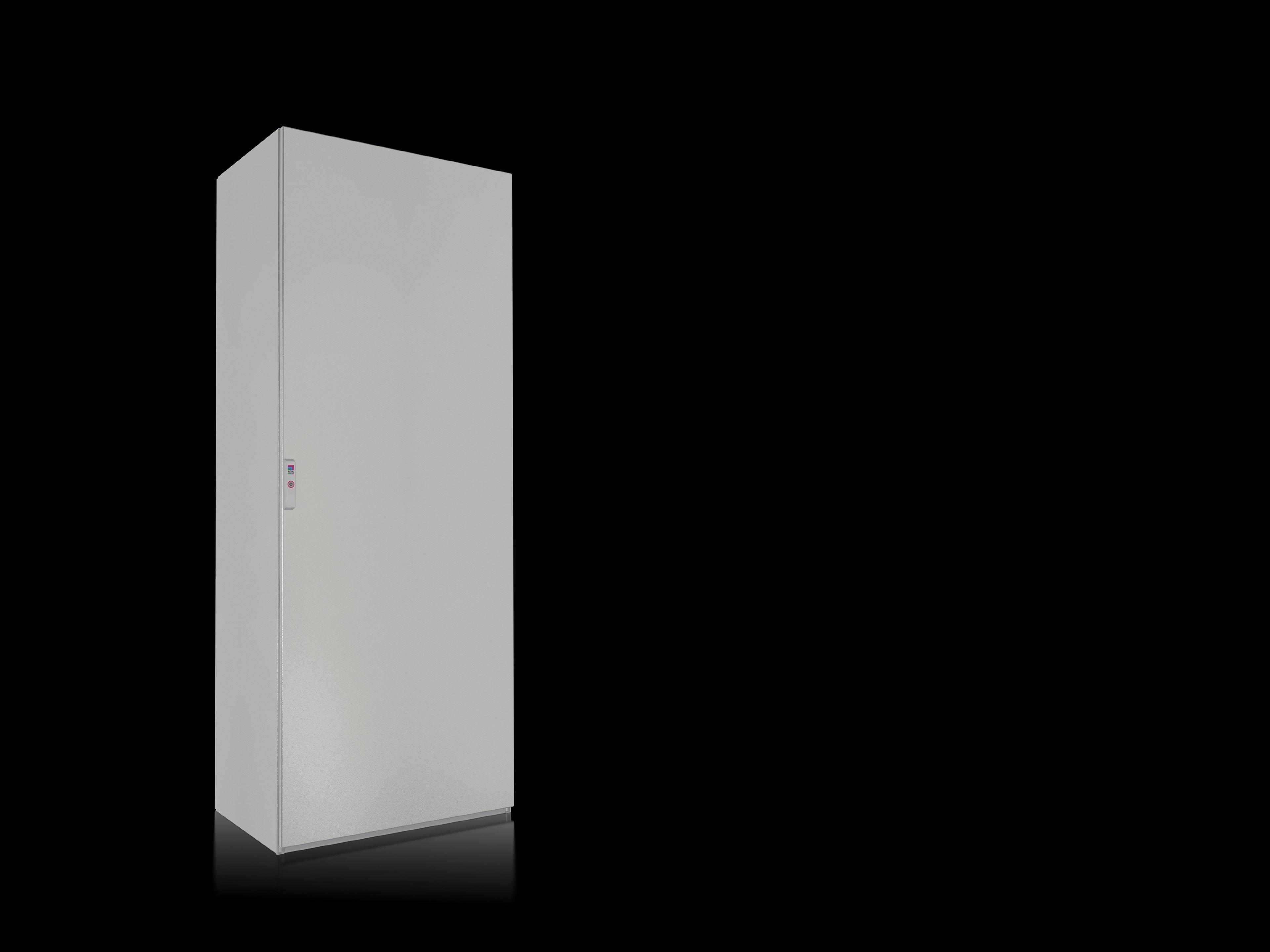

Rittal 5833600 Enclosure System, 800 mm W x 500 mm D, NEMA 12, Type 1, 2, 3, 3R, 12, IP55 NEMA Rating, Stainless Steel
Part Number # 5833600
SKU # 2397689
$1695.39 / Each
Typical price:$2119.24 / Each
Rittal 5833600 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 5833600 |
| SKU #: | 2397689 |
| Finish: | Dipcoat Primed/Powder Coated/Textured Paint/Zinc Plated |
| NEMA Rating: | NEMA 12, Type 1, 2, 3, 3R, 12, IP55 |
| UNSPSC: | 46182103 |
| UPC: | 00063988992609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1695.39 / Each
Typical price:$2119.24 / Each
Quantity:
- Rittal, 5833600, Enclosure System, 800 mm Width, 500 mm Depth, NEMA 12, Type 1, 2, 3, 3R, 12, IP55 NEMA Rating, Stainless Steel, Dipcoat Primed/Powder Coated/Textured Paint/Zinc Plated, RAL 7035
5833600 Includes
Enclosure, solid top and sides|Door(s)|R/h door hinge with single-door enclosures, may be swapped to opposite side|Mounting plate|Gland plates|Rear panel, detachable|Lock: 3 mm double-bit|2 punched rails 18 x 39 mm|Rear panel, one-piece5833600 Item Features
- System-compatible for configuration with VX25 accessories
- Efficiency is enhanced, as the side panels no longer need to be fitted and large enclosure widths replace small bayed suites
- 2000 mm Height
- 1896 mm H x 699 mm W Mounting Plate Dimensions
5833600 Standards
ETIM 8|ETIM 7.0|ECLASS 8.0SKU #2397689Part Number #5833600UNSPSC46182103UPC00063988992609
Image provided may only be a representation of final product and may include optional equipment
