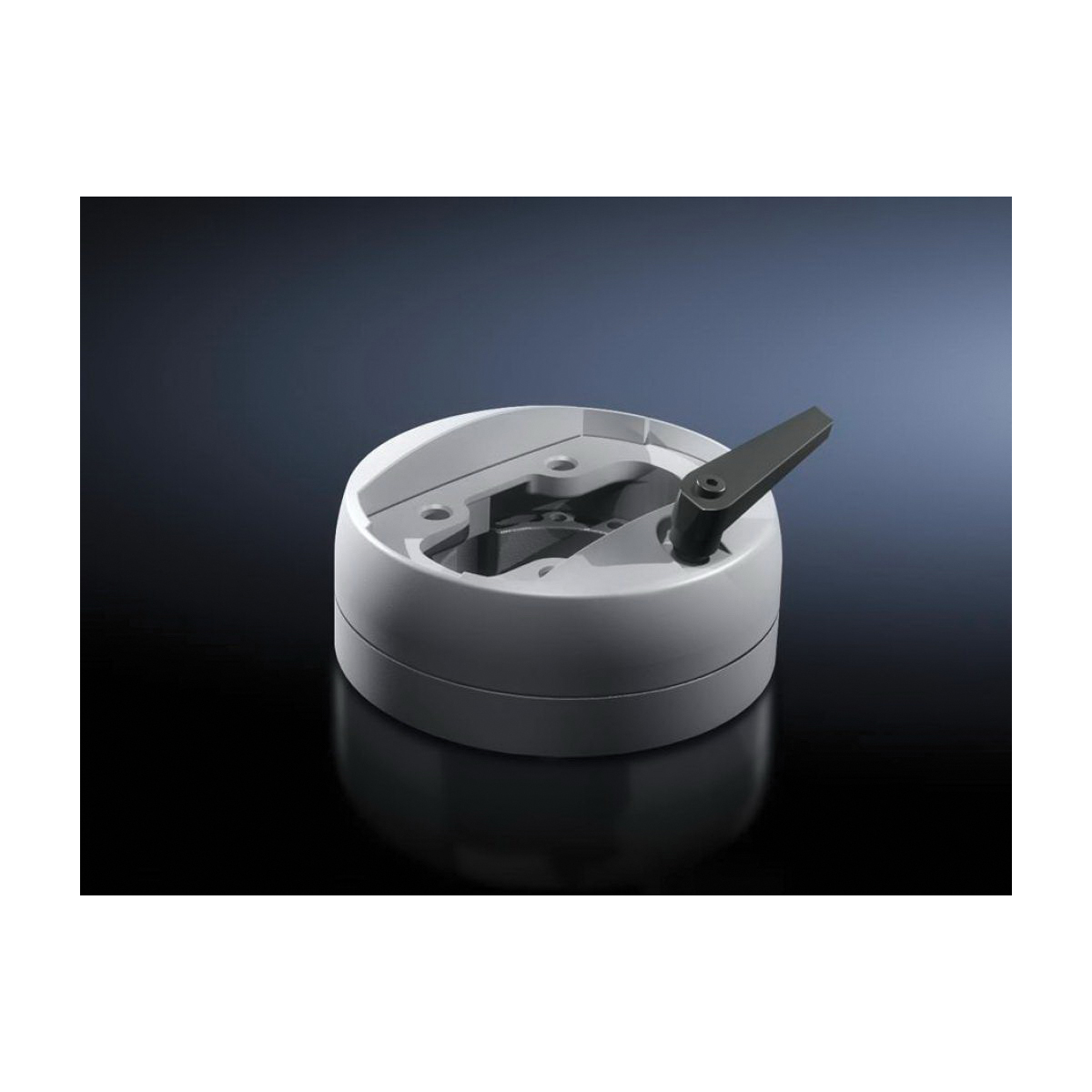

Rittal 6212300 Enclosure Coupling
Image Disclaimers Message
Rittal 6212300 Enclosure Coupling
Rittal 6212300 Enclosure Coupling
Part #:6212300
SKU #: 2262847
Key Features
Part #:6212300
SKU #: 2262847
Brand: Rittal
Series: CP 120
Suitable For Use With: 130 mm Dia Support Arm Connection
Color: Light gray
Material: Die Cast Zinc
- Approximately 310 deg, lockable via clamping levers rotation/swivel range
- Range of rotation can be limited by inserting the grub (set) screws provided
- Self-tapping screws for support section attachment
Rittal 6212300 Enclosure Coupling
Rittal Enclosure Coupling, Series: CP 120, For Use With: 130 mm Dia Support Arm Connection, Die Cast Zinc, Light Gray
Additional Description: RTL -6212300 CP 120 ENCLOSURE COUPLING ROTATING, RAL 7035
Catalog Description: Coupling CP 120, for support arm connection Ø 130 mm, material: Die-cast zinc, color: RAL 7035, supply includes: Seals, Grub screws, Self-tapping screws for support section attachment, description: For swivel mounting of the enclosure on the vertical section of the support arm system 120, produkt group: Used with static loads ranging from 400 to 1800 N. Endless possibilities for combination, with a broad diversity of functions. Reliable cable protection in all applications. Perfect planning tool for fast, safe design of the support arm system to suit your application.
