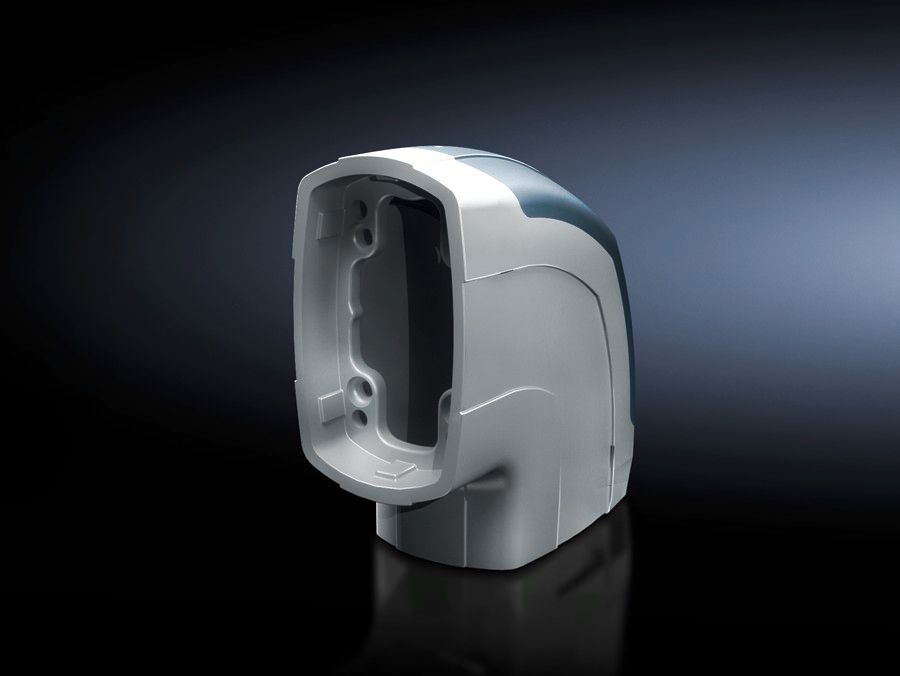

Rittal 6218600 Angle Piece
Image Disclaimers Message
Rittal 6218600 Angle Piece
Rittal 6218600 Angle Piece
Part #:6218600
SKU #: 2278939
Key Features
Part #:6218600
SKU #: 2278939
Brand: Rittal
Size: 242 mm L x 90 mm W x 160 mm H
Suitable For Use With: Model CP 180/120 Enclosure Section CP 180 Wall Section of Support Arm System
Type: 90 deg Rigid Screw Mount
Color: Pale Gray
Material: Cast Aluminum
- To connect horizontal and vertical support arm components
- Removable cover for easy cable routing
- Used with static loads ranging from 400 to 1800 N
- Endless possibilities for combination with a broad diversity of functions
- Reliable cable protection in all applications
- Perfect planning tool for fast, safe design of the support arm system to suit your application
- Cast aluminum angle piece, plastic cover
- Pale gray (RAL 7035) angle piece, graphite gray (RAL 7024) cover
Rittal 6218600 Angle Piece
Rittal Angle Piece, 90 deg Rigid Screw Mount, 242 mm L x 90 mm W x 160 mm H, For Use With: Model CP 180/120 Enclosure Section CP 180 Wall Section of Support Arm System, Cast Aluminum, Pale Gray
Additional Description: RTL -6218600 CP 180 90 DEGREE ELBOW RAL 7035
Catalog Description: Angle piece 90 deg CP 180, material: Angle piece: Cast aluminium, Cover: Plastic, color: Angle piece: RAL 7035, Cover: RAL 7024, supply includes: Seals, Adjusting screws, Self-tapping screws for support section attachment, description: For connecting horizontal and vertical support arm components. Removable covers for simple cable entry., produkt group: Used with static loads ranging from 400 to 1800 N. Endless possibilities for combination, with a broad diversity of functions. Reliable cable protection in all applications. Perfect planning tool for fast, safe design of the support arm system to suit your application.
