Brand: Rittal

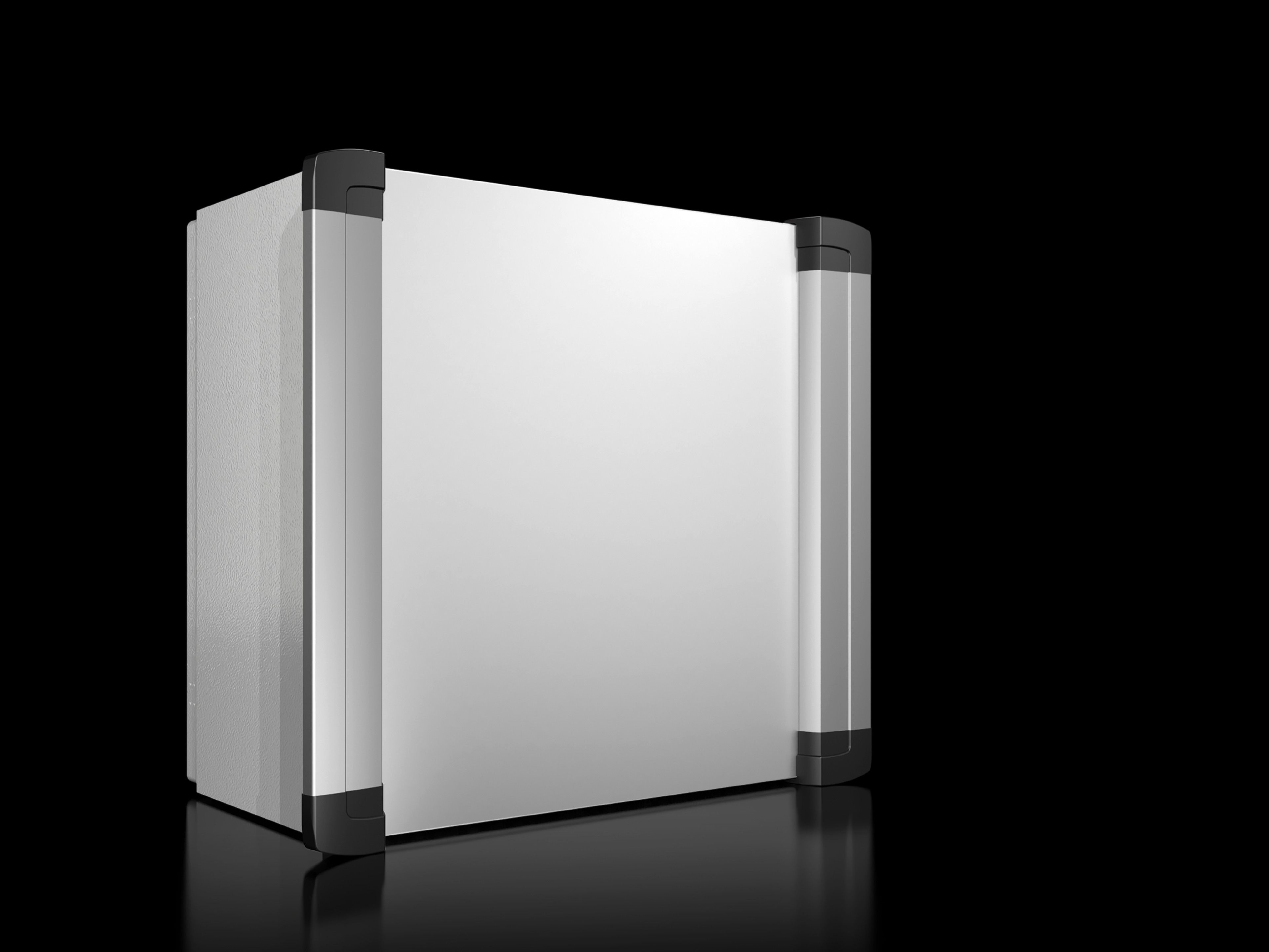

Rittal 6320350 AX Series Compact Enclosure
Image Disclaimers Message
Brand: Rittal
Rittal 6320350 AX Series Compact Enclosure
Brand: Rittal
Rittal 6320350 AX Series Compact Enclosure
Part #:6320350
SKU #: 2385643
$552.18/EA
Key Features
Part #:6320350
SKU #: 2385643
Brand: Rittal
Finish: Dipcoat Primed/Powder Coated/Textured Paint
Insulation: Foamed-In PU Seal
NEMA Rating: NEMA 1/12
Panel Size: 3 mm
Series: AX Series
$552.18/EA
Only 4 left in stock order soon
Ships in 1 Business Day
- Operating housing with handle strips based on sheet steel AX with support arm cut-out Ø 130 mm to fit support arm system CP 60/120/180, service access from the front, aluminium front panel easily removable for machining, protection category IP55
- Aluminium front panel
- Plastic cover caps
- Natural anodised handle strip
- Natural anodised front panel
Specifications
Brand: Rittal
Finish: Dipcoat Primed/Powder Coated/Textured Paint
Insulation: Foamed-In PU Seal
NEMA Rating: NEMA 1/12
Panel Size: 3 mm
Series: AX Series
Type: Compact
Color: Light gray
Country of origin: DE
Depth: 210 mm
Height: 380 mm
Material: Sheet Steel
Width: 380 mm
Manufacturer Name: Rittal
UNSPSC: 39121325
UPC: 04028177923164
Rittal 6320350 AX Series Compact Enclosure
Additional Description: RTL -6320350 AX OPERATING HOUSING W-HANDLE STRIPS REAR, 380H X 380W X 210D W-HANDLE STRIPS MOUNTING PANEL (BACK PLATE) IS NOT INCLUDED
Item FeaturesEnclosure with cut-out and reinforcement, Front with maximum cut-out, Side handle strips, Integral interior installation bracket, Cam lock
Item Features
Item FeaturesGOST|UL Listed|cUL Listed
