Part Number # 7030040
SKU # 2453870
7030040
Rittal 7030040
Part Number # 7030040
SKU # 2453870
Rittal 7030040 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 7030040 |
| SKU #: | 2453870 |
| Amperage Rating: | 1 A |
| Dimensions: | 1.6 in H x 5.4 in W x 5.2 in D |
| Enclosure Type: | IP30 |
| Series: | DK Series |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | Input/Output |
| Connection type: | RJ45 CAN Bus |
| Material: | Plastic |
| Manufacturer Name: | Rittal |
| UNSPSC: | 43222634 |
| UPC: | 00639889862487 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Rittal 7030040
Brand: Rittal
Part Number: 7030040

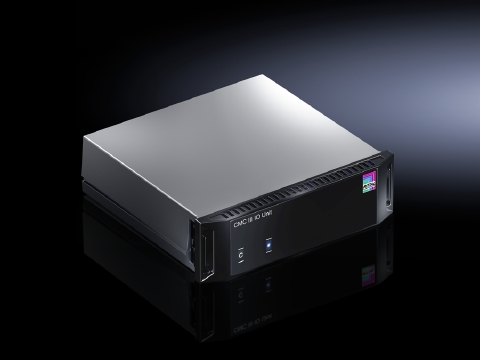

Rittal Processing Unit, Input/Output, Series: DK Series, 24 VDC, 1 A, 0 to 55 deg C, RJ45 CAN Bus Connection, IP30 Enclosure, Plastic, Jet Black/Light Gray, 1.6 in H x 5.4 in W x 5.2 in D Dimensions
Additional Description: RTL -7030040 (N) CMCIII I-O UNIT DIGITAL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DK CMC III I/O Unit, For signal receiving and passing on control commands, WHD: 138x40x132 mm, Monitoring: > 8 digital inputs, Control: > 4 Relais
7030040 Application
For CMC III control room system7030040 Includes
Operating Manual, Mounting Accessories for Mounting on Surfaces7030040 Item Features
- Fast connection and automatic detection via plug & play
- Minimal space requirements due to high concentration of inputs and outputs
- Light gray housing, jet black front
- (8) digital and (4) relay outputs
7030040 Standards
RoHS Compliant|UL File No. 60950-1|CSA C22.2 File No. 60950-1-07|EAC Certified|cUL ListedSKU #2453870Part Number #7030040UNSPSC43222634UPC00639889862487
Image provided may only be a representation of final product and may include optional equipment
