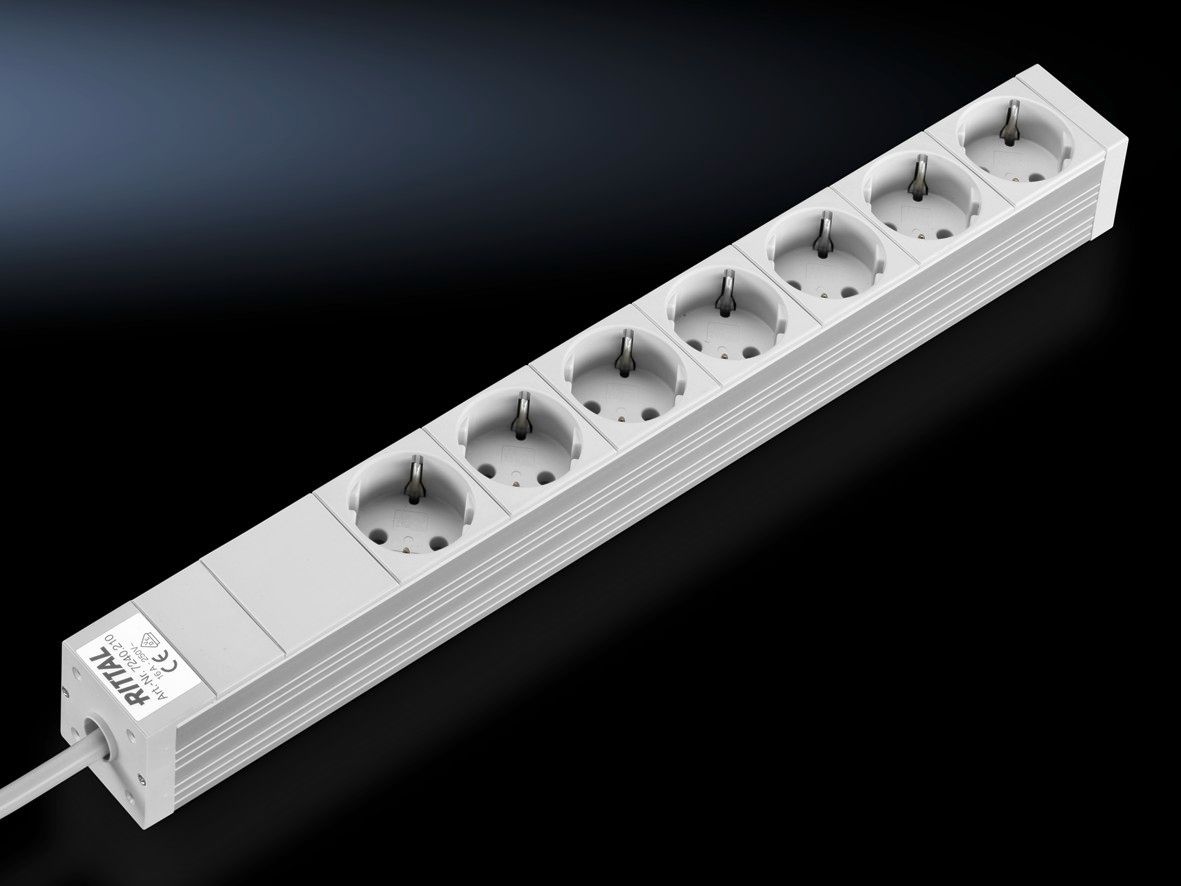

Rittal 7240210 Socket Strip
Part Number # 7240210
SKU # 2356198
$109.94 / Each
Typical price:$128.26 / Each
Rittal 7240210 Key Features
| Brand: | Rittal |
|---|---|
| Part Number # : | 7240210 |
| SKU #: | 2356198 |
| Amperage Rating: | 16, 16 A |
| Cord Length: | 2, 2 m |
| Dimensions: | 482.6 mm L x 44 mm H x 44 mm D |
| Series: | DK Series |
| Country of origin: | CA |
| Housing material: | Aluminum |
| Manufacturer Name: | Rittal |
| UNSPSC: | 83101808 |
| UPC: | 00063988932841 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$109.94 / Each
Typical price:$128.26 / Each
Quantity:
- Rittal Socket Strip, Series: DK Series, 230 V AC, 16 A, 2 m Cord, Aluminum Housing, 482.6 mm L x 44 mm H x 44 mm D
7240210 Includes
Socket strip, (2) Mounting Brackets, Assembly parts7240210 Item Features
- The socket strips are available in various country-specific variants with different functional elements
- Special attention has been devoted to practical, universal fastening variable attachment facilities have been created with an angle bracket which may be inserted in four positions
- Without additional mounting accessories, the socket strip may be inserted into all sections with a 25 mm hole pattern, this makes selection much easier, as well as providing additional flexibility and saving on warehousing
- Provision has also been made for cable routing of the infeed and when mounting in the 482.6 mm section there is adequate space to route the infeed between the socket strip and the profile rail without kinks
- The arrangement of the IEC 320 sockets at a 45 deg angle allows unrestricted use of angular connectors
- Depending on the application, we recommend use of a charging current reserve to prevent incorrect activation due to starting-current spikes
- Variable attachment distance within a range of 25 mm, the distance given is hole centre, hole centre of mounting bracket
- Aluminum section, natural anodized material
- Polycarbonate socket insert
- 452.5 mm mounting dimensions with +/- 25 mm tolerance
- Wire end ferrules electrical connection
- 7-sockets, D, earthling-pin (type F, CEE 7/3) jack/socket, gray socket
- H05VV-F3G1.5 connection cable
7240210 Standards
DIN 49 440-1SKU #2356198Part Number #7240210UNSPSC83101808UPC00063988932841
