- 482.6 mm profiles holes at the front, hole center to center spacing 465 mm, rear 470 mm
- The mounting level can be positioned in the 50 mm hole pattern
- Minimum clearance between levels 150 mm, maximum clearance between levels 350 mm
- RAL 7035 light gray profile frame, RAL 5018 turquoise blue trim panel color
- 2 mm carbon steel, 40 U height units
- 19 in W installation
Specifications
Brand: Rittal
Series: DK Series
Suitable For Use With: Data Rack
Color: Light gray
Height: 40U
Material: Carbon Steel
UNSPSC: 31162502
UPC: 00639889127159

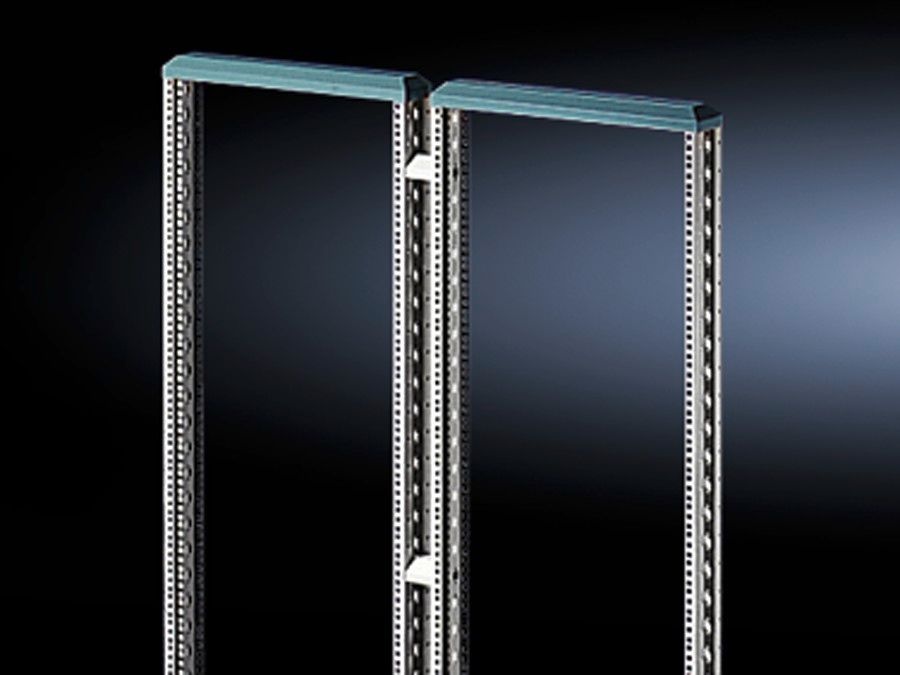

Rittal 7298000 Second Mounting Level
Rittal Second Mounting Level, Series: DK Series, 40U Height, For Use With: Data Rack, Carbon Steel, Light Gray
Additional Description: RTL -7298000 (N) 40U VERTICAL MTG FRAME FOR DATA RACK RAL7035 & 5018 RACK NON-CANCELABLE, NON-RETURNABLE DATA RACK
Catalog Description: Second pair of mounting angles, material: Sheet steel, 2 mm, color: RAL 7035, supply includes: Torsionally stiff profile frame, Mounting accessories, description: To accommodate 482.6 mm network components or for the attachment of component shelves and slide rails.
Item Features
Resources
