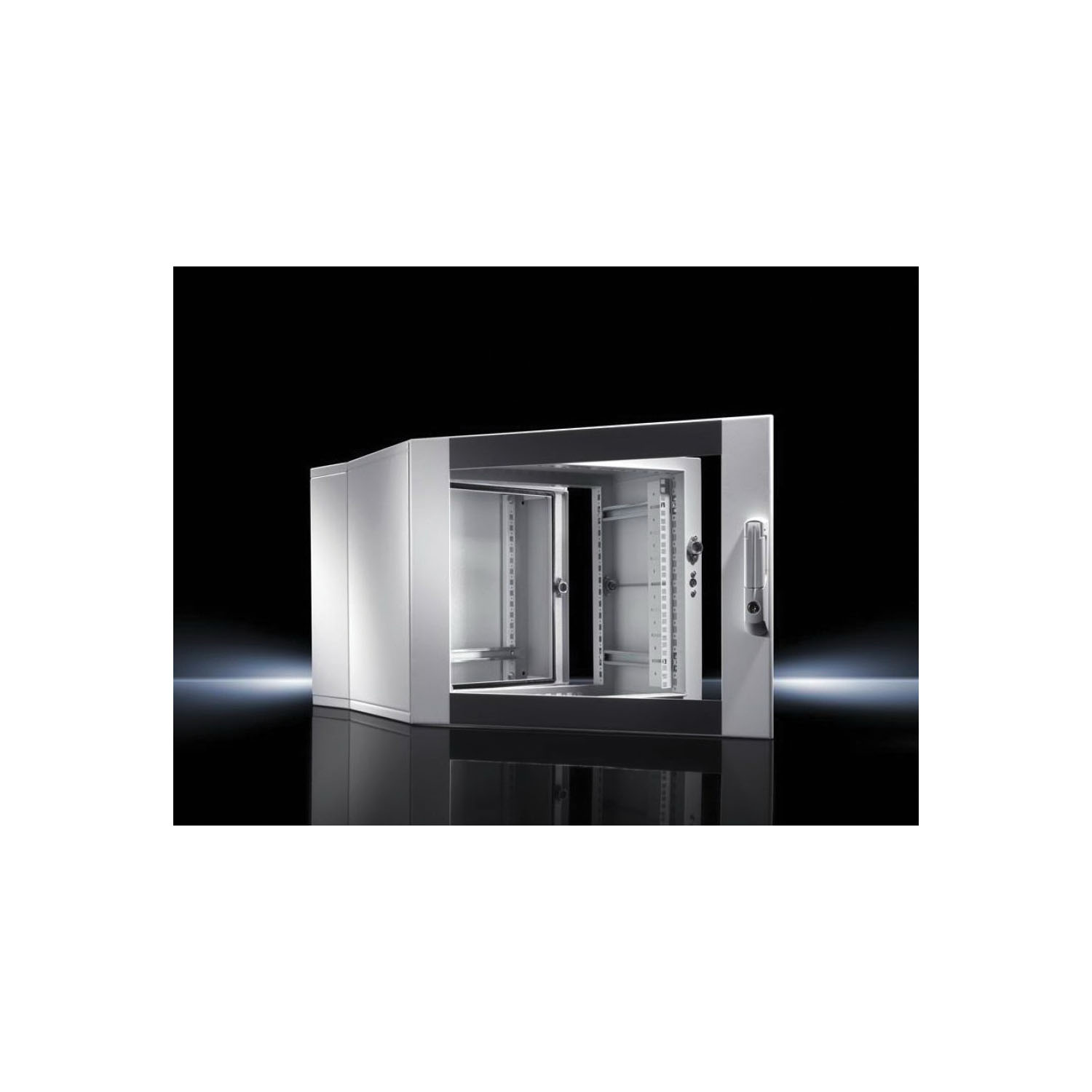

Rittal 7706135 Electrical General Purpose Enclosure
Rittal 7706135 Electrical General Purpose Enclosure
Part #:7706135
SKU #: 2252182
Key Features
Part #:7706135
SKU #: 2252182
Brand: Rittal
Capacity: 300 N
Finish: Powder Coated
NEMA Rating: NEMA IP55
Series: EL Series
Color: Slate Gray
- Wall mounted enclosure with hinged door provides optimum accessibility
- 1.5 mm carbon steel wall and hinged material
- 3 mm single-pane safety glass viewing window
- RAL 7035 wall and hinged, RAL 7035/7015 slate gray viewing door color
- Vertical mounting rails and horizontal C-profile rails for cable clamping
- Hinged part with 25 mm pitch pattern in the front and rear frame
- Two fully depth adjustable 19 in profile angles at the front
- 12 in D hinged
- 17 in D installation
- 11 in H x 20 in W clearances
- 5.3 in depth wall section
Rittal 7706135 Electrical General Purpose Enclosure
Rittal Enclosure, Series: EL Series, 14 in Length, 24 in Width, 19 in Depth, NEMA IP55, Hinged Cover, 300 N, Wall Mount, Carbon Steel, Powder Coated, Slate Gray
Additional Description: RTL -7706135 (N) 6U 0345H0600W0472D 3 PART EL W/NEW DESIGN DOOR PART EL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Wall-mounted enclosures EL, 3-part, with punched rails and mounting angles, depth-variable, with punched rails and mounting angles, depth-variable, material: Wall and hinged part: Sheet steel, 1.5 mm, Viewing window: Single-pane safety glass, 3 mm, surface: Powder-coated, color: Wall and hinged part: RAL 7035, Glazed door: RAL 7035/7015 (slate grey), supply includes: Wall section, Hinged part with 25 mm pitch pattern of holes in the front and rear frame, Designer glazed door, description: Wall-mounted enclosure 3-part, pre-configured with: Solid gland plate, top and bottom, punched rails, C rails, wall mounting bracket. Protection category IP 55.
